Automatic High-Speed Cantilever Type Single Stranding Machine for Wire and Cable

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Mould Life：>1,000,000 Shots

Base Info

  • Model NO.：XJ630
  • Type：High-speed Stranding Machine
  • Voltage：220-660V or Other Voltage
  • Wire Specification：0.6-3mm
  • Transport Package：Standard Shipping Packing
  • Specification：XJ630
  • Trademark：NEWTOPP
  • Origin：China
  • HS Code：8479400000
  • Production Capacity：10 Sets,Month

Description

Basic Info.

Model NO. XJ630 Type High-speed Stranding Machine Voltage 220-660V or Other Voltage Wire Specification 0.6-3mm Transport Package Standard Shipping Packing Specification XJ630 Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 10 Sets/Month

Product Description

Application field:

Used for power wire,high frequency wire,signal line,coaxial line,data wire multi group twisting.


Products feature:

1.High technology: This machine adopt Taiwan technology to improve the design and manufacture process.Which has the low noise,low loss,stable performance,easy operation characteristic.
2.Top quality components: pneumatic and oil pressure brakes,electrical elements,screw etc. Core components from Japan/Taiwan
3.High output High rotated speed,the production efficiency is 2 times than tradition type.
4.Steady tension:Wrapping and take up tension keep constant from start to end.
5.Pitch accurately:Set pitch on touch screen,PLC control,Pitch is steady while it's normal or accelerate and decelerate.
6.Traversing:Adopted axis-row type,traversing space and distance can be set freely.
7.Latest cantilever standing machine with capstan:better pitch,better quality.
Automatic High-Speed Cantilever Type Single Stranding Machine for Wire and Cable

Machine parts:

1.Pay-off stand(active/passive type can choose)
2.Host machine
3.Assembled eye frame
4.Central wrapping machine
5.Electrical control cabinet

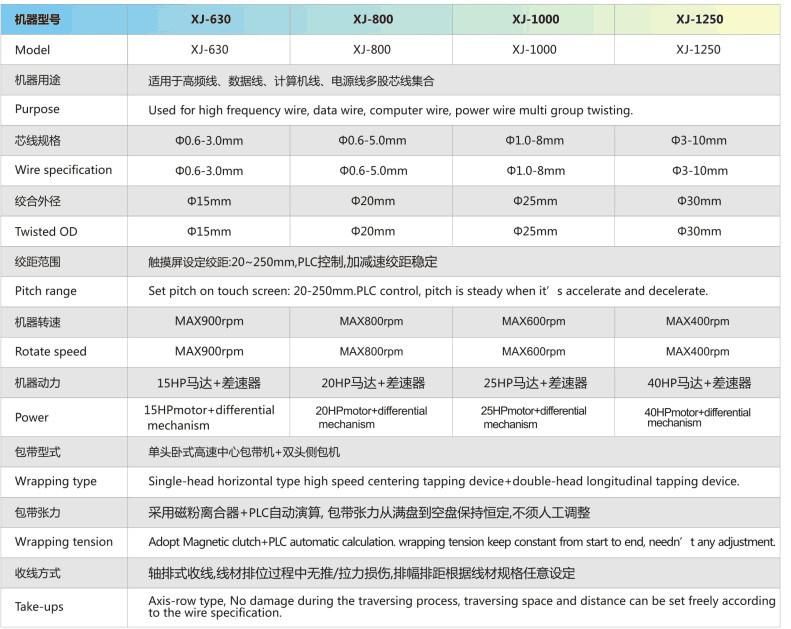

Technical parameters

Automatic High-Speed Cantilever Type Single Stranding Machine for Wire and Cable

Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us

Automatic High-Speed Cantilever Type Single Stranding Machine for Wire and Cable
Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
