• Model NO.：CZDL2-160-190
• Max Insulation Paper Thickness：0.35mm
• Input：380V,50Hz
• Dimension：1200mm X650mm X1200mm
• Weight：Around 250kg
• Transport Package：Pallet
• Specification：ISO9001
• Trademark：NIDE
• Origin：China
• Production Capacity：50sets,Year

Stator I.D20~90mmMax stator O.D135mmStator stack length20mm~90mmHeight of edge folded(cuff)2~4mmMax insulation paper thickness0.35mmFeeding length12~45mmTack time0.5S/slotPower750WInput380V/50/60HZMachine productivityaround 1500pcs/8hoursDimension1100mm × 650mm × 1000mmWeight≈ 400kg
Machine main function and characteristic:
l. The cutting edge of insulation paper should be neat, no damage, and free of burr. The stator should not be deformation and stator lamination should not be upward resulting from paper inserting.
2. The whole set of tooling can be changed, and it takes about 30min.
3. Machine will stop automatically when paper jams.
4. With a text displayer, this machine can display and set all different models' parameter.
5. Primary qualification rate ≥99%, after rework, the rate ≥99.9%
6. Production capacity ≤1s/slot (exclude the loading/unloading time)
7. Paper width: stator stack length+14mm, edge folded: according to customer's requirement.
8. Operator needs to stand while operating. This machine adopts single hand system button.
9. This machine is suitable for Polyester Film insulation paper roll material with thickness 0.25mm and fixed width(width is decided by customer)

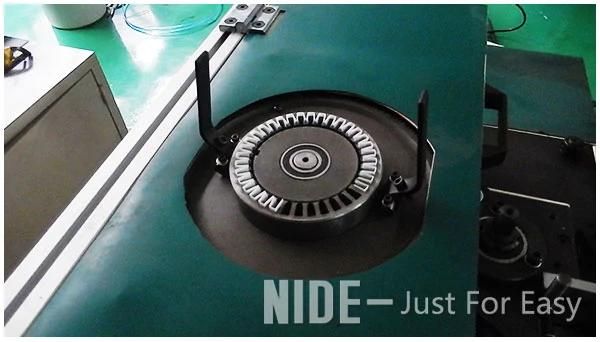

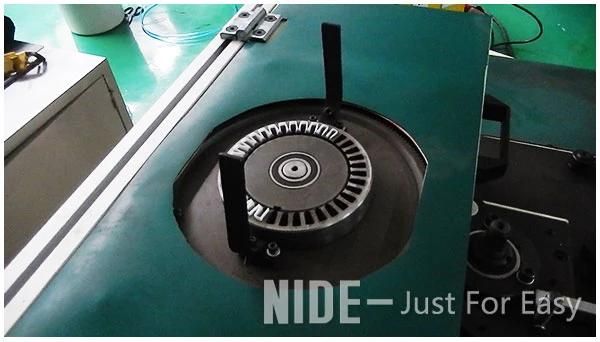

Operation is simple, load empty stator manually, press start button, then it will index and insert paper automatically, then unload finished stator manually, this is the process of finishing one cycle.

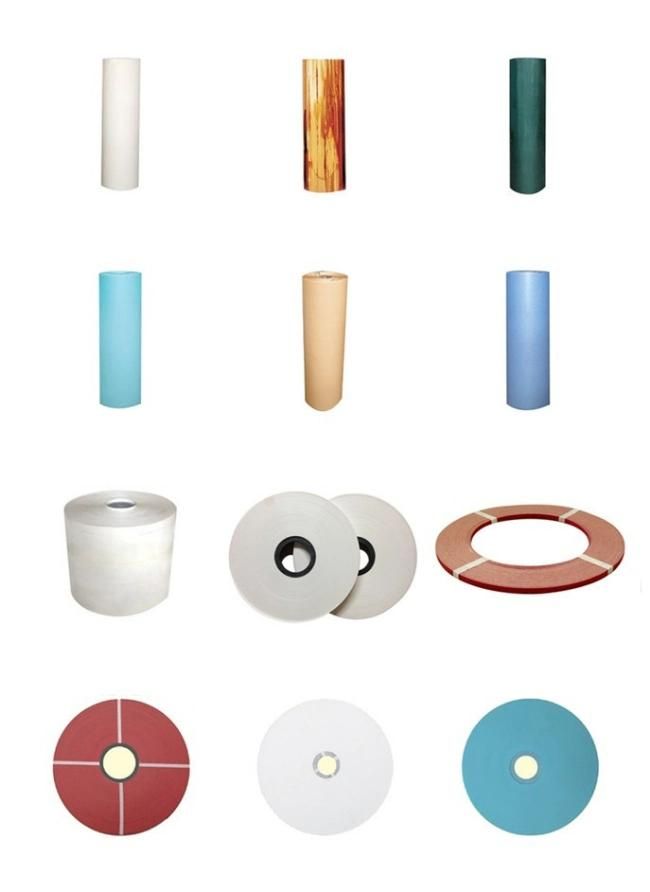

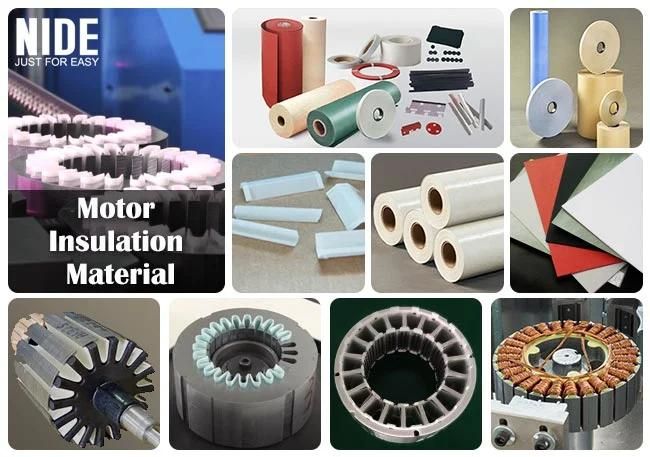

We can produce different dimensions of insulation material as per customer's requirement.There are different insulation material, DMD B/F class, Red Polyester film,Class E, Red Vulcanized Fiber, Class A.





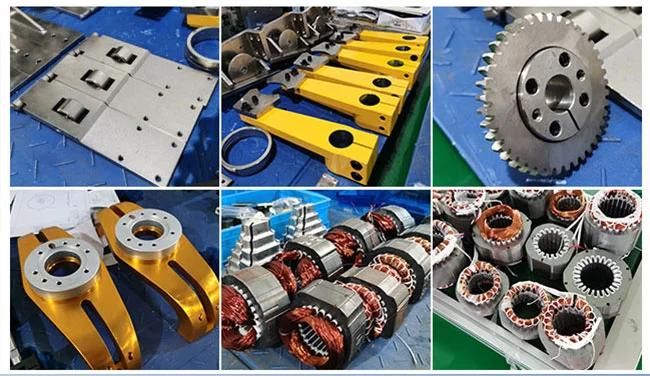

Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas
