• Model NO.：SUNY-ZTM400
• Working Power：AC220V,50Hz 1800W
• Net Weight：50kg
• Overall Dimension：Length 800mm×width 400mm×height 813mm
• Transport Package：Standard Export Package
• Trademark：SUNY
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SUNY-ZTM400 Working Power AC220V/50Hz 1800W Net Weight 50kg Overall Dimension Length 800mm×width 400mm×height 813mm Transport Package Standard Export Package Trademark SUNY Origin Hunan China Production Capacity 500PCS/Month

Product Description

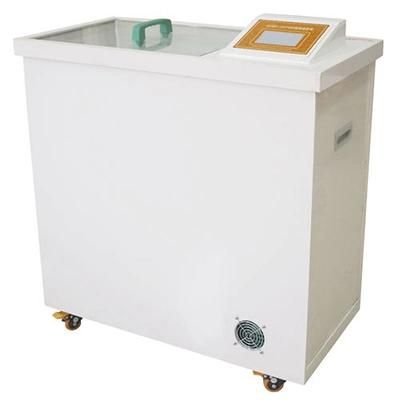

Item: Spray stripping machine for PCB,PCB stripping machine
Model: SUNY-ZTM400

Changsha Suny Electronic Technology Co.,Limited is a Professional manufacturer of the PCB production field. We have the factory in changsha of hunan, we can provide the:

PCB cutting machine
PCB  CNC drilling and milling machine
Circuit board buffing machine
Through-hole machine
Screen printing machine
Laser printer
Film laminator
Spray imaging machine
Spray etching machine
Spray stripping machine
Tin-sinking machine
Pick and place machine
Reflow Oven

SUNY with more than 10 years experienced engineer team,we can povide the professional  technical support as well as the overseas installation and training.

SUNY can provide all the related consumables and raw materials for the PCB machines and the PCB production line.

SUNY with the professional showing room in china, we provide the free installation and training service in china.

Our PCB making machine video:https://sunyinstrument.en.made-in-china.com

Specification:

1. Usage: realizing stripping process of the circuit board processing through high pressure spraying;
2. Function characteristics: opening-cover detection function to better protect the operator not splashed by liquid; low liquid alarm function, preventing dry heating function, automatic constant temperature function, automatic regular alarm function;
3. Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition stripping process manual; In touch screen you can play the circuit board design sketch after stripping process;
4. Maximum stripping size: 400mm×300mm double-sided board;
5. Process mode: hanging double-sided spraying film taking-off;
6. Stripping time: 5S~99M59S adjustable;
7. Stripping temperature: room temperature~55°C adjustable;
8. Heating tube: 800W*2, titanium heating tube;
9. Spray motor: 150W complete anticorrosive isolation pump;
10. ★Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service;
11. Dosage of stripping liquid: 40L (standard);
12. Working power: AC220V/50Hz  1800W;
13. Overall dimension: length 800mm×width 400mm×height 813mm;
14. Net weight: 50KG.
