High Speed Stranding Machine for Twisting Bunching Charging Piles Cables
Dongguan Sino Star Machinery Co., Ltd.- After-sales Service：Available
- Driven Type：Electric
- Condition：New
- Certification：RoHS, ISO, CE
- Warranty：24 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：SS-LNST-1250
- Mould Life：>1,000,000 Shots
- Type：Single Stranding Machine
- Motor Brand：Siemens
- Inverter Brand：Inovance
- PLC：Siemens
- Touch Screen：Siemens
- Low-Voltage Electrical Parts：Scheinder
- Bearing：SKF or NSK
- Painting：Customzied
- Transport Package：Wooden Cases
- Specification：L5200*W2300*H2500
- Trademark：SINO STAR
- Origin：Dongguan, China.
- HS Code：8479400000
- Production Capacity：160 Sets,Year
Description
Electric screw lifting
6. Composition of the new type single stranding machine line
1. Meter-counting stand -------------------------------- 1 Unit
2. Eyelet assembly stand---------------------------------1 Unit
3. Central tapping unit-----------------------------------1 Unit
4. 1250mm single stranding machine -----------------1 Unit
5. PLC electrical control system-----------------------1 Unit
6. Motoried payoff---------------------------------------8 Units
7. Electric control cabinet introduction
1.This equipment is controlled by PLC + touch screen so as to achieve the goal of high integration, high automation and man-machine exchange.
2. The pitch can be set stepless within the pitch range.
3. Stranding direction and taping direction can be chosen arbitrarily.
4. Taping can be inch-moving and interlock-moving. When the switch is in OFF state namely inch-moving, it can start and set speed independently. When the switch is in ON state namely interlock-moving, at this time single twisting machine and taping unit will start automatically.
5. Alarm function: when the equipment fails, it will automatically jump out the fault point under the screen, there are 2 kinds of alarm:
A: Rolling alarm: mobile alarm under the screen.
B: Historical alarm: this alarm can be saved when it occurs and can be viewed when repairing.
6. This equipment is equipped with many protections such as door limit, bobbin in place detection, platform lifting position detection, disconnection detection and so on one complete set of protection detection device to ensure that the machine can work steadily and normally.
7. This equipment has the function of length predicting and decelerating. When the actual length reaches the pre-set length, the machine will slow down to stop automatically.
8. Meter correction: it can make the meters more accurate after being stranded.
9. Clamping wire function: automatically clamping wire after the machine stops for avoiding the influence of pay-off tension when replacing bobbins that makes the wire backward, in this case it can guarantee the taping effect and pitch.
10. When the taping unit is magnetic powder tension, it can track the taping tension linearly.
11. Power system: 3 phase 5 line system, 380V(±10%) 50HZ

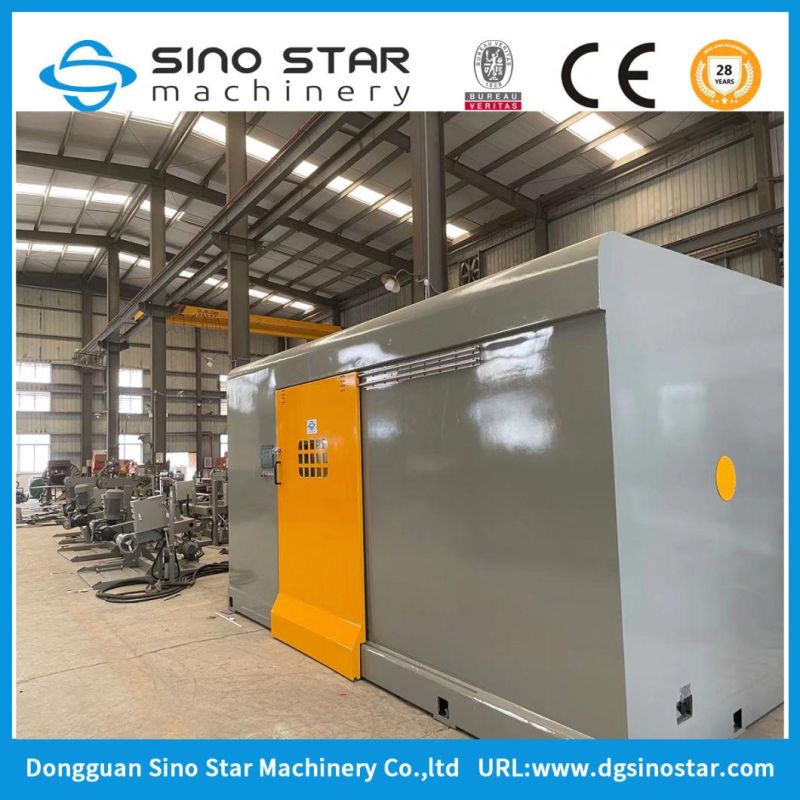

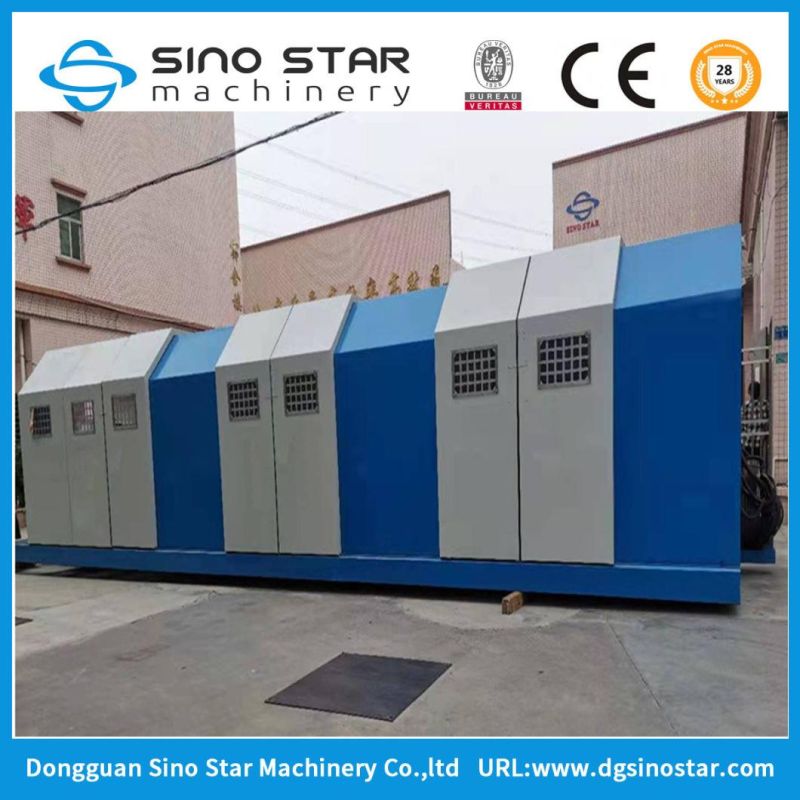

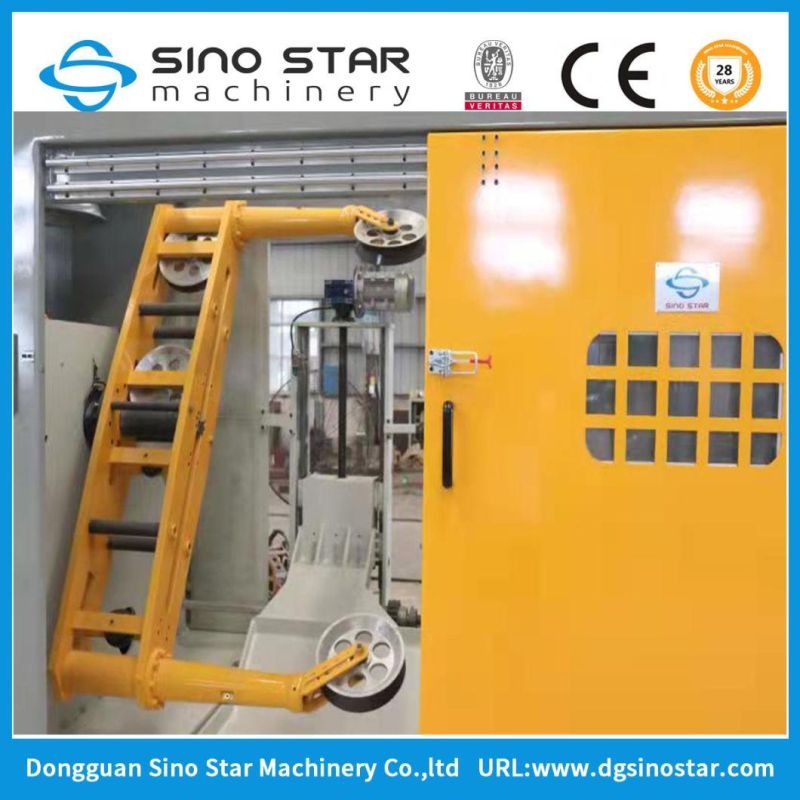

The photos of NEW TYPE single twisting machine with built-in capsta are listed out below for your reference.

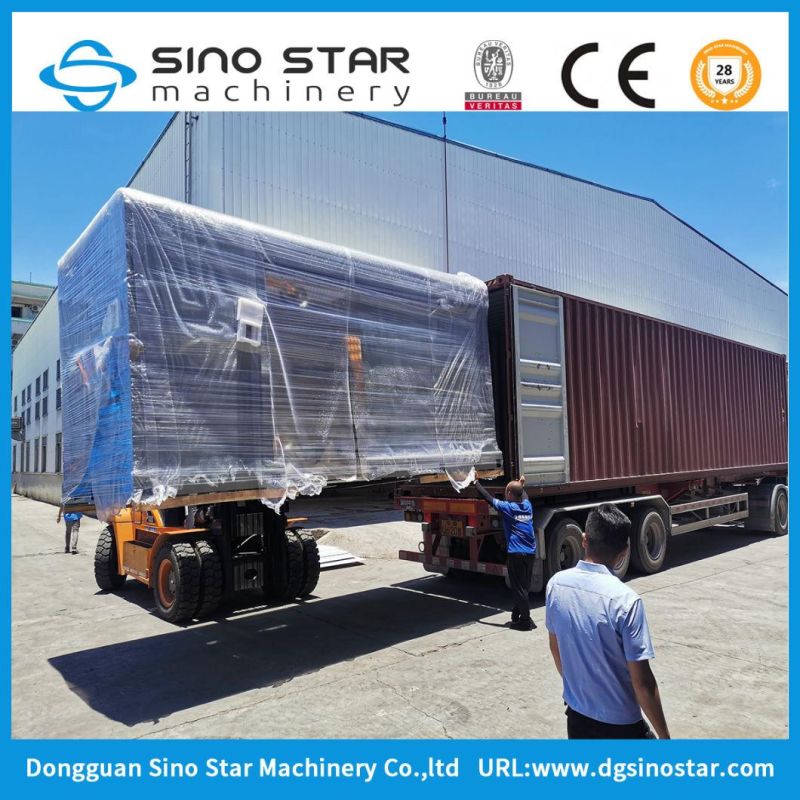

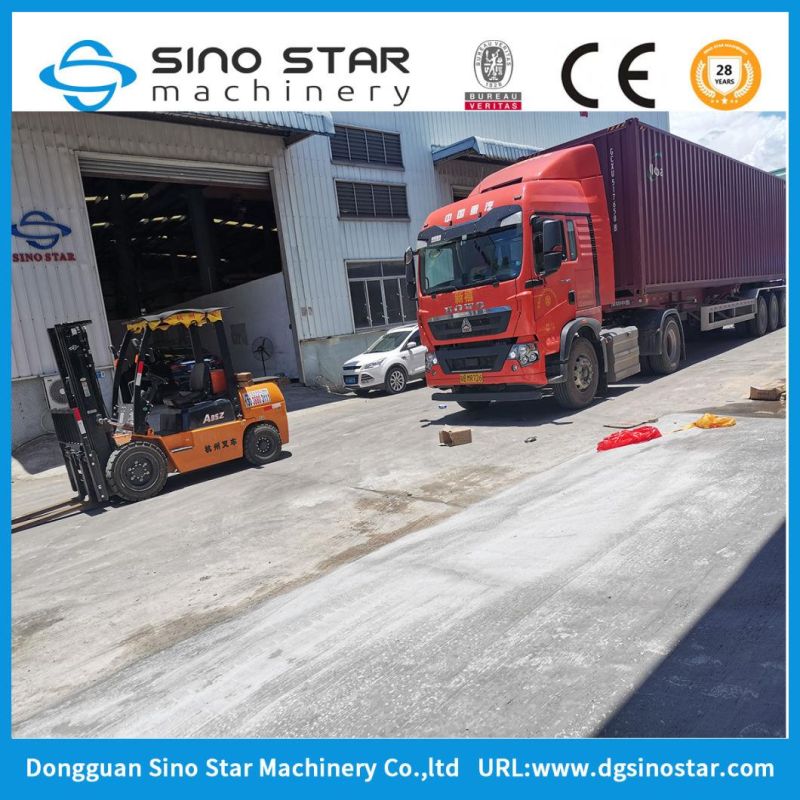

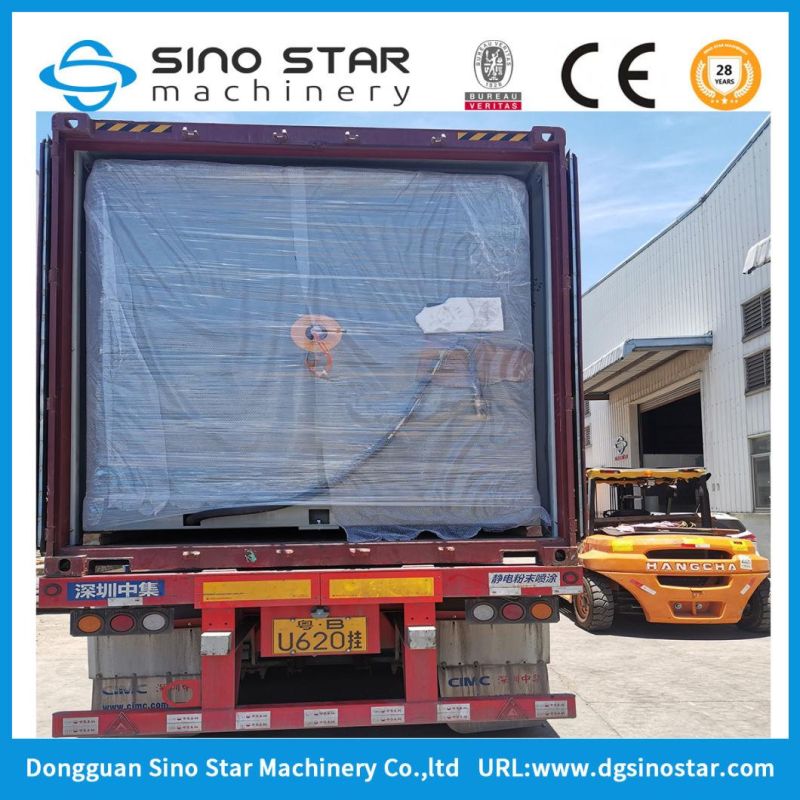

PACKAGE AND SHIPPING:
Nomally we use wooden cases or PFfilm to pack our machines as required to guarantee that our machines won't been damaged in the course of long-disance sea transportation.
Our Service
Pre-sales service including:
- Analyse customer's inquiry and reply to customer within 12 hours after receiving the inquiry from customer.
- Communicate with customer and help customer to choose the well-suitable machines for customer.
- Sending drawings to customer for confirmation to make all is clear before placing order with us.
- Prepare the final proposal for customers
- Invite customer to visit our factory or we can visit our customer's factory to held a face-to-face meeting if possible
After-Sales Service
- Training customer's workers how to install, operate and maintain our machines
- Engineers available to provide overseas maintenance service for all our machines working abroad.
Customers Q&A:
A1: Are you the manufacturer or trading company ?

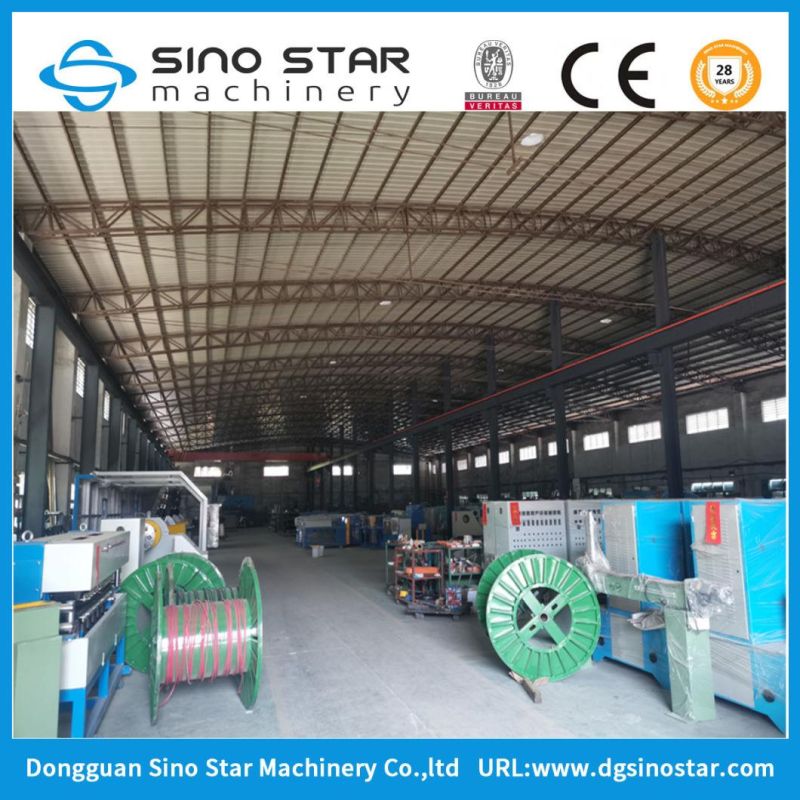

Q1: We are the factory with 3 big workshops covering 6000 s.q.m; Warmly welcome you to visit our factory and conduct our work.
A2: What's your factory's advantage over other manufacturers in the same industry ?
Q2 - High output capacity will guarantee your high-efficient production

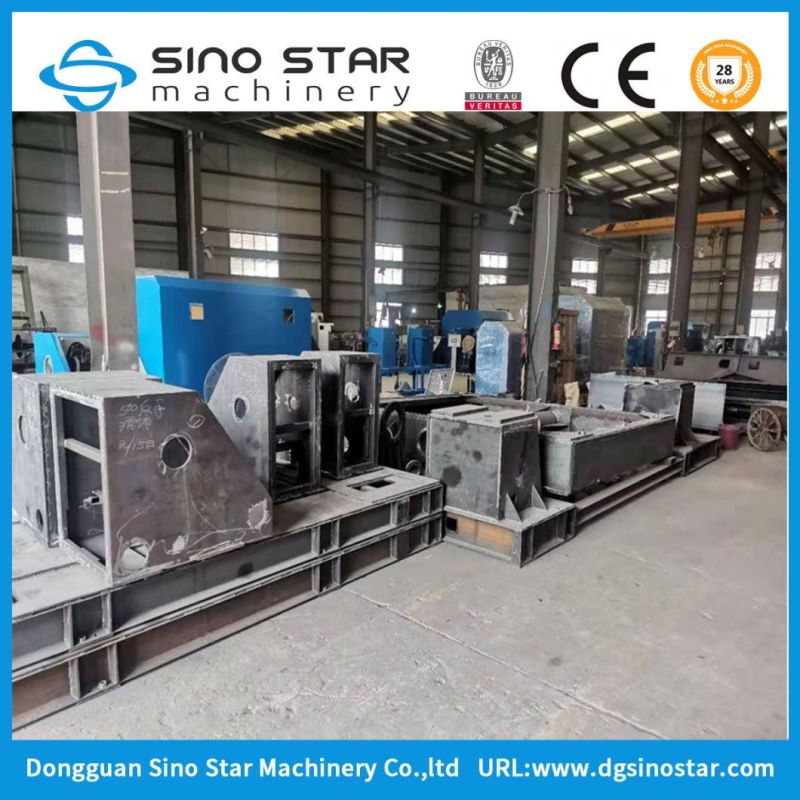

- We are very good at engineering; In order to make our machine have a very excellent performance; we are rigorously attaching importance to each detail in the course of manufacturing in a bid to improve our machines continuously.
- We only mount electrical components under famous brands like Siemens,Yaskawa, Scheinder
and Omron on our machines to guarantee the quality of our machines.
- Our engineers and workers can work abroad; if you need us to assist you installing and testing
the machines or training your staff how to operate and maintain our machines; we can send our team to your factory when our machines arrive at your factory.
- Guarantee period: We can guarantee two years for all our machines
- After-sales service: We promise to provide permanent technical support and after-sales service with our customers.
A3: Why do we trust your company ?

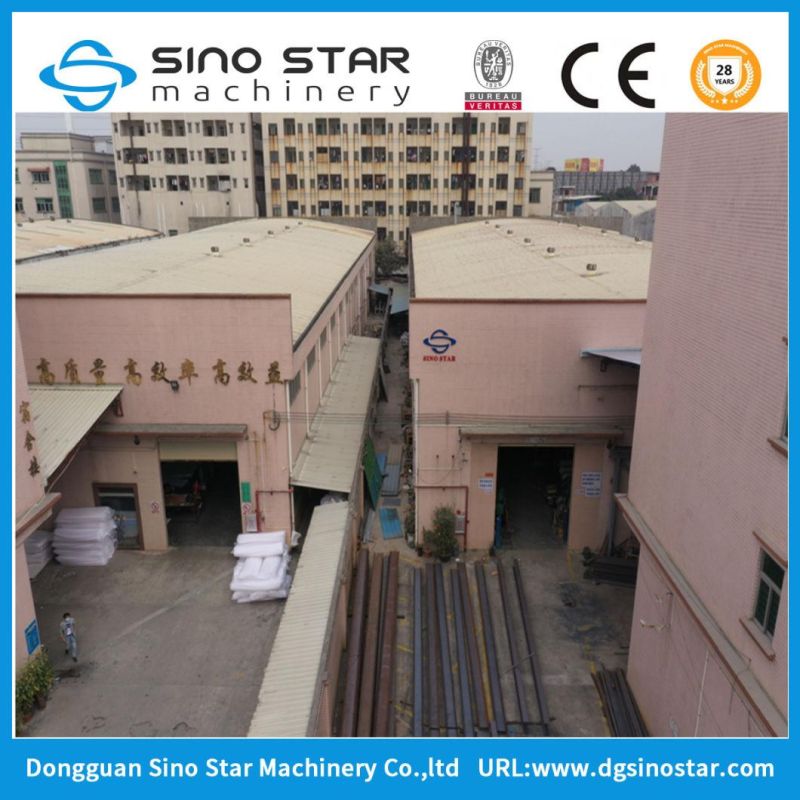

Q3: We have been engaging into cable machinery industry for over 30 years and have agent in Europe since 2007. Up to now we have exported our machines to many countries.
A4: Where is your factory ? How can we visit you ?
Q4: Our factory is located in Dongguan, Guangdong Province, China, very close to Shenzhen and Guangzhou. You can pick you up at Humen railway station (you can take high-speed train from Guangzhou South Railway sation or Shenzhen North station, it takes you only 10 minutes by high speed train to reach Humen Railway station)
We are sincere to long for working together with customers from all around the world. Warmly invite you visit our fatory DONGGUAN SINO STAR MACHINERY CO.,LTD at your convenient time !
