• Model NO.：XJ-300
• Specification：XJ-300
• Trademark：Newtopp
• Origin：China
• HS Code：8479400000
• Production Capacity：120 Set,Year

Basic Info.

Model NO. XJ-300 Specification XJ-300 Trademark Newtopp Origin China HS Code 8479400000 Production Capacity 120 Set/Year

Product Description

Application field:

It's used in USB3.1(Coaxial structure) se ries coaxial winding wrapping process,used to coaxial wire back twist,high speed winding,double layer wrapping etc. finished at a time.



Machine  technical parameter:
 1.Machine Usage:Apply to single coaxial wire and similiar wire winding wrapping.2.Wire specification:AWG28-AWG38(0.3-0.1mm)3.Shaft-mounted(pieces) Aluminum foil tape,mylar tape, transparent tape,mica tape etc.4.Rotate speed:Max2000rpm5.Power:Whole set servo motor with servo controller,wrapping plate is linkage with capastan motor.6.Wrapping tension:Wrapping tension automatically calculation and tracking,kep constant from start to end,no need adjustment.7.Heating device:Auto flexible type,Omron temperature control,temperature controlled within ±1ºC8.Take-up tension:Axis-row type take up,no damage during traversing,distance can be set freely according to the wire specification.9.Pay-off type:Back twist pay-off type,back twist rate 0%-100% no class adjustment.10.Winding spindle:56 heads(according to practical situation)11.Winding pay-off tension;Inding pay-off tension is equality and no need adjust separately12.Pay-off/take-up bobbin:Pay-off 200MM Take-up 300MM



Machine parts:


No.	Parts name&Specs.	Qty
1	ø200-300mm singal head active pay-off	1set
2	8 heads active winding machine	1set
3	ø100*30*100mm shaft-mounted center aluminum foil tape wrapping machine	1set
4	ø100*30*100mm shaft-mounted center mylar foil tape wrapping machine	1set
5	Ø300mm Axis row-type take up	1set
6	High frequency spark machine	1set
7	Air blast type heat fusion heater	1set
8	ø160mm capstan	1set
9	Electrical control cabinet	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.


About us

Company introduction



Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.


Our products

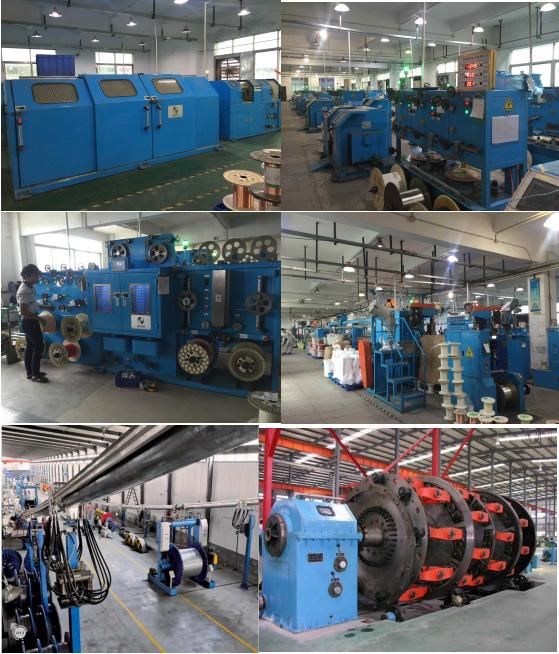

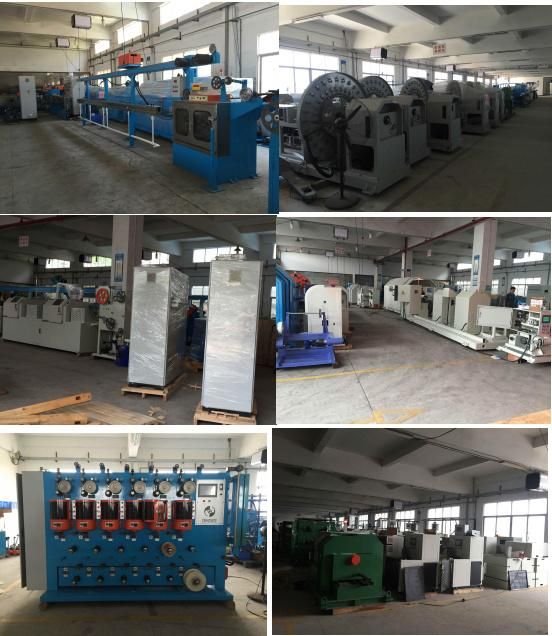

Products in client site
