• Model NO.：YH-102A
• Model：Yh-102A
• Cutting Length：1-9999mm
• Max. Cutting Width：100mm
• Cutting Speed：100-120 PCS,Min
• Weight：26kg
• Voltage：110V,220V 50Hz,60Hz
• Rated Power：0.5kw
• Max.Temperature of Cutter：350ºC
• Packing Size：450*350*350mm
• Transport Package：Double-Layer Export Carton
• Specification：390*350*255mm
• Origin：China
• HS Code：8479819000
• Production Capacity：L=100mm, 3000-7000PCS,H

Basic Info.

Model NO. YH-102A Model Yh-102A Cutting Length 1-9999mm Max. Cutting Width 100mm Cutting Speed 100-120 PCS/Min Weight 26kg Voltage 110V/220V 50Hz/60Hz Rated Power 0.5kw Max.Temperature of Cutter 350ºC Packing Size 450*350*350mm Transport Package Double-Layer Export Carton Specification 390*350*255mm Origin China HS Code 8479819000 Production Capacity L=100mm, 3000-7000PCS/H

Product Description

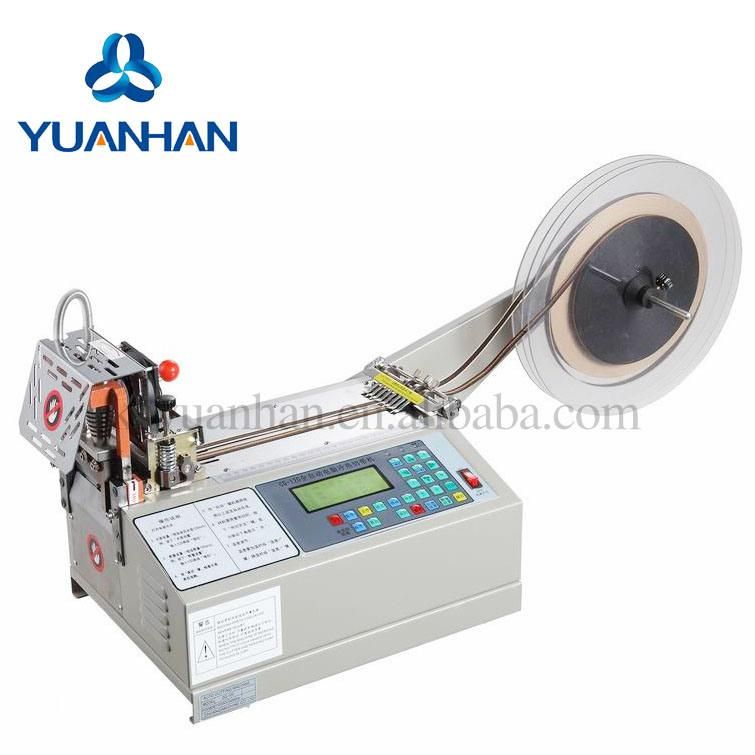

Affordable Belt/Webbing Cutting Machine (fusible type)

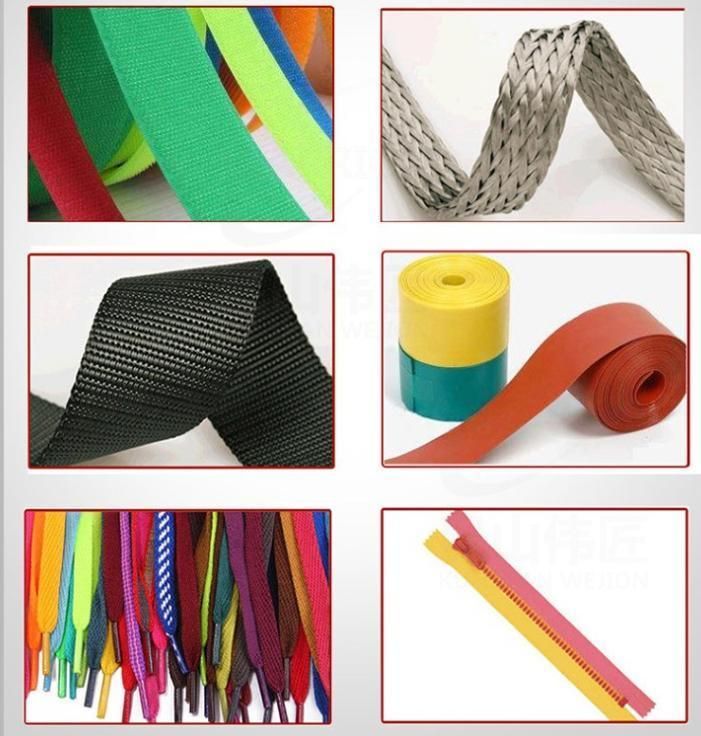

This affordable webbing/tape cutting machine is suitable for cutting hot cut belt, textile belt, webbing, nylon belt, seat belt, backpack belt, elastic band, threaded belt, etc. The cutting speed reaches 100-200 pieces/minute (50mm).

• This belt/webbing cutting machine is suitable for cutting hot cut belt, textile belt, webbing, nylon belt, seat belt, backpack belt, elastic band, threaded belt, etc.

• High speed: it can cut 100 to 120 pieces per minute (50mm length as an example)

• Cutting shape: rectangle and quadrangle (customizable)

• High precision: each cut is monitored by a stepper motor to ensure high accuracy for each operation.

• The cut surface is flat: the hot knife can heat the cut surface of colored ribbons and light textile tapes at high temperature, and the seals are smooth and free from burrs.

• The blade is made of imported high quality steel and has a long service life.

• Automatic operation: just set the cut length and quantity you need, and the machine will do the rest automatically.

• Automatic pause: once the material runs out, it will automatically stop working. The alarm automatically alarms.

• Memory function: before the switch is turned off, the cut-off length, quantity, and cut-off speed will be automatically stored.

• File Storage: 9 files can be stored for easy retrieval at any time, reducing setup time.

Specifications:


Model	WL-102A
Cutting length	1-9999mm
Cutting width	100mm
Cutting speed	100-120pcs/min
Weight	26kg
Voltage	110V/220V50/60HZ
Watt	0.5kw
Cutter	cold knife
Packing size	450*350*350mm





Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Any questions, please feel free to contact us! Thank you !
