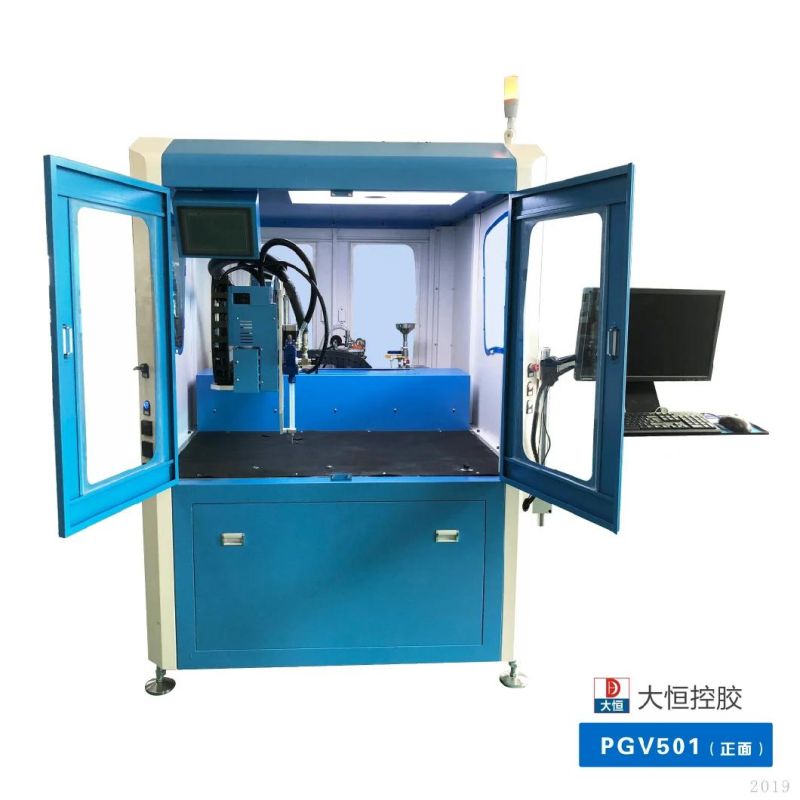

• Model NO.：PGV501
• Driven Type：Electric
• Mixing Method：Dynamic or Static
• Tank：10L, 25L, 40L Optional
• Cleaning Function：Yes
• Vacuum Function：Yes
• Heating Glue：Yes
• Pump：Gear, Screw, Dh Pump
• PLC：Panosinic
• Accuracy：1%
• Ab Ratio：1:1-10:1 Adjustable
• Gluing out Speed：5-66g,5s
• Transport Package：Wooden Packing
• Trademark：D&H
• Origin：China
• HS Code：8424899990
• Production Capacity：50PCS Per Month

Basic Info.

Model NO. PGV501 Driven Type Electric Mixing Method Dynamic or Static Tank 10L, 25L, 40L Optional Cleaning Function Yes Vacuum Function Yes Heating Glue Yes Pump Gear, Screw, Dh Pump PLC Panosinic Accuracy 1% Ab Ratio 1:1-10:1 Adjustable Gluing out Speed 5-66g/5s Transport Package Wooden Packing Trademark D&H Origin China HS Code 8424899990 Production Capacity 50PCS Per Month

Product Description

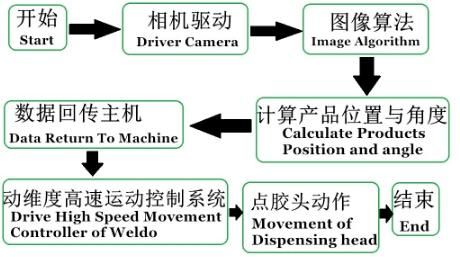

1) Function Princple

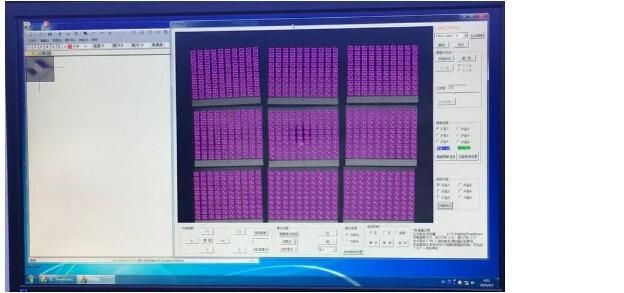

2) The role of Visual in dispensing technique:

a) Before dispensing , product can be located quickly and dispensing track shall be put into form automatically ;

(b) Dispensing dots shall be compared and measured to check the uniformity of shape ,dimension and color of the dots after dispesing .

(3) machine Charateristics:

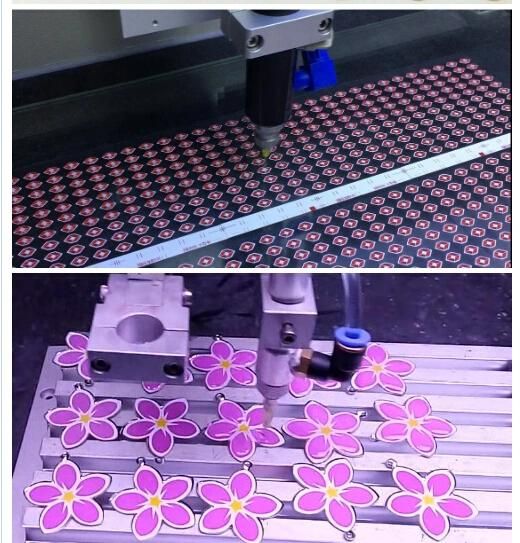

   (a) Angle free dispensing .Product can be placed on worktable at will without special tooling fixture involved .

     (b) Independent and fixed constant temperature system. Heating device are installed on dispensing head and plate to conduct special process such as hot dispensing with cold glue or cold dispensing with hot glue in cold season .

     (c) Loading and Moving mechanism on granite platform . This stone platform ensures great stability of movement and promotes movement precision without deformation .

    (d) Adjustable illuminant with full chromatography .Full chromatography illuminant can be adjusted independently and continuously , from which any visual light can be picked to promote visual recognition rate and accuracy of product.

  (e) Any Dispensing track can be set accordinly . Dispensing track on the screen can be pointed through mouse , avoiding compliance operations on demonstrator and shorten the time of product's introduction.

(4) Positionining



Ratio 1;1- 10:1 low ,medium ,thickness viscosity fluid liquid .

shot size: 0.1cc- 10cc.

Weldo high precision metering and mixing machine is applied pneumatic system different with traditional gear metering and mixing pump.Weldo mixing machine is for lower , medium, thickness adhesive , resins and epoxies precision to handle the metering & mixing of component parts. Adapt to variety of two component AB glue 1:1-1:3 widely used in the relay ,energy saving lamps,LED ,capacitor ,souvenir and jewlry etc.

Function:

1. Metering and Mixing Machine reaction is fast  and constantly  metering and mixing two component adhesive to transfer the adhesive to dispensing machine quickly .

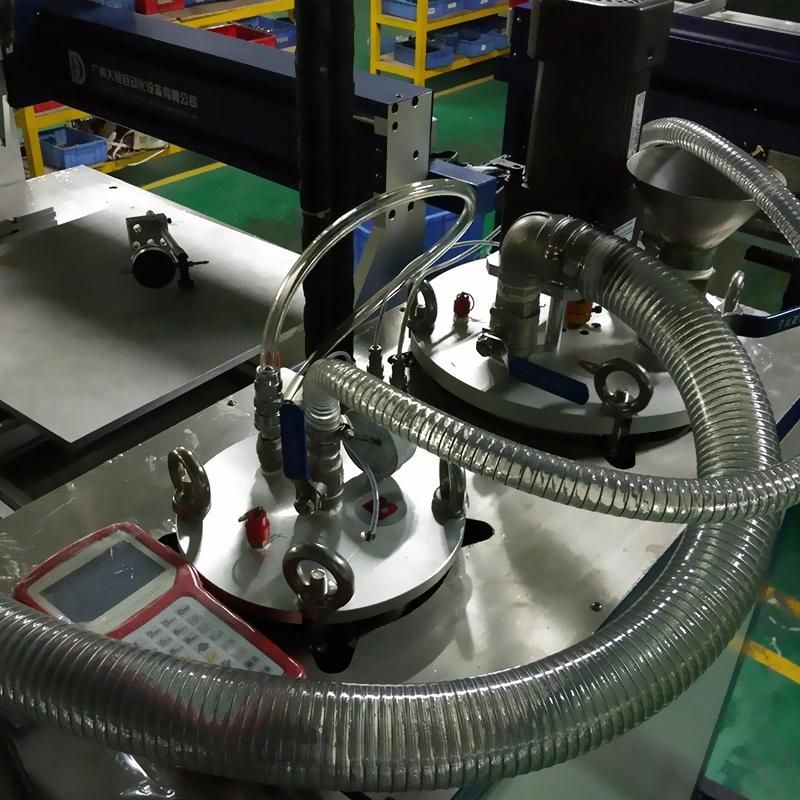

2.The machine is installed chemical A and Chemical B barrel .Constant temperature heating device are installed on whole mixing and transporting system ensure glue flowing evenly and hot dispensing .

3. The machine has an automatic cleaning function.

4. The automated -cycling function can reduce the labor instensity and increases the production .

5. PLC controlled , touch screen interface , simple and easy operation .
Application Scope:
