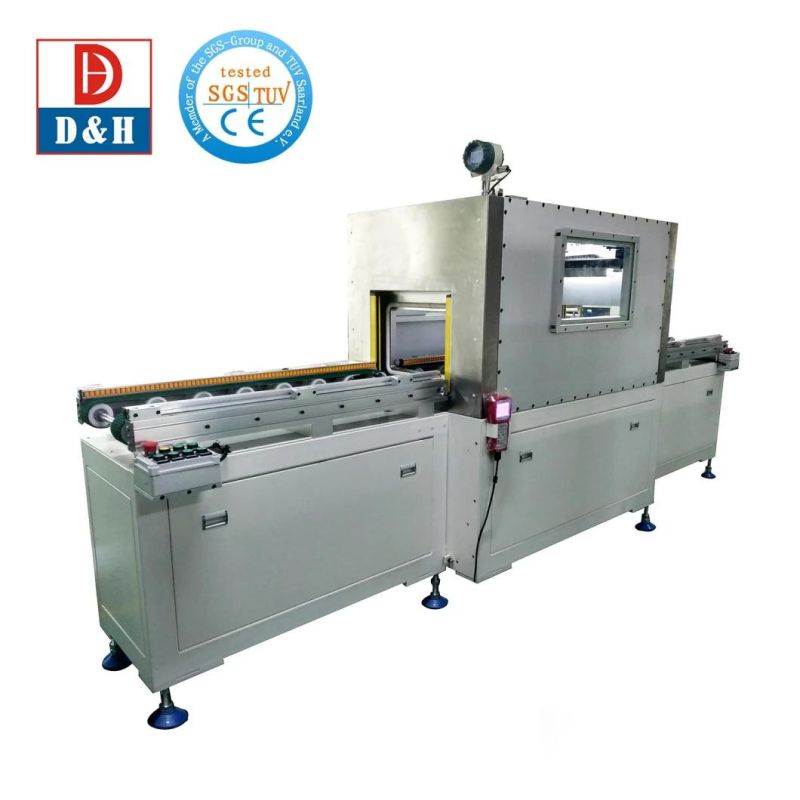

Electronics Parts Production Vacuum Chamber Glue Potting Machine
Guangzhou ZhengQi Technology Co., Ltd.- Precision：High Precision
- Condition：New
- Certification：CCC, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Installation：Vertical
Base Info
- Model NO.：VGB-600
- Driven Type：Electric
- Glue & Ratio：1:1 to 20:1, Epoxy, Silicone, PU, UV
- Certificate：Ce, SGS
- Xyz Working Area：700*700*80mm
- Flow Speed：0-66g,5s, or Customized
- Additional Function：Heating, Vacuum, Self-Refilling, Self-Cleaning
- Transport Package：Wood Box
- Specification：1500x1200x1500mm
- Trademark：DH
- Origin：China
Description
Basic Info.
Model NO. VGB-600 Driven Type Electric Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV Certificate Ce, SGS Xyz Working Area 700*700*80mm Flow Speed 0-66g/5s, or Customized Additional Function Heating, Vacuum, Self-Refilling, Self-Cleaning Transport Package Wood Box Specification 1500x1200x1500mm Trademark DH Origin ChinaProduct Description
Automatic glue dispensing machine PGB-700
Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.
Application:

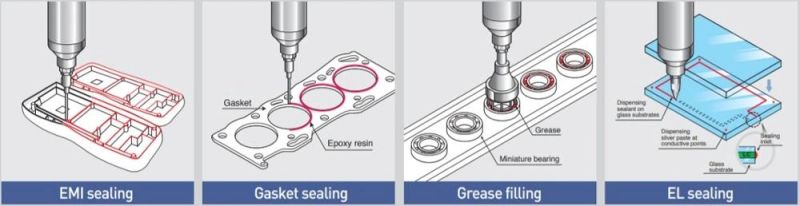

Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.
Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching
Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.
| Model & Type | PGB-700 Full Auto Gluing Machine Dispenser |
| Certificate | CE, SGS |
| Dimension | 1500x1200x1500mm |
| N.W. | 260kg |
| XYZ Working Area | 700x700x80mm |
| Flow Speed | 0-66g/5s, or customized |
| Moving Speed | 0-300mm per second |
| Glue & Ratio | 1:1 to 20:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/- 1% |
| Power | AC220V or AC 380V |
| Total Power Consume | 3kw - 5kw |
| Additional Function | Heating, Vacuum, Self-refilling, Self-cleaning |
| Application | LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^ |
