Coaxial Shield Wire Cutting and Stripping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-6806D
  • Function：Stripping
  • Stripping Length：480mm
  • Tool Material：High Quality Imported High Speed Steel
  • Air Connection：0.3-0.6 MPa
  • Maximum Power：400W
  • Core Wire Size：1-10mm
  • Working Speed：700-1,200 PCS , Hour
  • Blade Quality：4 PCS
  • Stripping Layers：Max 9 Layers
  • Weight：25 Kg
  • Transport Package：Double-Layer Export Carton
  • Specification：600*280*180mm
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Basic Info.

Model NO. YH-6806D Function Stripping Stripping Length 480mm Tool Material High Quality Imported High Speed Steel Air Connection 0.3-0.6 MPa Maximum Power 400W Core Wire Size 1-10mm Working Speed 700-1,200 PCS / Hour Blade Quality 4 PCS Stripping Layers Max 9 Layers Weight 25 Kg Transport Package Double-Layer Export Carton Specification 600*280*180mm Origin China HS Code 8479819000 Production Capacity L=100mm, 3000-7000PCS/H

Product Description

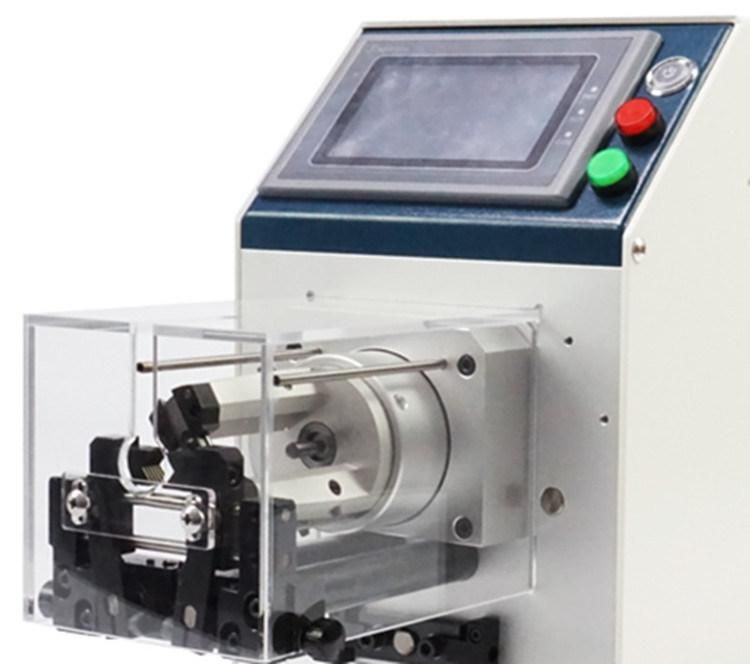

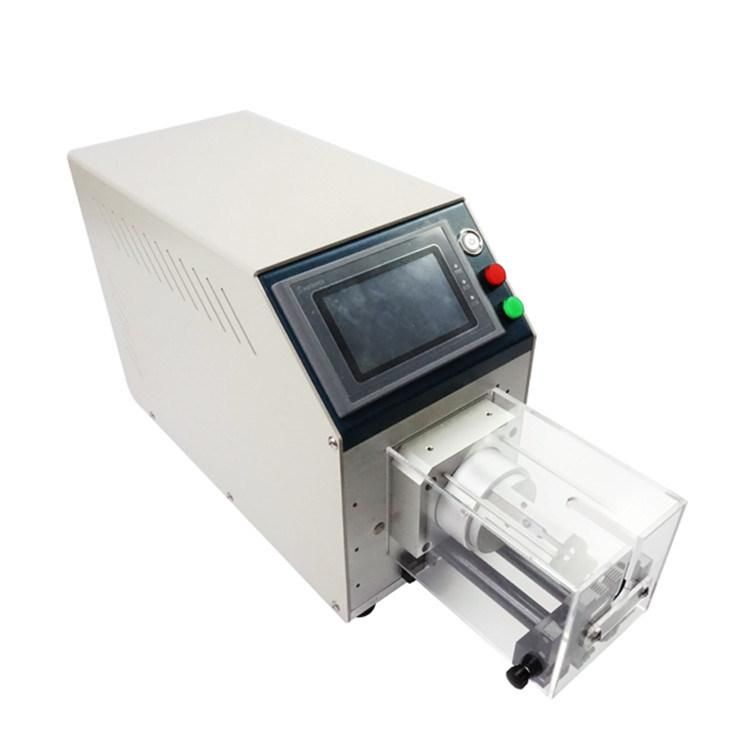

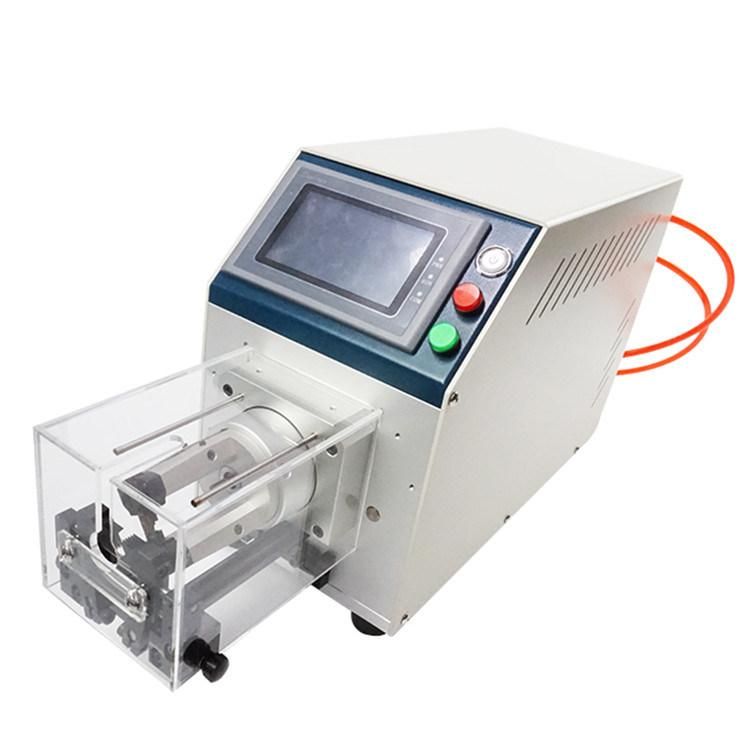

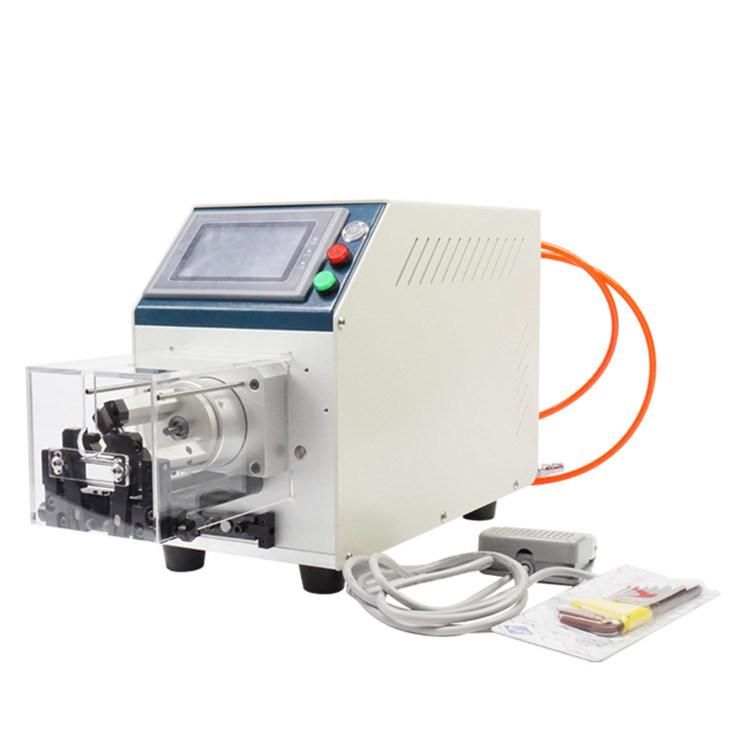

Semi-automatic Multi-layer Coaxial Cable Stripping Machine

This semi automatic multi-layer coaxial cable stripping machine is suitable for peeling coaxial cable, triaxial cable and shielded cable. Processing wire type: rf1.13, rf1.78, rf3.16, rg58, rg59 and rg1.41.

  • Cable processing type: Coaxial cable, triaxial cable, shielded cable and rigid cable.

  • Processing wire type: rf1.13, rf1.78, rf3.16, rg58, rg59, rg1.41, etc.

  • The machine provides flexible storage and recall of data for easy processing of cables of different diameters.

  • The blade is made of Swiss tungsten steel to ensure the life and accuracy of the blade.

Specifications:

ModelYH-6806AYH-6806D
Cable diameter0.81-7mm1.5-9.5mm
Maximum stripping length47mm65mm
Cutting depth unit0.01mm0.01mm
Max. stripping layers9 layers9 layers
Weight24KG24KG
Power supply110V/220V/50HZ110V/220V/50HZ
Dimension600x185x280 mm600x185x280 mm


 Coaxial Shield Wire Cutting and Stripping MachineCoaxial Shield Wire Cutting and Stripping MachineCoaxial Shield Wire Cutting and Stripping MachineCoaxial Shield Wire Cutting and Stripping MachineCoaxial Shield Wire Cutting and Stripping MachineCoaxial Shield Wire Cutting and Stripping Machine
  Coaxial Shield Wire Cutting and Stripping MachineCoaxial Shield Wire Cutting and Stripping Machine



Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

Sample: cut and strip wire automatically

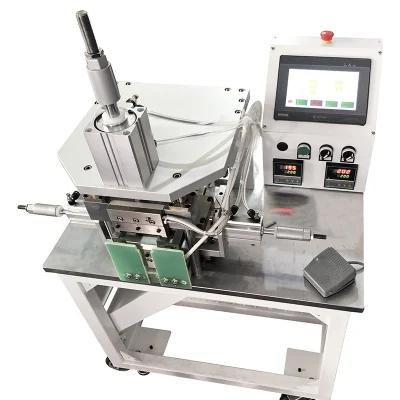

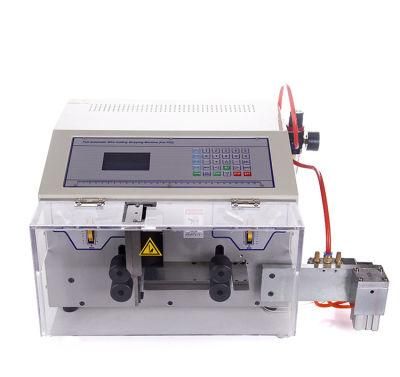

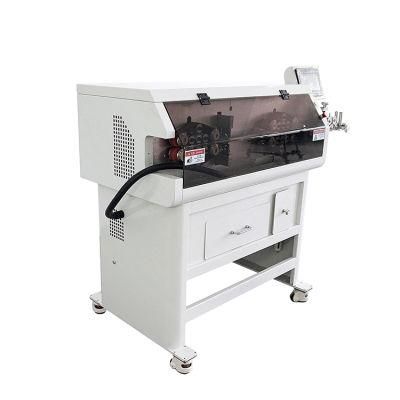

Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

for Sale Small Size Automatic Computer Electrical Electric Cable Stripper Machine Wire Cutting Stripping Machine



Any questions, please feel free to contact us ! Thank you !
