• Model NO.：PGB-650B
• Installation：Desktop
• Driven Type：Electric
• Transport Package：Standard Export Poly-Wood Case
• Specification：650x550x100
• Trademark：Daheng
• Origin：China
• HS Code：8424899990
• Production Capacity：1000,Year

Basic Info.

Model NO. PGB-650B Installation Desktop Driven Type Electric Transport Package Standard Export Poly-Wood Case Specification 650x550x100 Trademark Daheng Origin China HS Code 8424899990 Production Capacity 1000/Year

Product Description

Glue potting machine PGB-650B

1.Feature
2 sets of independent glue supply systems
design for product Line , compatible with various production lines
Higher glue efficiency
Larger amount of glue

2.Specification
Item: PGB-650B
Dimension: 2850*1600*1700mm
XYZ working area: 650*550*100mm
AB ratio: 100:100-100:10 adjustable
Movement Track: Dot/Line/Arc/Circle
Speed: 500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy: ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program: 99pcs/more
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic and static optional, instant mixing, easy to clean
Tank:stainless steel(40L),(25L),(10L)optional
Power supply: 220V/50Hz/1200W ( The power consumption without heater)
Brand: D&H
Model:PGB-650B
Applications:  capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, art stickers , other electronic products where glue potting demanded.
Suitable Material: A&B Glue , Silicon , Epoxy , Polyurethane...etc.



3.Features

1, Glue controlling system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid the waste of glue.
3, Dispensing size and positioning keep machine work consistent and fast.
4, Good universality makes PGB-650D machine suitable for applications capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, art stickers , other electronic products where glue potting demanded.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.

1. Easy match with production line

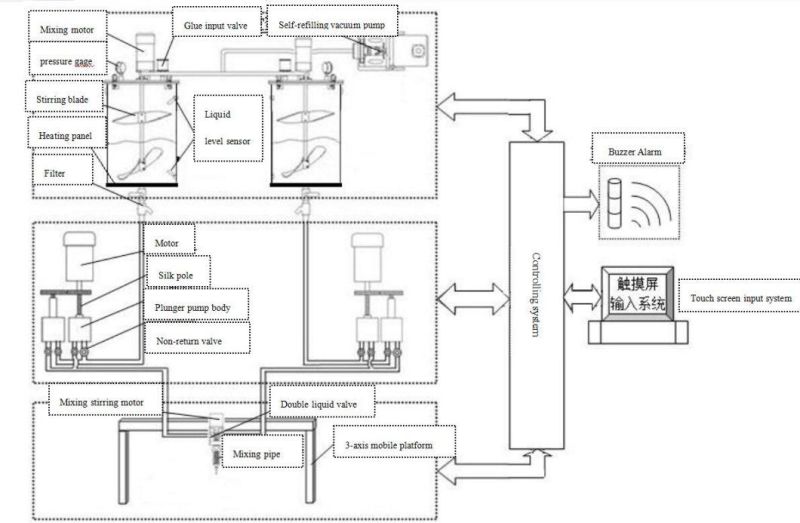

1. The working principle:

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
