• Model NO.：ND-R2SW02D
• Dimension：1300*800*1500mm
• Automatic：Automatic
• Certification：CE
• Transport Package：Ply-Wooden Case
• Specification：customized
• Trademark：NIDE
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Product name:Automatic external rotor needle winding machineBLDC rotor O.D.: 80-200mmBLDC rotor height: 18-35mmWire diameter: 0.2-1.3mmWinding method:needle windingPower supply: 220V,50/60 HzParallel winding wire number: 1-8Machine weight: about 700KGDimension: 1300*800*1500mm



Automatic external rotor winding machine Application:

The automatic external rotor winding machine is used for BLDC motor manufacturing ,such as air heaters motor, heat pumps motor, condensers motor, cooling units motor, evaporators motor, electronic equipment motor for air or heat dissipation, etc.

Automatic external rotor winding machine Function and Characteristics:
1. The automatic motor external rotor winding machine adopts needle coil winding technology, is sutiable for multi-pole BLDC armature coil winding. Manual loading and unloading, automatic clamping, winding and shearing.
2. The frame adopts thickened 4080 aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.
3. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
4. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
6. Quick change-overof tooling;(20 minutes with proficiency)
7. Full aluminum alloy protection
8. PLC control, fault display
9. The wire tightness is moderate, no injury, no breakage, ect.
10. The salt test of the product is carried out within 10 mA in one minute.
11. Equipment safety index: accord with CE standard.
12. Efficiency: 120 rev / min.
13. Beat: 5 minutes / BLDC rotor.
14. Noise: 60-70 decibels or less.

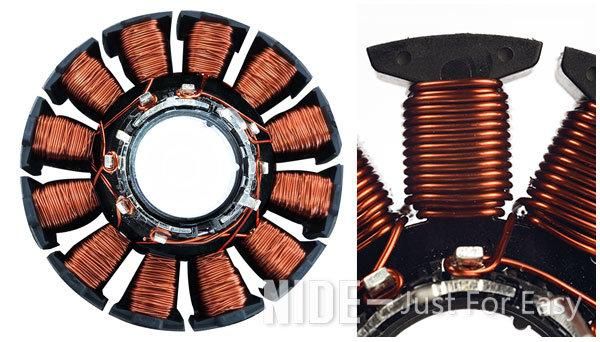

Automatic external rotor picture display:


About us:

NIDE mainly focus on the latest winding and assembly technology for all kinds of BLDC motor, including the stone along machine and fully automatic complete line , BLDC stator insulation paper inserting machine , BLDC stator end cover pressing machine , BLDC motor coil winding machine , needle winding machine , external rotor coil winding machine , testing machine , etc.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
