Automatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：All Life
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Model：Yh-300fs
  • Size of Seals：Max: 9X10mm (Outer Diameter X Length)

Base Info

  • Model NO.：YH-300FS
  • The Inner Diameter of Seals：0.6-3.0mm
  • Max. Insertion Length：10mm
  • The Length of The Inner Sheath of The Mu：Over 38mm
  • Working Efficiency：50 Times,Min (Not Counting Manual Speed)
  • Accuracy：±0. 3mm
  • Power Supply：200V 50Hz, <150W
  • Transport Package：Wooden Case Package
  • Specification：22*25*60cm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：50

Description

ModelYH-300FSSize of seals

MAX: 9x10mm (outer diameter x length)

The inner diameter of seals0.6-3.0mmMax. insertion length10mmThe outer diameter of the wire1-3.5mmThe length of the inner sheath of the multi-core wire> 38mmWorking efficiency50 times/min (not counting manual speed)Accuracy±0. 3mmPower supply200V 50HZ, <150W

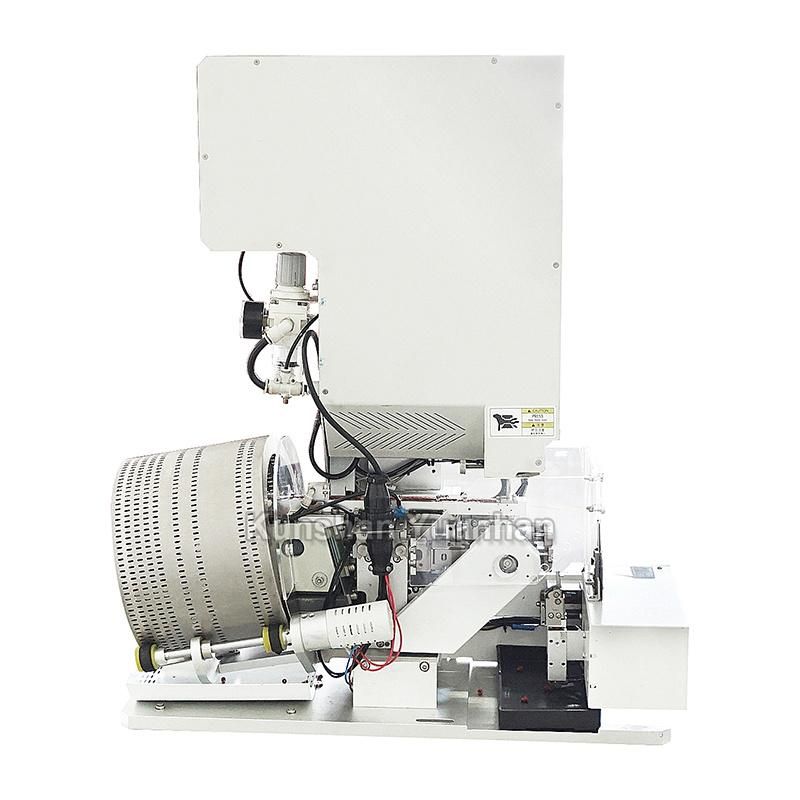

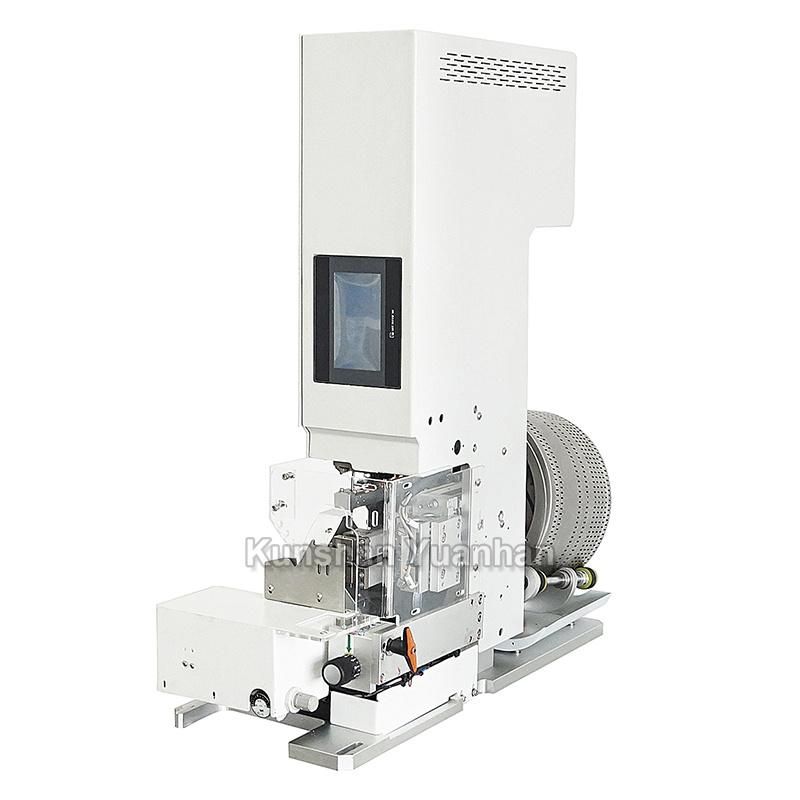

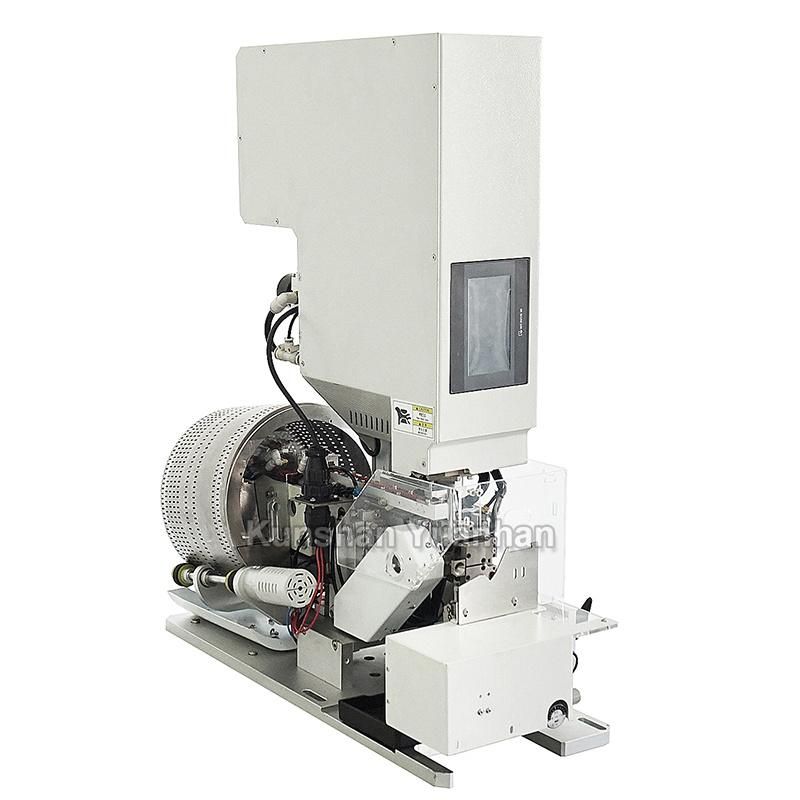

MACHINE SHOWS
Automatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping MachineAutomatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping MachineAutomatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping MachineAutomatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping MachineAutomatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping MachineAutomatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping MachineAutomatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping MachineAutomatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping Machine


COMPANY SHOWS
Automatic Water Seal Insertion Wire Crimping Machine Waterproof Seal Insert Crimping MachineANY INQUIRYS PLEASE CONTACT MS EMY ZHOU FOR MORE DETAILS
