Hc-2018 Pneumatic Cable Wire Stripping Machine
Changzhou Hechang Intelligent Technology Co., Ltd.- Driven Type：Pneumatic
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Model：Hc-2018
Base Info
- Model NO.：HC-2018
- Outer Dimensions：L265mm*W70mm*H135mm
- Weight：2.4kg
- Processing Time：Approx 0.3 S
- Air Pressure： 0.5PA-0.8PA
- Stripping Length：Max 18 mm

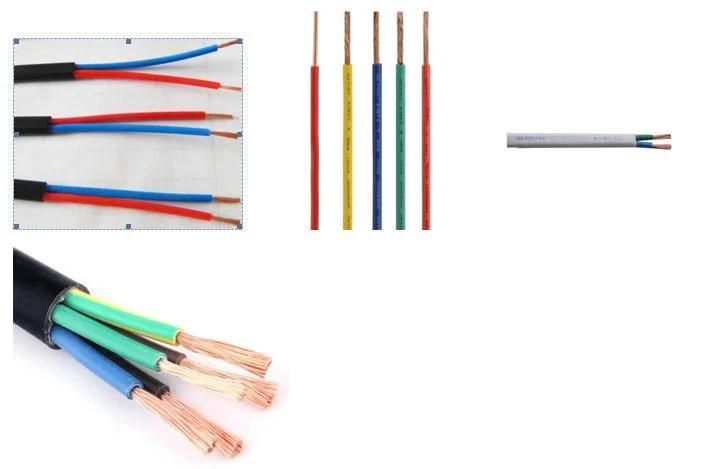

- Applicable Wires：PVC and Teflon Wire,PUR, Glass Wire,1015,1017,Mul
- Wire Size：0.03-2.5 mm2 (AWG32--AWG14) Max Wire Diameter : 3.
- Precision of Diameter Setting：0.01mm
- Stripping Accuracy：Full Strip :0.5mm , Part Strip :2mm
- Transport Package：Wooden Box
- Specification：L265*W70*H135mm
- Trademark：hechang
- Origin：Changzhou
- HS Code：8479899990
- Production Capacity：50sets,Mouth
Description
Product Parameters 1.What are the wearing parts?
Detailed Photos

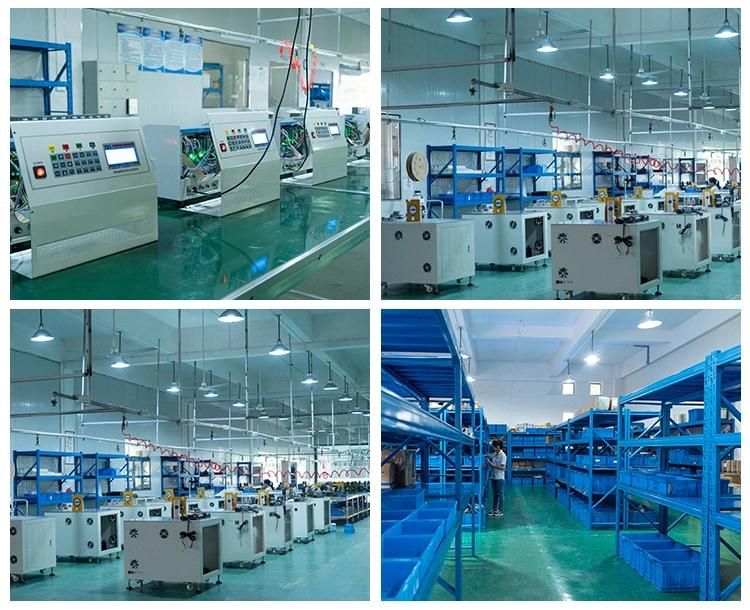

Changzhou Hechang Intelligent Technology Co., Ltd. was established in 2005, specializing in the production of wire and cable processing equipment, wire harness processing equipment, and primary and secondary line equipment. It is a professional enterprise integrating sales, innovation and service. Since its establishment, the company has successively passed ISO9001, CE certification, obtained a number of utility model patents, and established a Jiangxi production base and branch in 2018. The company has a professional R&D technical team, advanced processing technology and efficient after-sales service. The equipment produced is widely used in electronics, new energy vehicles, 5G, 3C, home appliances, medical, aerospace and other industries.
The equipment and accessories of Changzhou Hechang Intelligent Technology Co., Ltd. are independently developed and manufactured, combined with advanced technology in Europe, America and Taiwan, and continue to develop and innovate. It cooperates with many well-known domestic and foreign companies such as Amphenol, Siemens, Delixi and Johnson Controls. Established long-term cooperative relations, products are exported to Europe, America, Southeast Asia, Oceania, Africa and many other countries and regions.
Blade and belt. More spare parts info, please contact us.
2.Operation and user manual?
English and Chinese optional.
3.How long is the warranty period?
1year, all belts and blades without of the warranty.
4.What after sales service do you provide?
Technicians online support, video technical support within 24 hours.
If you need local service please check with Hechang Machinery. Generally require additional charges.
