• Model NO.：XJ-500
• Type：High-speed Stranding Machine
• Motor：Siemens
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-500 Type High-speed Stranding Machine Motor Siemens Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

Wire and Cable Triple Twister Machine1.Application:
Suitable for cat5, cat5e, cat6,cat7 Lan Cable pair twisting.
2.Machine Features:
1) Triple pitchs design, 1.5 times speed to traditional double twisting machine when with 33% back twisting rate;2) Servo electonic pitch, setting by touch screen, PLC controller, accuracy within 2%; 3) Active take-up, tension stable from empty to full bobbin.3. Technical Parameters:

Model	XJ-500
Usage	Suitable for cat5, cat5e, cat6,cat7 Lan Cable pair twisting.
Rotate speed	Max.1800rpm
Suitable wire diameter	0.8-1.7mm
Twisted OD	1.5-3.5mm
Twisting pitch	50-50mm; electric pitch setting by touch screen
Pitch tolerance	+/_ 2%
Back-twist rate	0-100%
Tisting direction	S/Z
Tension display	Digital tension display
Pay-off and Take-up tension	Stable active rail tension
Motor power	Twist-bow motor 10HP, 1/2HP gear motor driving, with frequency inverter.

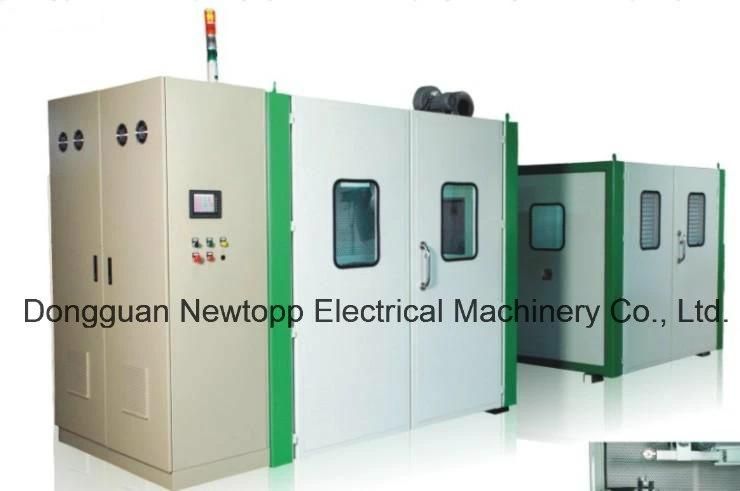

4. Machine Picture:

5. Brand of main parts:1) Motor: Siemens; TECO2) Driver: Yaskawa or inovance3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Omron
6. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors

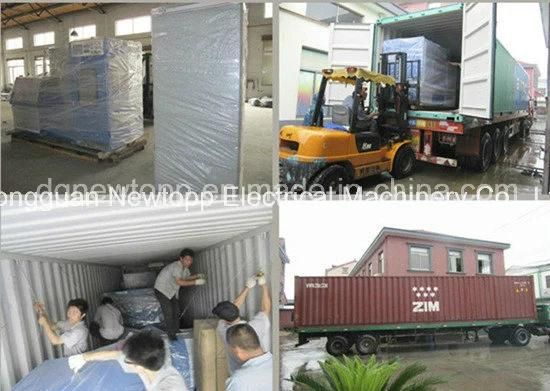

7.Packaging & Shipping
1) Transparent PE film + Wooden box
2) Cardboard wrapping corner to protection, wire rope in fixed to sea ship
3) 20 Feet container for complete production Line equipment

8.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
9. Company Informations:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipment R&D, design and manufacture.With the continuous improvement of production technology level and Constantly increasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfect and excellent.
