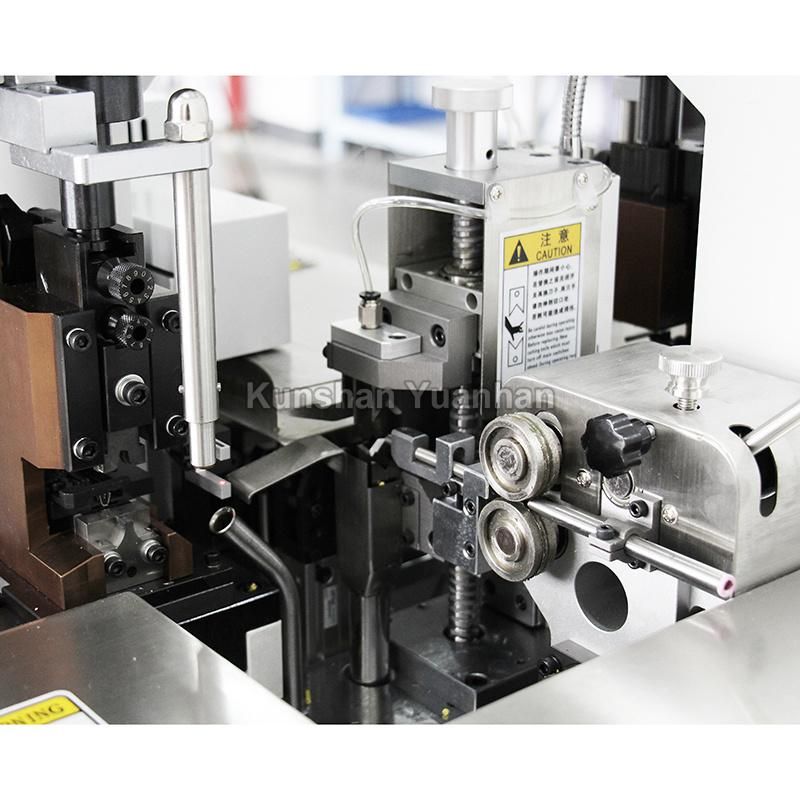

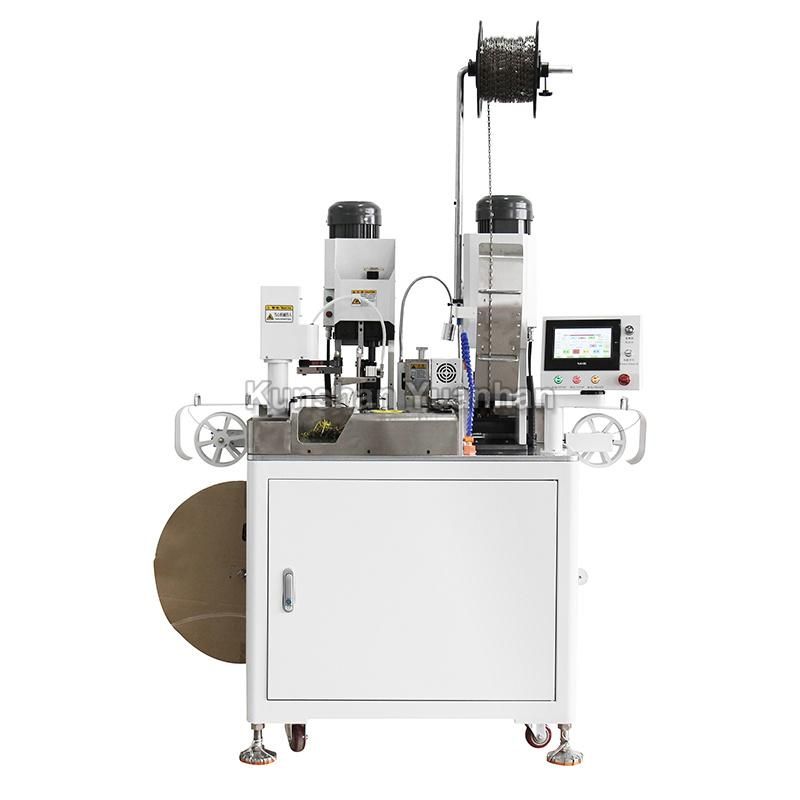

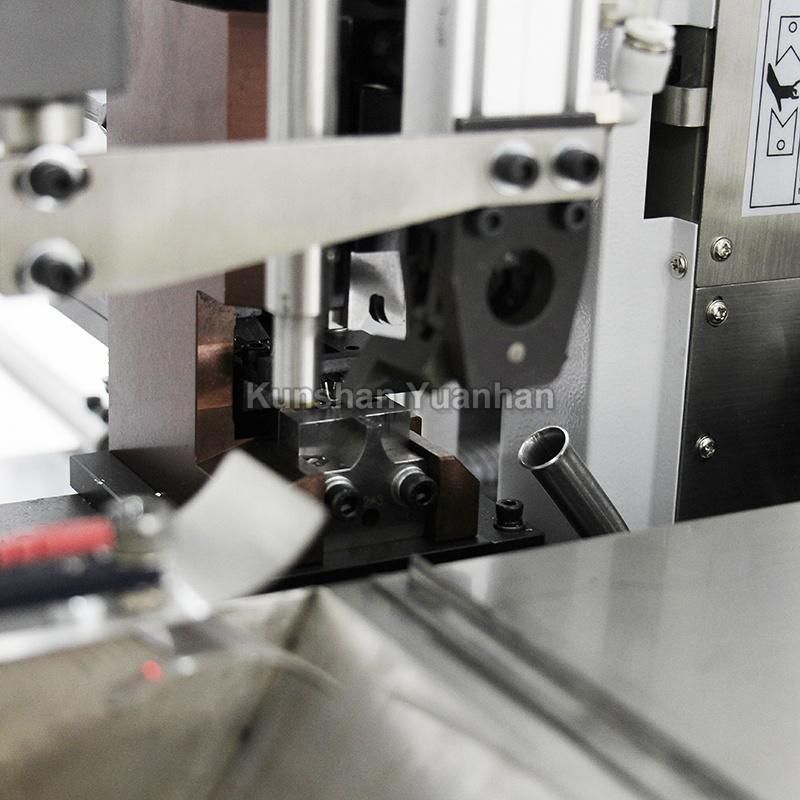

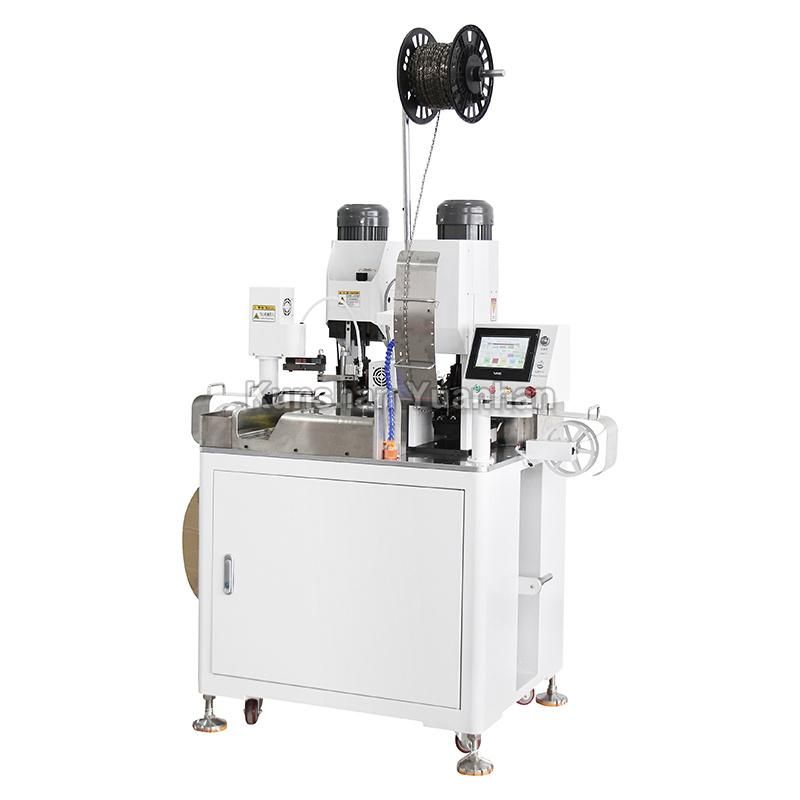

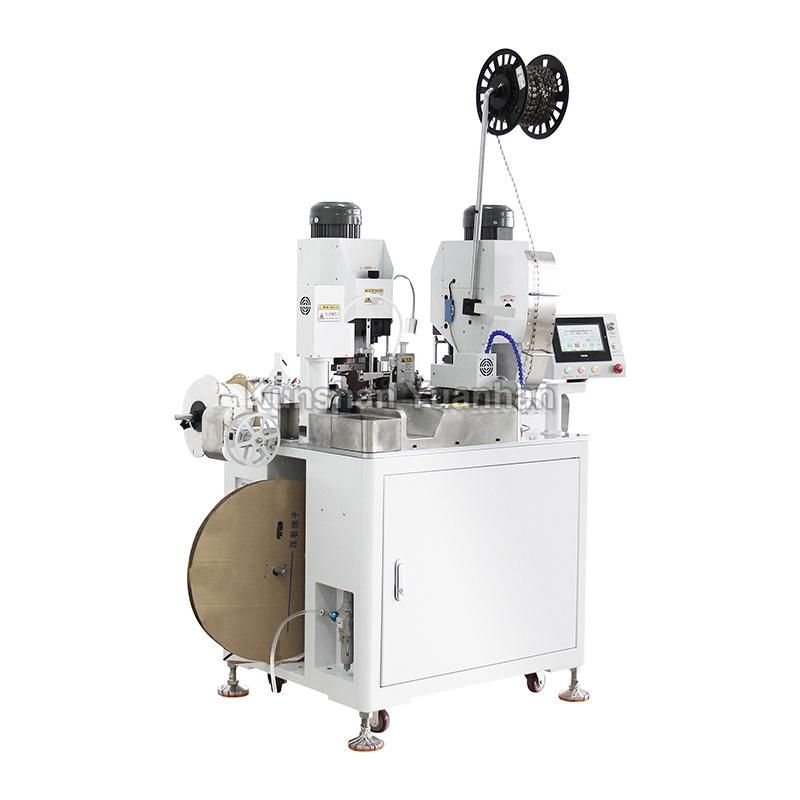

Double Side Servo Motor Wire Crimping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24h
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic

Base Info

  • Model：Yh-Sf201
  • Wire Cutting Length：26mm-9999mm
  • Cutting Tolerance：≥1m, Below ±0.02%
  • Stripping Length：0.5mm-35mm (Half Stripping Is Required for More Th
  • Cutting Speed：5500 PCS,H (Within 100mm)
  • Processing Efficiency：4000-4800,H (Within 30~200mm)
  • Crimping Force：2.0t, Other Pressures Can Be Customized
  • Applicable Wire：AWG30#-AWG14#
  • Applicable Applicator：Otp Horizontal Applicator, Straight Applicator (EU
  • Motor：5 Sets of Mitsubishi Servo Motors + 2 Sets of Step
  • Screw：4 Sets of Tbi Screw
  • Slide Rail：7 Sets of Upper Silver Rail
  • Bearing：Sweden SKF

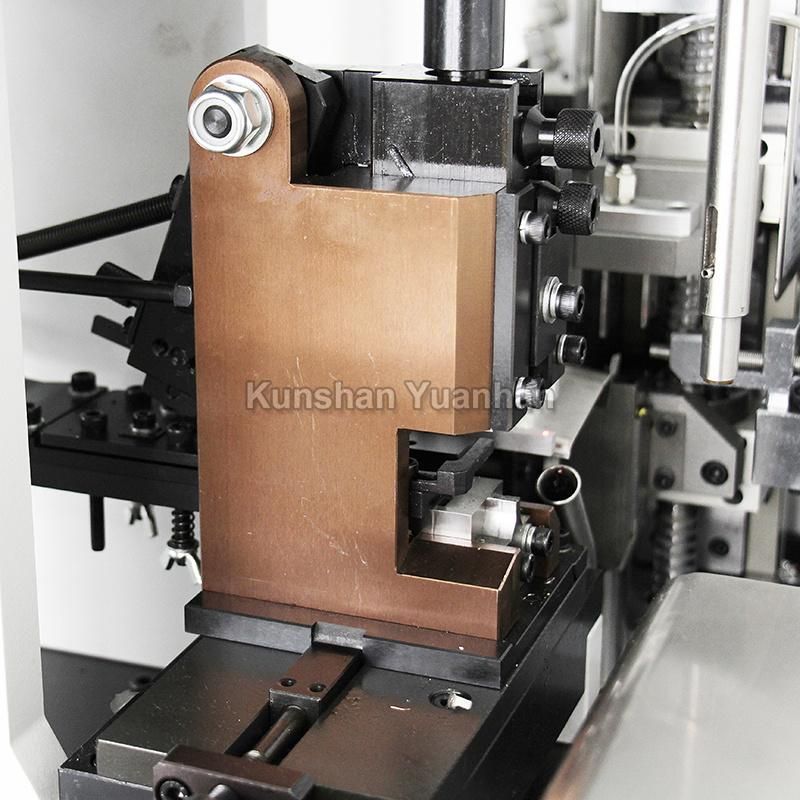

  • Terminal Crimping Capacity：2t,3t European Precision Frequency Conversion Term
  • Voltage：AC220V 50Hz
  • Transport Package：Carton,Wooden Case
  • Trademark：YH
  • Origin：China
  • HS Code：8479819000

Description

ModelYH-SF201Wire cutting length26mm-9999mmCutting tolerance≥1m, below ±0.02%Stripping length0.5mm-35mm (half stripping is required for more than 12mm)Cutting speed5500 pcs/h (within 100mm)Processing efficiency4000-4800/h (within 30~200mm)Crimping force2.0T, other pressures can be customizedApplicable wireAWG30#-AWG14#Applicable applicatorOTP horizontal applicator, straight applicator (European applicator can be customized)Motor5 sets of Mitsubishi servo motors + 2 sets of stepper motorsScrew4 sets of TBI screwSlide rail7 sets of upper silver railBearingSweden SKFTerminal crimping capacity2T/3T European precision frequency conversion terminal machineVoltageAC220V 50HzAir pressure0.5~0.6MPa (stable, clean, dry)Rated power1.8KWDimensionslength 1380 * width 750 * 1580 height (mm)Weight360KgDouble Side Servo Motor Wire Crimping MachineDouble Side Servo Motor Wire Crimping MachineDouble Side Servo Motor Wire Crimping MachineDouble Side Servo Motor Wire Crimping MachineDouble Side Servo Motor Wire Crimping MachineDouble Side Servo Motor Wire Crimping MachineDouble Side Servo Motor Wire Crimping MachineDouble Side Servo Motor Wire Crimping Machine



Packaging DetailsExport standard package for  terminal crimping machineDelivery detailsWithin 3-5 working daysOur company

Double Side Servo Motor Wire Crimping Machine1.How to order?Please contact my Email for much more details, you can place order with us directly or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases.5.What can you provide for us?· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation, please feel free to contact us.
