• Model NO.：WG-3001
• Power Consumption：50W
• Crimping Range：D0.8~D4.0mm
• Transport Package：Wooden Case
• Specification：650mm*450mm*1350mm
• Trademark：Wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-3001 Power Consumption 50W Crimping Range D0.8~D4.0mm Transport Package Wooden Case Specification 650mm*450mm*1350mm Trademark Wingud Origin China Production Capacity 120/Month

Product Description

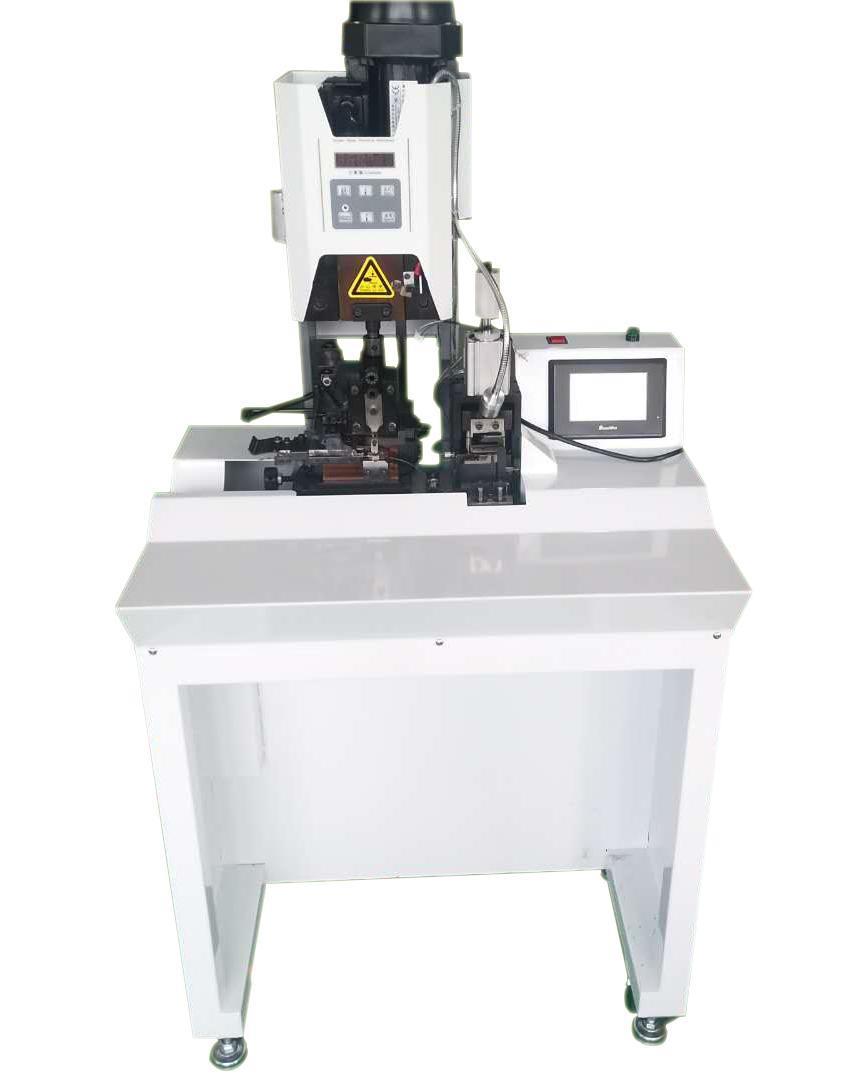

WG-3001 Automatic Stripping Crimping Machine for Multi-Cores Cable
Characteristics
This is a special all-in-one machine for automatic cutting, stripping, crimping for the multi-core wire, it can improve the processing efficiency, reduce labor, is convenient and fast.

Production range: (except the slant soft wire)1. Stripping range: 2~4 cores   shortest stripping 35mm                                 5~10 cores  shortest stripping 40mm 2. Crimping range: minimum core wire ¢0.8mm;   maximum core wire ¢4.0mm                                Maximum crimping with 12 cores in one time.
3. Efficiency of operations: 5500PCS/h for 12 core wire

Machine configuration:
This product uses domestic Shenli closed loop motor, AirTAC pneumatic original air parts, Xinjie PLC touch screen, all the parts are through confidential processed.

Technical Parameter:

Model	WG-3001 Automatic Stripping Crimping Machine for Multi-Cores Cable
Dimensions	650mm*450mm*1350mm
Weight	90KG
Power supply	220V  50/60HZ
Power Consumption	50W
