Liquid Dispenser Robotic
Guangzhou ZhengQi Technology Co., Ltd.- Precision:High Precision
- Condition:New
- Certification:CE
- Warranty:12 Months
- Automatic Grade:Semiautomatic
- Installation:Vertical
Base Info
- Model NO.:PGB-200
- Driven Type:Electric
- Transport Package:Wooden Packing
- Trademark:D&H
- Origin:China
- HS Code:8424899990
- Production Capacity:50PCS Per Month
Description
Model No:
Mixing Ratio
100:100-10:100(1:1-1:10) Adjustable
Metering precision
±1%
Outflow speed
1g/sec-15g/sec
Mixing precision
±1%
Mixing mode
Dynamic mixing /Static mixing
Glue Viscosity
Lower than 20000 CPS(mPa·s)
Control mode
PLC + Touch Screen
Control system
Independent R&D
Measuring mode
Stepping motor/High-precision, wear-resistant,
long-life Gear pump
Working voltage
AC 220V 50Hz/60Hz
Power requirement
3.55KW
Air pressure requirement
4.5-8KG
Machine Dimension
1500(L)*1200(W)*1500(H)mm
Weight
approx 260 KG
Work environment
Humidity: 20%~98%RH; Temperature: 0~+40°c
Suitable Material: For waterproof, adhesive, fixed two-component adhesive.
Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.
Applications:LED products ,Crafts,Electronic components
Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter .etc

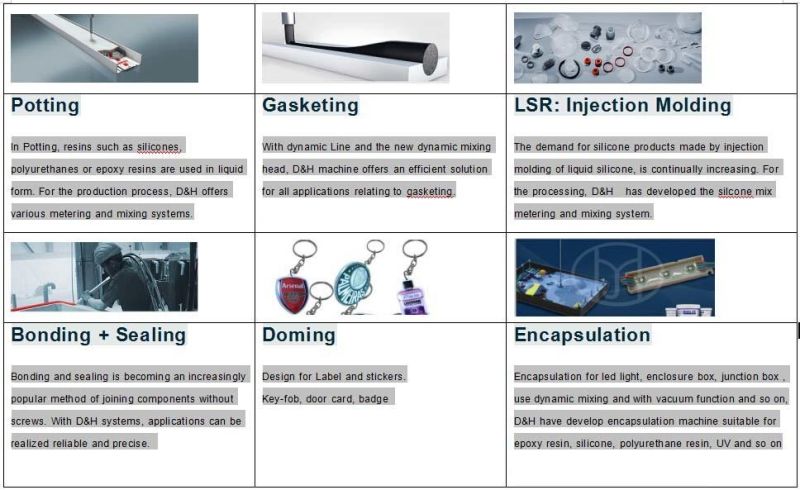

IV:Application
![Liquid Dispenser Robotic](http://www.996510.com/uploads/image/2021/a4/33/8a/53/52fd98ce3d23ad3935c1a1f6a5640885.jpg)
V, packing
![Liquid Dispenser Robotic](http://www.996510.com/uploads/image/2021/24/85/87/13/d260d180223ecded3c21b086cfd630e5.jpg)
![Liquid Dispenser Robotic](http://www.996510.com/uploads/image/2021/8a/a2/ca/98/f4157ad901e86d33f876a16763fa2744.jpg)
