• Model NO.：SM482
• Type：Ultra High-speed Chip Mounter
• Color：Grey
• Transport Package：Wooden Box
• Specification：CE,UL
• Trademark：ETA
• Origin：Korea
• HS Code：8515190000
• Production Capacity：100 Set,Month

Basic Info.

Model NO. SM482 Type Ultra High-speed Chip Mounter Color Grey Transport Package Wooden Box Specification CE/UL Trademark ETA Origin Korea HS Code 8515190000 Production Capacity 100 Set/Month

Product Description

Sm481, sm481 chip mounter, chip shooter sm481, pick and place machine sm481, SMT machine, SMT mounting, pick and place machine, SMT placement machine, SMT equipment, sm481

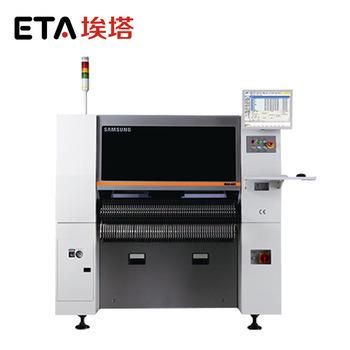

Pick & Place Machine - Samsung SM481 Flexible Chipshooter

Highly reliable SM481 is a new generation of chipshooter from Samsung Techwin. Single Gantry with 10 Placement Heads
Cost of ownership is extremely low due to the simple yet reliable X/Y/Z structure.
Easy to use software allows users to quckly learn the machine and get the most from it. Standard component library has more than 1800 shapes and the polygonic algorithm automatically detects component outlines on difficult components.

Features:
Built in vacuum pump making air consumption just 50Nl/min! ! ! !
Easily Identifieable Feeders
Adaptive Pick Up
Front and back operation as standard
Large PCB Size of 460mm X 400mm
01005 component recognition as standard
120 X 8mm Feeder Capacity
High Accuracy ± 50µ @3σ /Chip
Small Footprint of just 1650mm X 1680mm X 1530mm
4.7kVA Max Power

Placement Rate: 39'000cph optimum
Placement Accuracy: ± 50µ @3σ /Chip
± 30µ @3σ /QFP
Component Range: 01005~16mm² By flying vision
Optional Camera available for devices up to 42mm²
Max Height = 10mm, (15mm Optional)
PCB Size: 460mm X 400mm
PCB Thickness: 0.38 ~ 4.2mm
Feeder Capacity: 120 X 8mm

Options:
Fixed Cameras for larger devices
15mm Component height optional (Factory order only)
Board Size 510mm X 460mm
Board Size 610mm X 510mm
Board Size 740mm X 460mm
Intelligent Feeder and Parts system
Feeder Docking Carts
Flux Dipping Feeder
