Automatic Small AC Motor Armature Winder Coil Winding Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Used for：Grinder , Juicer , Coffee Makers
  • Condition：New
  • Size：Middle Size
  • Color：Customized
  • Application：Small AC Motor Armature Rotor Coil Winding
  • After-Sales Service：Overseas Service Center Available

Base Info

  • Model NO.：ND-RM-AL2-N02
  • Working Station：4
  • Machine Color：Ral9010 or as Per Customer Requirement
  • Transport Package：Ply-Wooden Case
  • Specification：customized
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description

Product name:Full auto motor armature coil winding macine with 4 winidng stationsModel :ND-RM-AL2-N02Wire diameter0.13-0.38mmRotor OD≤ φ60mmRotor stack thickness25~45mmNotch width≥2mmWinding method :Winding clockwise / Counterclockwise windingThe number of rotor slots :3 to 24 slotsWinding Working station4Winding speed :0-4000RPM, driven by servo motorArmature groove hook angle: any angleWorking temperature45ºCStore temperature50ºCWorking humidity<65%Store humidity<45%Production capacity :About 200pcs/hour (depending on the number of windings)Air source pressure0.4-0.7MpaVoltage:3 phase AC 220V 50HzMain power0.75KW servo motorMachine dimensionW1100mm*L1150mm*H1300mmMachine weight300kg



4. The motor armature winding machine picture show:

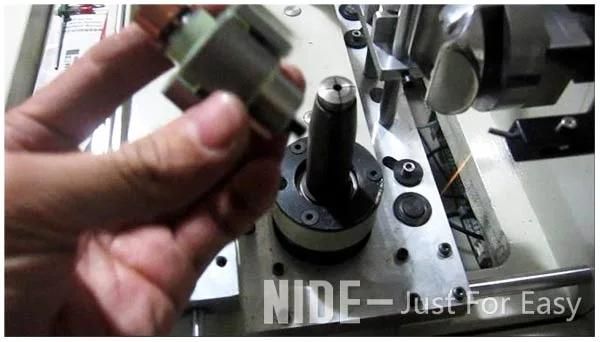

1. Motor armature winding machine winding spindle display
Automatic Small AC Motor Armature Winder Coil Winding Machine

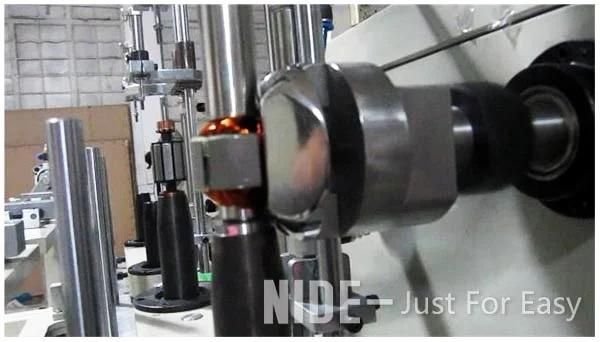

2. Motor armature winding machine winding process

Automatic Small AC Motor Armature Winder Coil Winding Machine

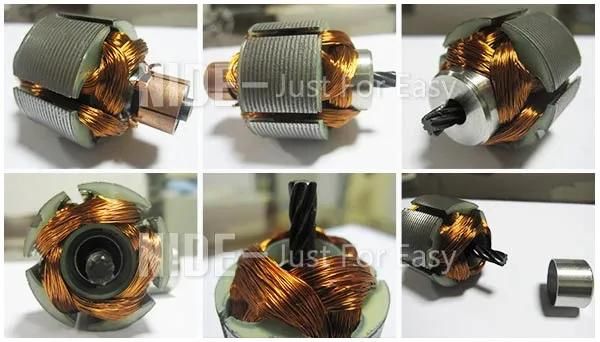

3. Motor armature display after coil winding
Automatic Small AC Motor Armature Winder Coil Winding Machine

Automatic Small AC Motor Armature Winder Coil Winding Machine
Automatic Small AC Motor Armature Winder Coil Winding MachineAutomatic Small AC Motor Armature Winder Coil Winding MachineAutomatic Small AC Motor Armature Winder Coil Winding Machine
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Automatic Small AC Motor Armature Winder Coil Winding Machine
Automatic Small AC Motor Armature Winder Coil Winding Machine
