60-200mm Final Coil. O. D Automatic Toroidal Transformer Coil Winding Machine
Tianjin Grewin Technology Co., Ltd.- Tape Width:10(8, 12, 15)
- Max.Final Coil.O.D:60-200
Base Info
- Model NO.:GWTM-0118
- Min.Final Coil.I.D:30
- Max.Finalcoil Height:80
- Controller Storage Capacity Programs:29 Sets
- Max.Taping Speed:200rpm
- Tape Spacing:Proportional Linkage
- Supply Voltage:AC 220V(50Hz)
- Mechanical Dimensions:550*500*1100
- Weight:100kg
- Automatic:Automatic
- Certification:RoHS, CE, ISO
- Transport Package:Export Standard Carton or Customize Strong Pallet
- Specification:CE
- Trademark:Grewin
- Origin:China
- HS Code:85043190
- Production Capacity:100PCS
Description
Basic Info.
Model NO. GWTM-0118 Min.Final Coil.I.D 30 Max.Finalcoil Height 80 Controller Storage Capacity Programs 29 Sets Max.Taping Speed 200rpm Tape Spacing Proportional Linkage Supply Voltage AC 220V(50Hz) Mechanical Dimensions 550*500*1100 Weight 100kg Automatic Automatic Certification RoHS, CE, ISO Transport Package Export Standard Carton or Customize Strong Pallet Specification CE Trademark Grewin Origin China HS Code 85043190 Production Capacity 100PCSProduct Description
Product Description:Automatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for the insulation tape wrapping machine on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.

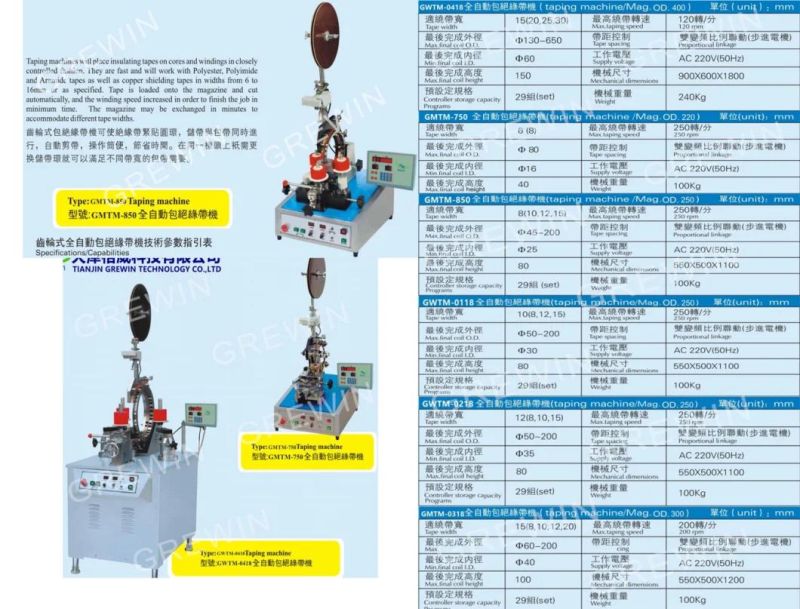

Specification

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
Why Choose Us
1.operating videos
2.24 hours technical support
3.1 year free Warranty4.Free training.
5. OEM/ODM accept

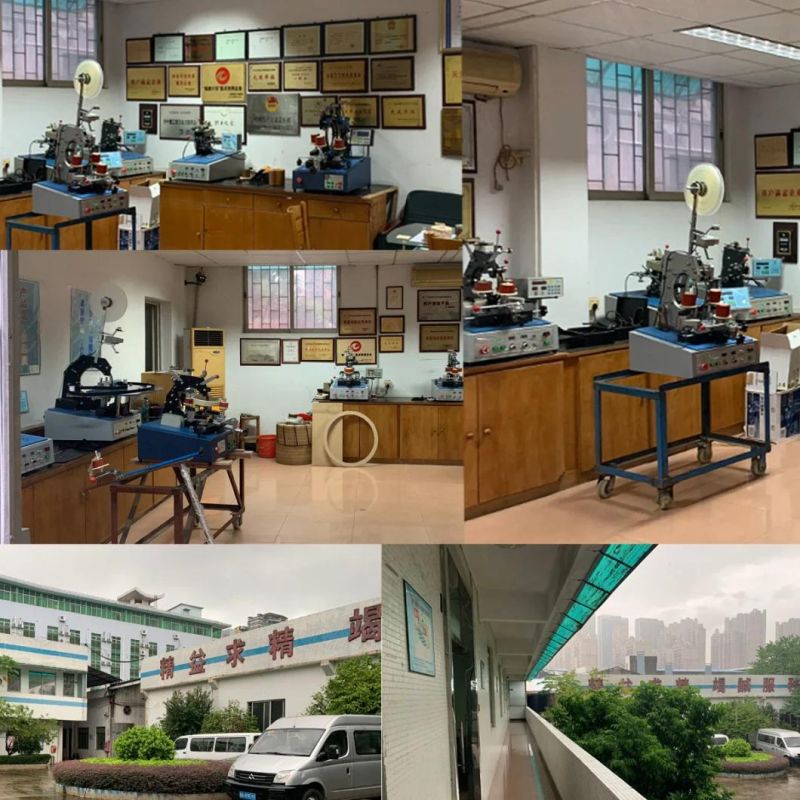

Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
