• Model NO.：TP50V
• Type：Medium-speed Chip Mounter
• Max Size of The PCB：600*300mm
• Speed of Mounting：2000-3200cph
• Component：Above 0402 and Less Than30mm Pitch, More Than 0.5m
• Short with Feeder：8mm, 12mm, 16mm, 24mm Feeder
• Quantity of IC Dick：No More Than 2 PCS
• Weight：620kg
• Size：1405 *1400 *1450mm
• Transport Package：Wooden Package, 1 Set,Package, About 650kg
• Specification：CE, ROSH
• Trademark：Termway
• Origin：China
• HS Code：8479896200
• Production Capacity：20,Month

Basic Info.

Model NO. TP50V Type Medium-speed Chip Mounter Max Size of The PCB 600*300mm Speed of Mounting 2000-3200cph Component Above 0402 and Less Than30mm Pitch, More Than 0.5m Short with Feeder 8mm, 12mm, 16mm, 24mm Feeder Quantity of IC Dick No More Than 2 PCS Weight 620kg Size 1405 *1400 *1450mm Transport Package Wooden Package, 1 Set/Package, About 650kg Specification CE, ROSH Trademark Termway Origin China HS Code 8479896200 Production Capacity 20/Month

Product Description

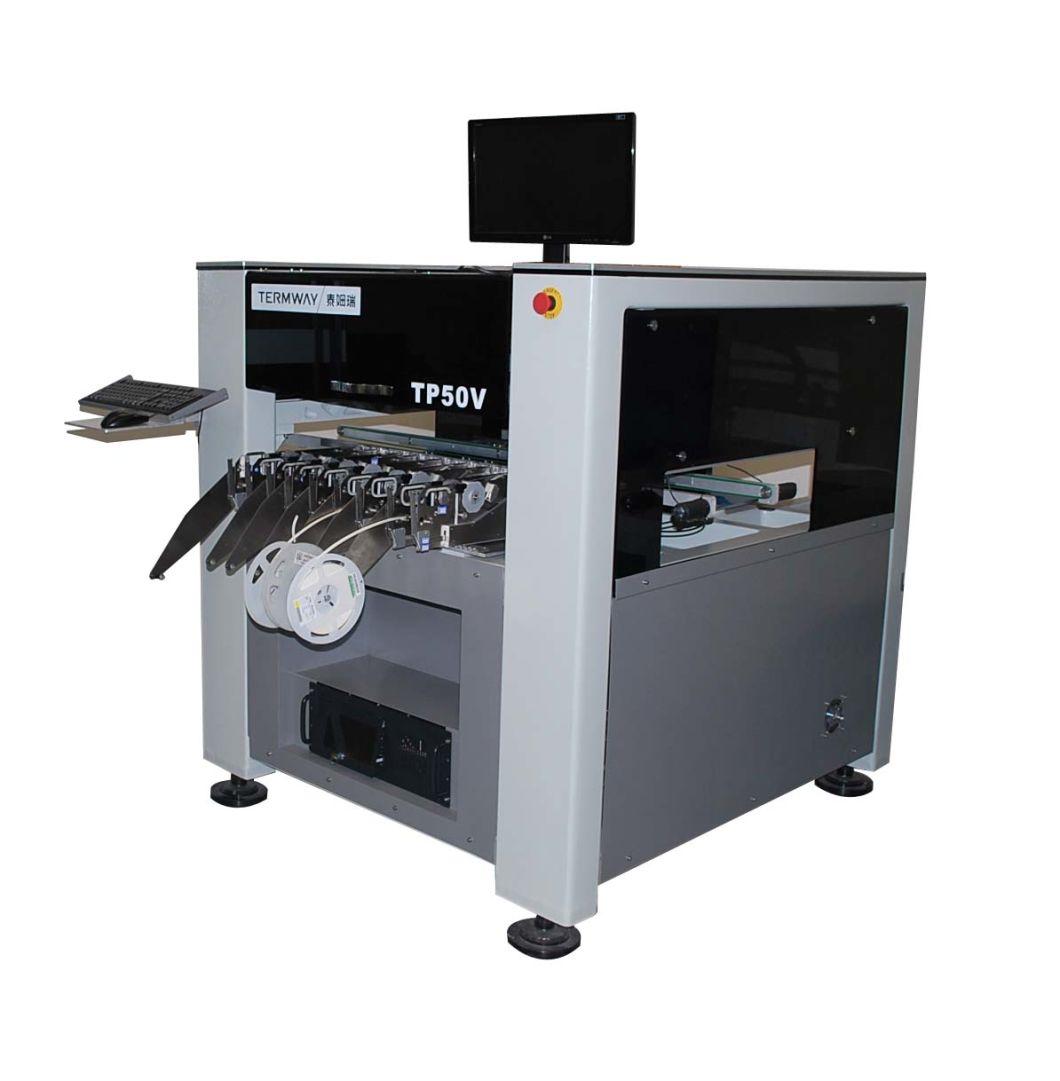

Torch High Speed Automatic Visual Pick and Place Machine/Computer Hardware & Software Placement Machine TP50V2

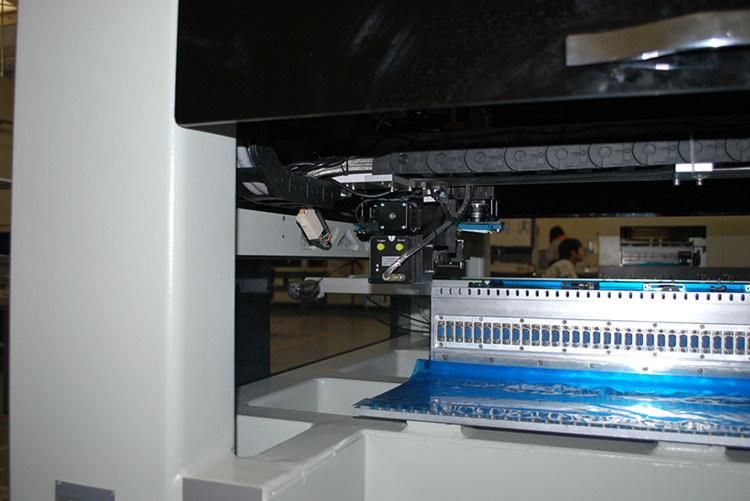

TP series is a fully automatic vision SMT pick and place machine, it can mount a variety of components through the vacuum nozzle can be mounted. It is the most cost effective automatic placement equipment on recently market. This machine is suit for most of the SMD components, such as 0402, SOIC, PLCC and QFP IC; With the vision position system, meet the needs of mounting high precision 0.55mm of QFP IC or BGA. Beside the standard circle reference point, the square, which is not the PCB solder paste screen printing pad ring perforated pad, can also be as a reference point to know.

1. Using imported precision square rail, effectively improve the placement accuracy.
2. Using a unique high-definition optical prism industrial cameras to complete mount high-precision components.
3. With the vision position system, can automatically identify the MARK point, effectively improve SMT production efficiency and placement accuracy.
4. Automatic visional programming, it is no need to input the coordinates of components by manual, programming is simple, easy to learn for beginners and it is convenient and practical.
5. Standard configuration of automatic nozzle replacement system.
6. Cost-effective automatic placement machine, it is most suitable for mass production in middle scale and personal use.
7. Standard configuration: 4 groups of optical vision registration system, 5 PCS of nozzle and a suit of 48 of 8mm feeder slots of feeder seat.
8. Drive by servo motor with high precision ball screw to achieve, you can complete the duplication of high-precision components mount.

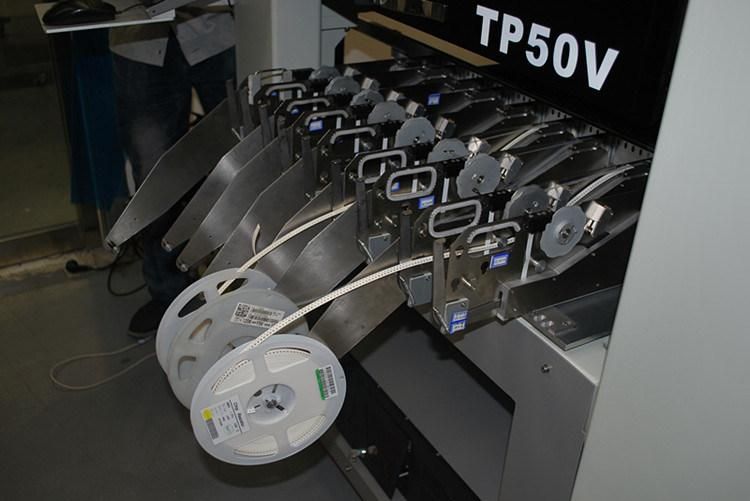

9. Configure variety feeders to meet different mounting of component, max 96PCS of 8mm feeders.
10. Configure the special industrial computer with special software, easy to operate.
11. Easy to input the CAD of the PCB.
12. Can complete the program and mount the Circuit board puzzle stably and simplify.
13. The software can display all the puzzle coordinates, and fine tuning some of the coordinates. To achieve high-precision placement
14. You can set the spacing of each puzzle in the software, and display all the coordinates of discharging based on the distance, also can choose the puzzle no needing to mount in the puzzle.
15. If the circuit board processing have quality problems, can leak location to improve the overall shift.
16. The software can automatically optimize the function of head.
17. Software adds multi-speed transmission features, you can find the best speed through check the moving table and set the speed, so that can increase the stability of the machine in long-time usage.
18. With a high degree of automatic detection and alarm failed components picked up can effectively improve the production quality control.

Standard:
1 Industrial computer 1 set
2 Head 1set
3 Nozzle 5PCS
4 GFTA-48 feeder table 1set
5 MARK camera 2sets
6 QFP high precision industrial camera 1set
7 QFP high clear light source 1set

Optional:
18mm, 12mm, 16mm and 24mm automatic feeder
2IC Disc Feeder(GFQN)
3Components bulk disk(GFSN)
4nozzle
5AQ38 end mirror system(25MM-38MM QFP)
6industrial air pump
7GFTA-48 feeder slots of feeder seat.

Item	TP50V
Max size of the PCB	600× 300mm
Max size of the moving	670× 620mm
Max range of z-axi moving	100mm
Speed of mounting	2000-3200cph
Expected max speed of mounting	4000cph
precision	± 0.02mm
Position way	Vision position
component	Above 0402 and less than30mm pitch, more than 0.5mm IC (50mm is optional)
program	Automatic data import / video learning / keyboard input
Transmission	XY-axis high precision ball screw with precision guide
Tape feeder	Optional 8mm, 12mm, 16mm, 24mm feeder
Short with feeder	8mm, 12mm, 16mm, 24mm feeder
Quantity of feeder	Can be put 96 pcs of 8MM GFTA-08S feeder, the front and back can be put 48pcs
Quantity of IC dick	No more than 2 pcs
Operation system	WINDOWS XP
Compressed air	80psi(0.5Mpa), flue no more than100L/min
Power supply	220V, 50Hz, 3Kw
weight	620Kg
size	1405 × 1400 × 1450mm
