• Model NO.：Yh-bw02
• Model：Yh-Bw02
• Cutting Length：ModelTyh-Bw02 Cutting LengthT5-9999mm Cutting Diam
• Cutting Tolerance：(0.2±0.002×l)mm
• Cutting Diameter：4-32mm
• Power：1.0kw
• Speed：3000-8000PCS,H (L=100mm)
• Voltage：220,110(V)
• Gross Weight：70kg
• Dimension：700*580*450mm
• Transport Package：Double-Layer Export Carton
• Specification：390*350*255mm
• Origin：China
• HS Code：8479819000

Basic Info.

Model NO. Yh-bw02 Model Yh-Bw02 Cutting Length ModelTyh-Bw02 Cutting LengthT5-9999mm Cutting Diam Cutting Tolerance (0.2±0.002×l)mm Cutting Diameter 4-32mm Power 1.0kw Speed 3000-8000PCS/H (L=100mm) Voltage 220/110(V) Gross Weight 70kg Dimension 700*580*450mm Transport Package Double-Layer Export Carton Specification 390*350*255mm Origin China HS Code 8479819000

Product Description

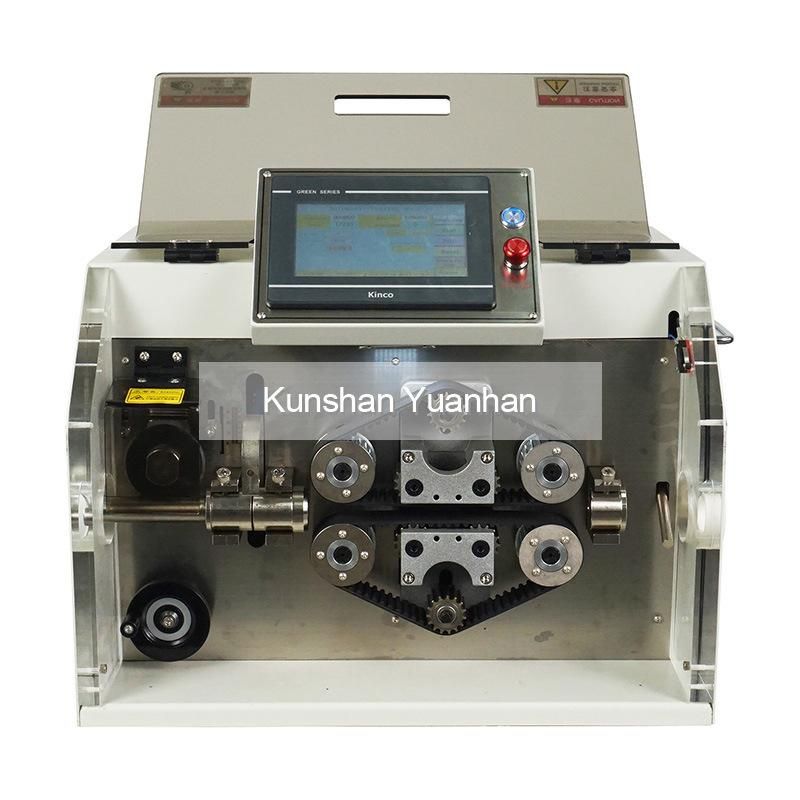

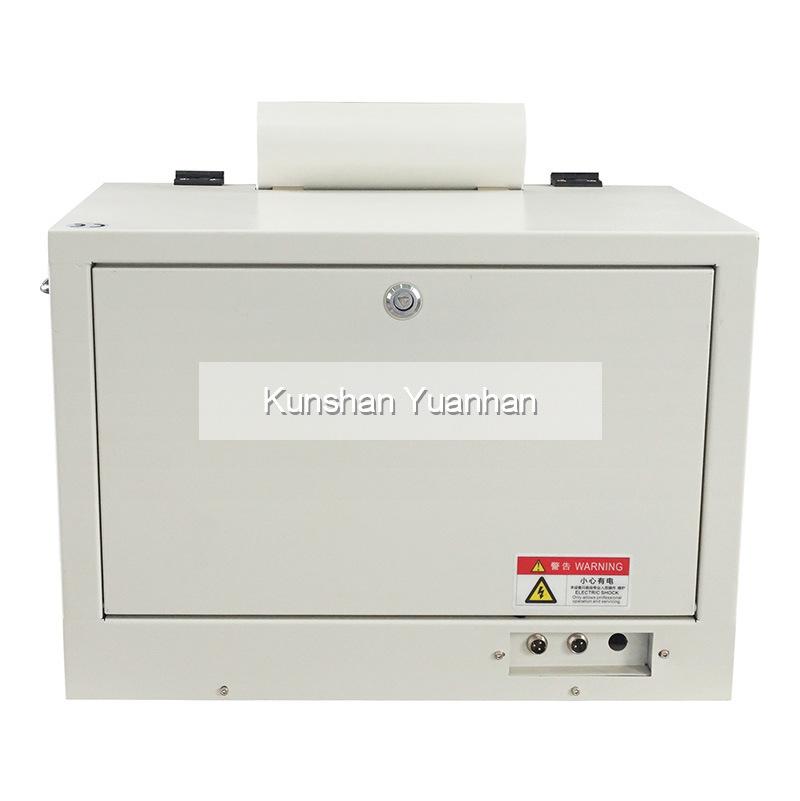

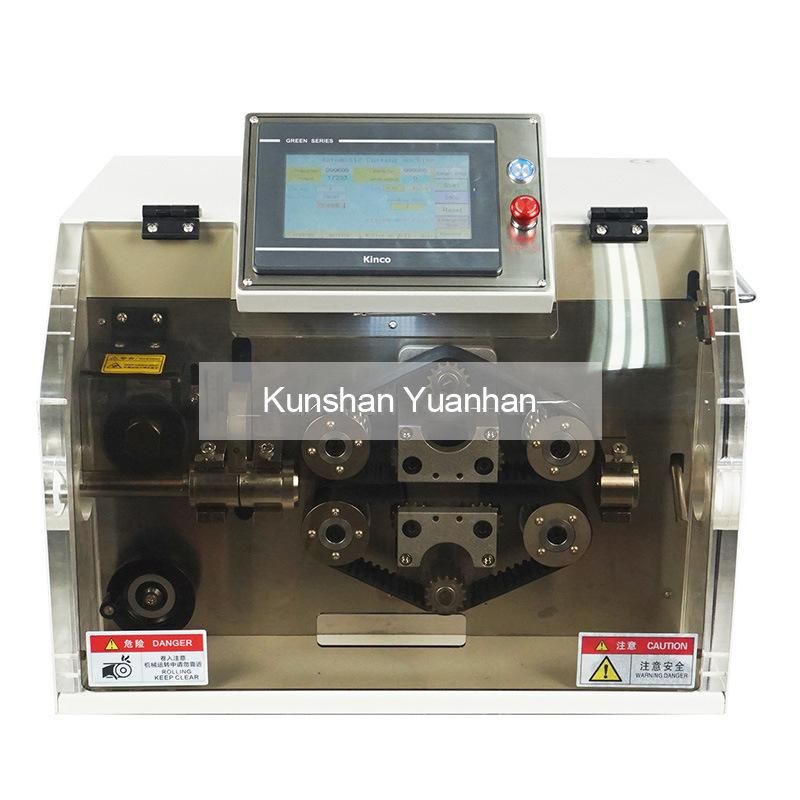

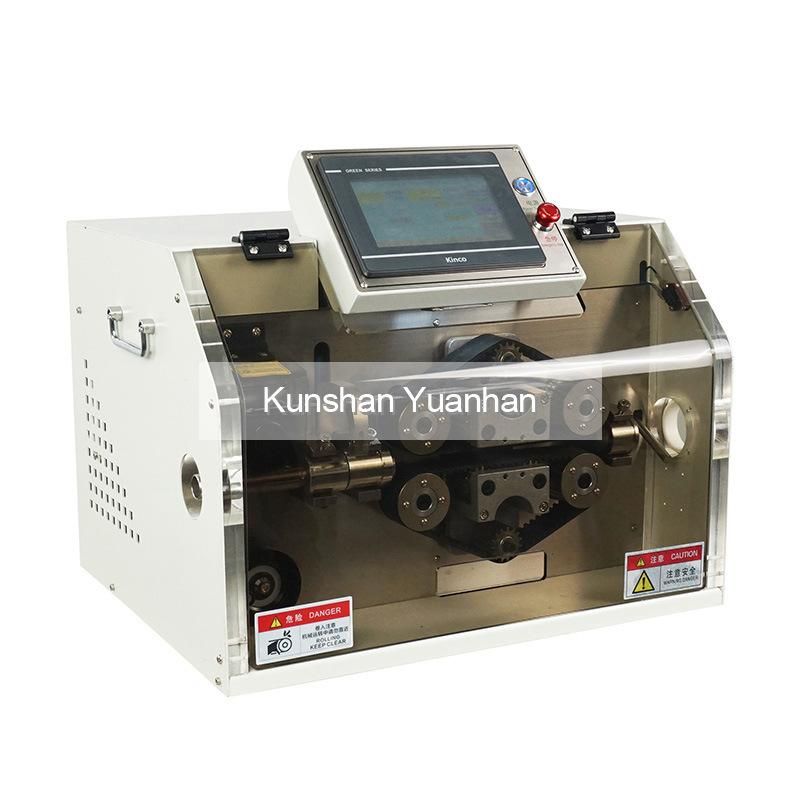

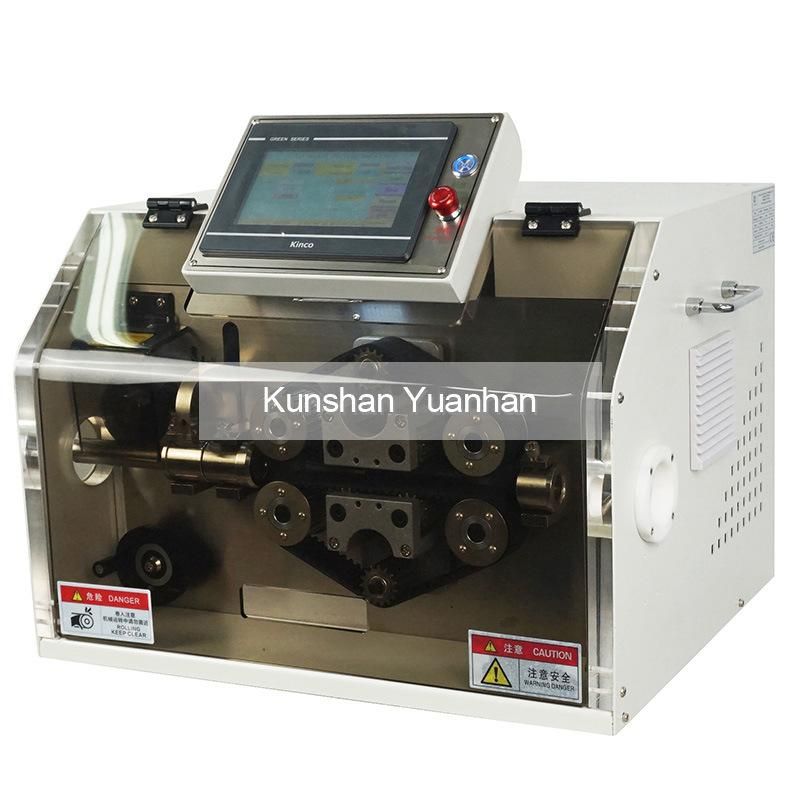

 YH-BW02 High precision corrugated tube cutting machine

This precise corrugated tube cutting and splitting machine specializes in cutting and splitting corrugated tubes, rubber tubes and other tubes, which is efficient and stable......

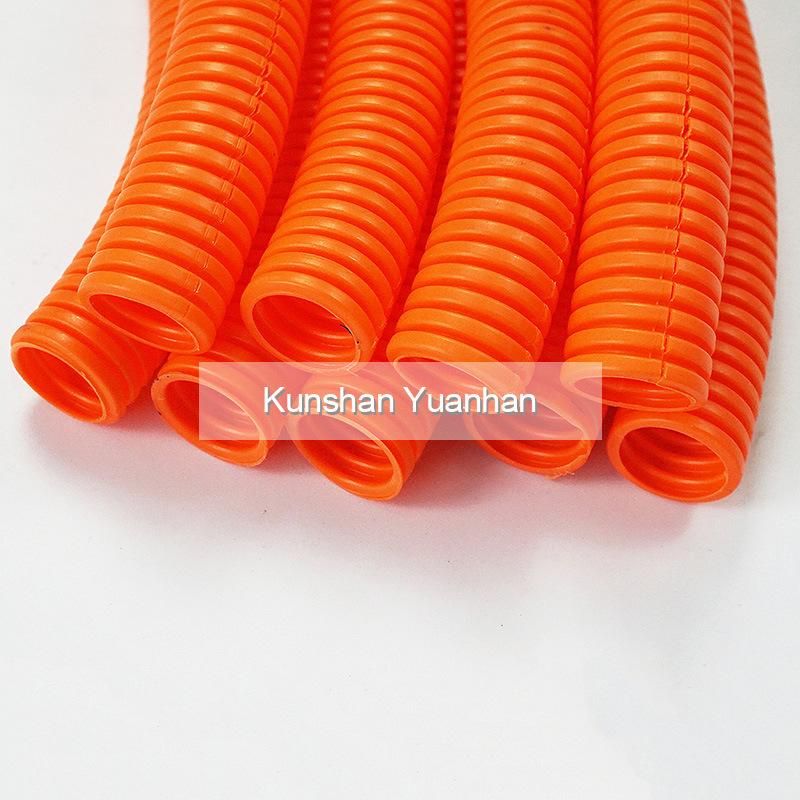

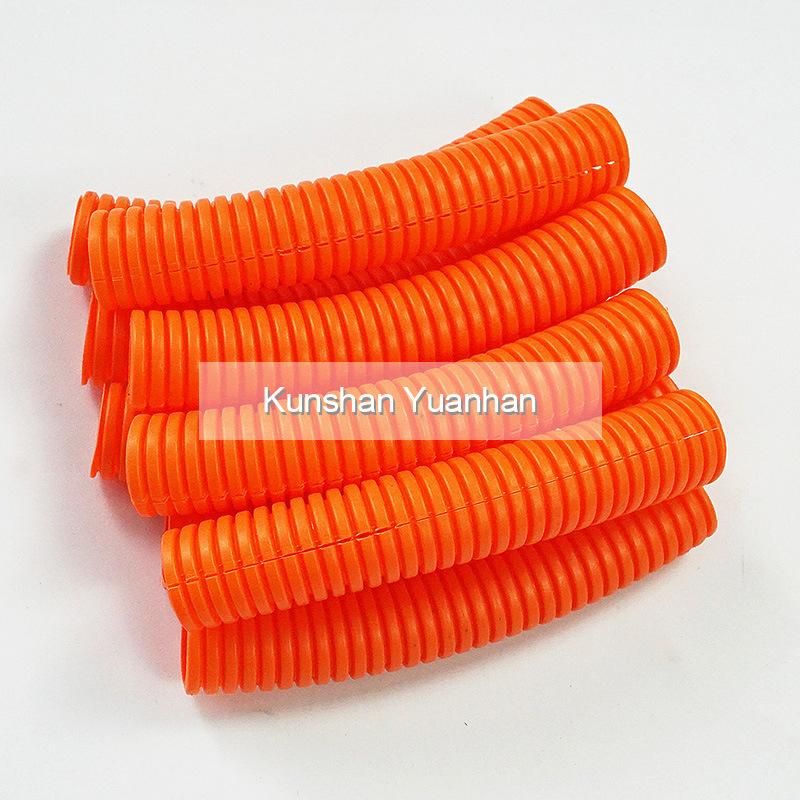

• Cutting corrugated tubes, rubber tubes and other tubes

• Featuring splitting ability

• Efficient, stable and durable

• Easy to understand PLC touch screen control

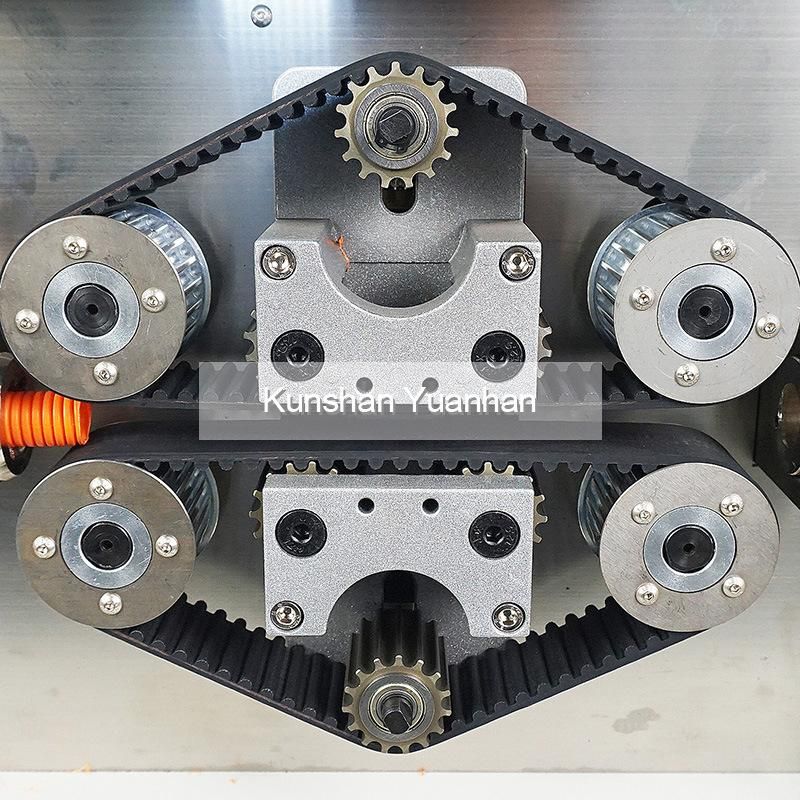

• Stepper motor control with stable feed and precise length

•

Specifications:

Model	YH-BW02
Cutting length	5-9999mm
Cutting diameter	4-32mm (32-42 customizable)
Power	1.0KW
Voltage/Frequency	220/110(V) 50/60Hz
Weight	70kg
Package size	700*580*450mm





Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Any questions, please feel free to contact us! Thank you !
