• Model NO.：VGB-600
• Driven Type：Electric
• Transport Package：Poly Wood Case
• Specification：300x300x80mm or customized
• Trademark：Daheng , OEM
• Origin：Guangzhou China
• HS Code：842489990
• Production Capacity：50PCS , Month

Basic Info.

Model NO. VGB-600 Driven Type Electric Transport Package Poly Wood Case Specification 300x300x80mm or customized Trademark Daheng / OEM Origin Guangzhou China HS Code 842489990 Production Capacity 50PCS / Month

Product Description

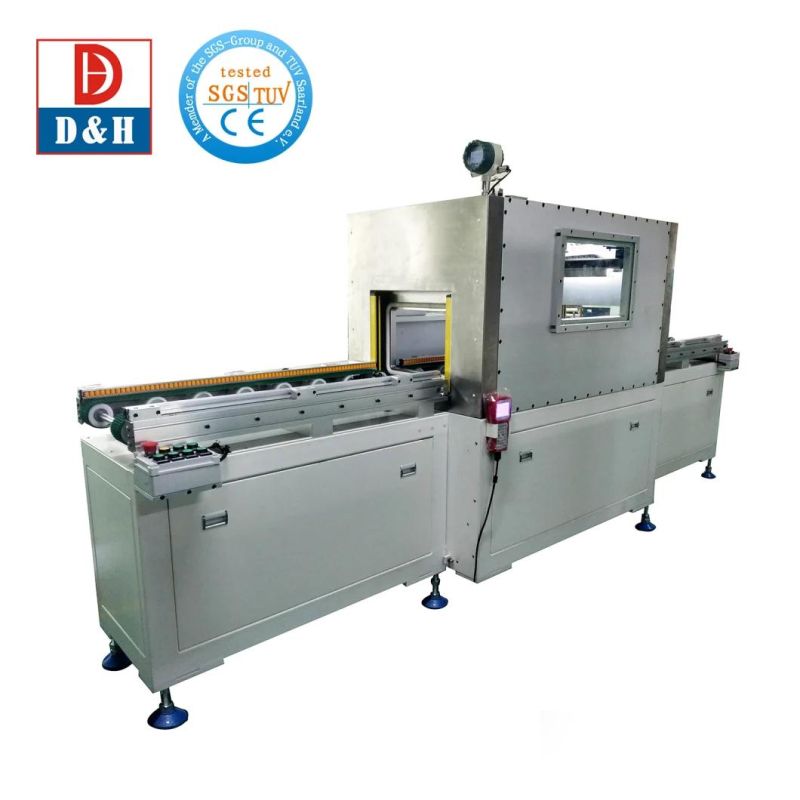

1. Vacuum chamber potting machine for electronics

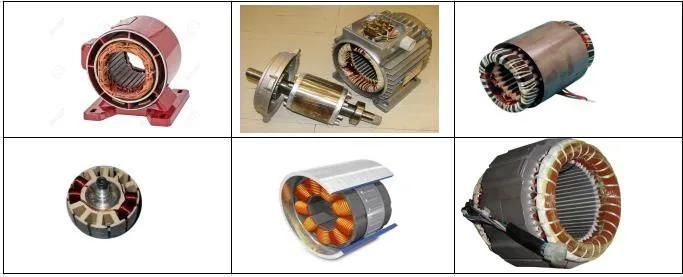

2. Application ;





3.  Machine parameter ;


Model	PGB-700
Dimension	1500*1100*1600mm
XYZ working area	700*700*100mm
AB ratio	100:100-100:10 adjustable
Movement Track	Dot/Line/Arc/Circle
Speed	500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy	±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program	99pcs/more
Input pressure	0.5MPa-0.7MPa
Viscosity	50cps-30000cps (Glue can be heated to decrease viscosity
Operation Method	Manual/Automatic
Meter Pump	Gear pump/Screw pump/Double cylinder plunger pump
Flow Control	Digital Input
Programming method	Teaching programming
Automated control syste	PLC / touch screen (programming, modification, storage, etc.)
Glue control system	AB glue suction valve to achieve independent operation of AB glue
Mixed mode	Dynamic and static optional, instant mixing, easy to clean
Tank	Stainless steel(40L),(25L),(10L)optional
Power supply	220V/50Hz/1200W ( The power consumption without heater)

Glue potting machine what we call A&B glue potting machine , double liquid potting machine or two-component glue potting machine . It is a fully automatic liquid controlling machine which can be sealed,fixed products with waterproof by dispensing , coating ,potting glue to the surface or internal of products . We normally use two-component glue . Glue potting machine can be worked on irregular graphics including dot , line ,arc , circle and so on . It is mainly use for adhesive , filling, coating and sealing .

Glue potting machine always use two-component liquid what we call AB glue . Glue A is main glue and glue B is curing liquid . Of course it is same with one-component . The most widely used glue in the market are epoxy, polyurethane, silicon and other glue with ratio on 1:1,2:1,5:1,4:3,10:1 .

4. Glue Potting machine operating principle

4.1.Put A&B glue into A&B tanks , Tank A and B are with the function to assure glue in good condition .

4.2.It is use two metering pumps to precise gluing and make sure glue A&B dispense the corresponding weight evenly .

4.3. Mixing glue A&B evenly through mixed device and automatically positioning by editing the glue trajectory through corresponding mechanical hand.

4.4 It is setting the corresponding quantitative glue and program to realize automatically positioning to satisfy the glue process .


1.Put A&B glue into A&B tanks , Tank A and B are with the function to assure glue in good condition .

2.It is use two metering pumps to precise gluing and make sure glue A&B dispense the corresponding weight evenly .

3. Mixing glue A&B evenly through mixed device and automatically positioning by editing the glue trajectory through corresponding mechanical hand.

4. It is setting the corresponding quantitative glue and program to realize automatically positioning to satisfy the glue process .
