Two Flier Motor Armature Coil Winding Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：220V
  • Warranty：1 Year
  • After-sales Service：Overseas Service Center Available
  • Size：Middle Size
  • Color：Customized
  • Input Voltage：220V

Base Info

  • Model NO.：ND-LAW-2B
  • Dimension：1100X500X670 mm
  • Turns No：0~999
  • Control Mode：HMI
  • Start Mode：Manual
  • Condition：New
  • Spindle Motor Power：0.75kw
  • Automatic：Semi-Automatic
  • Certification：CE

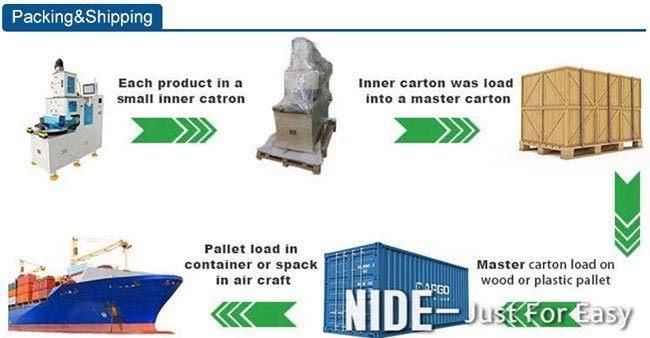

  • Transport Package：Ply-Wooden Case
  • Specification：customized
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description

Armature diameter≤60mmStack length≤100mmWire diameter0.1~1.08mmShaft length170mmAdvance Turns0-9Per-set Turns0-9999Rotation Speed0-1400r/minPower supply voltage220V±10% 50HzAir source pressure0.5~0.7MPaSpindle motor power0.75KW
Working priciple:
By synchronization mechanism of double flyer and 2 PCS 3 phase asynchronous motors, they could make the flyers turn opposite at the same time. While the machine running, the rotor is fixed by 2 PCS winding tools and clamping device, the wires go through wire release and tightening device into sleeve and go out by sliding wheel to wire guiding wheel, then insert to wire slot. Meanwhile, opposite winding at each side could keep the coils to be in the rotor.
Asynchronous motor controls the winding, counter is for turns counting, and manual positioning.

Two Flier Motor Armature Coil Winding Machine
Two Flier Motor Armature Coil Winding MachineTwo Flier Motor Armature Coil Winding MachineTwo Flier Motor Armature Coil Winding Machine
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Two Flier Motor Armature Coil Winding Machine
Two Flier Motor Armature Coil Winding Machine
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

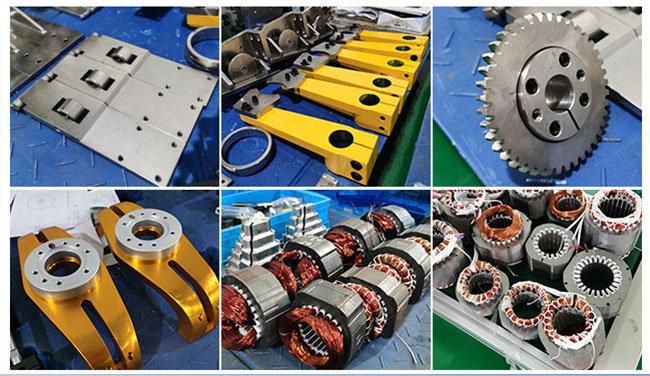

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
