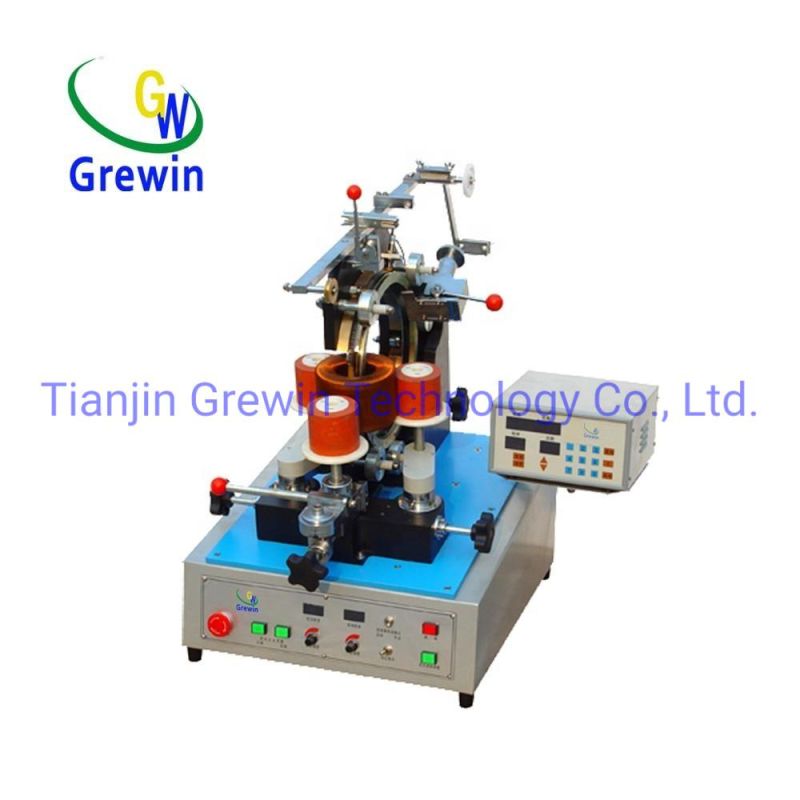

Electric Toroid Transformer Coil Taping Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Voltage：220V
  • Tape Width：12(8, 10, 15)
  • Max.Final Coil.O.D：50-200
  • Min.Final Coil.I.D：35
  • Max.Finalcoil Height：80
  • Controller Storage Capacity Programs：29 Sets

Base Info

  • Model NO.：GWTM-0218
  • Max.Taping Speed：250rpm
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：550*500*1100
  • Weight：100kg
  • Automatic：Automatic
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS,Month

Description

Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)

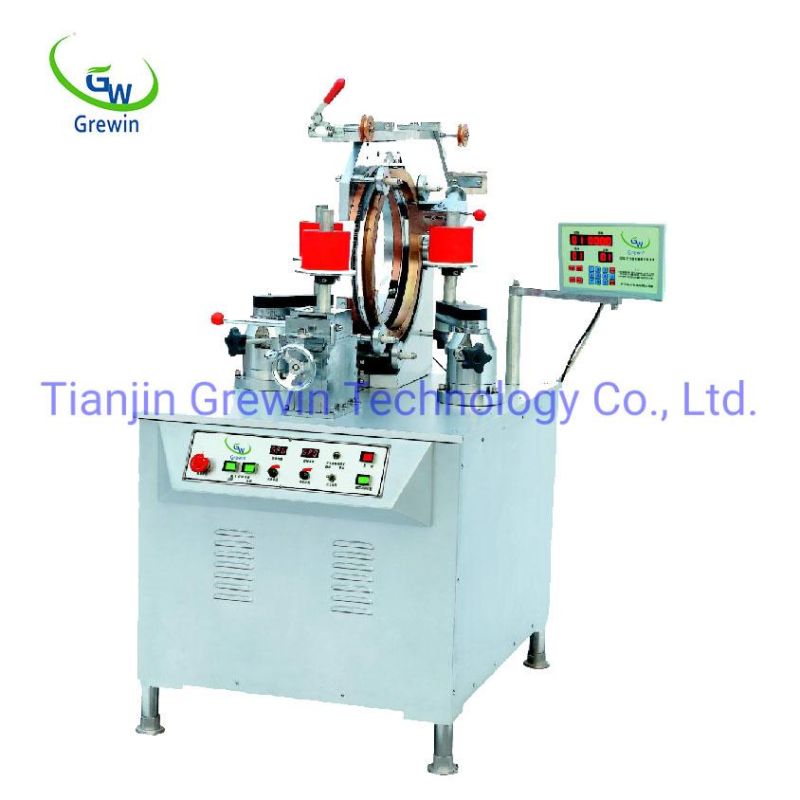

(unit): mmGWJ-0961Tape width15(8,10,12,20)Max. taping speed200 rpmMax. final coil O. D.φ65-430,φ55Tape spacingProportional linkageMin. final coil I. D.φ45-385,φ35Supply voltageAC 220V(50Hz)Max. final coil height80mmMechanical dimensions1000×950×780Controller storage capacity programs29(set)Weight110kg
Electric Toroid Transformer Coil Taping Winding MachineRelated Products


1.GWM-0119 Gear type toroidal coil winding machine

Electric Toroid Transformer Coil Taping Winding Machine
 Wire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm


2.GWM-0719 Floor type toroidal coil winding machine

Electric Toroid Transformer Coil Taping Winding Machine
 Wire diameter1.0-4.50Max.winding speed150rpmMax.final coil.O.Dφ250-800Wire spacingProportional linkageMin.final coil.I.Dφ80Supply voltageAC 220V(50Hz)Max.finalcoil height250Mechanical  dimensions1050x900x1530mmController storage
capacity Programs29 (set)Weight383kgGWM-0719 (winding machine/Mag.OD.400)
(unit): mm

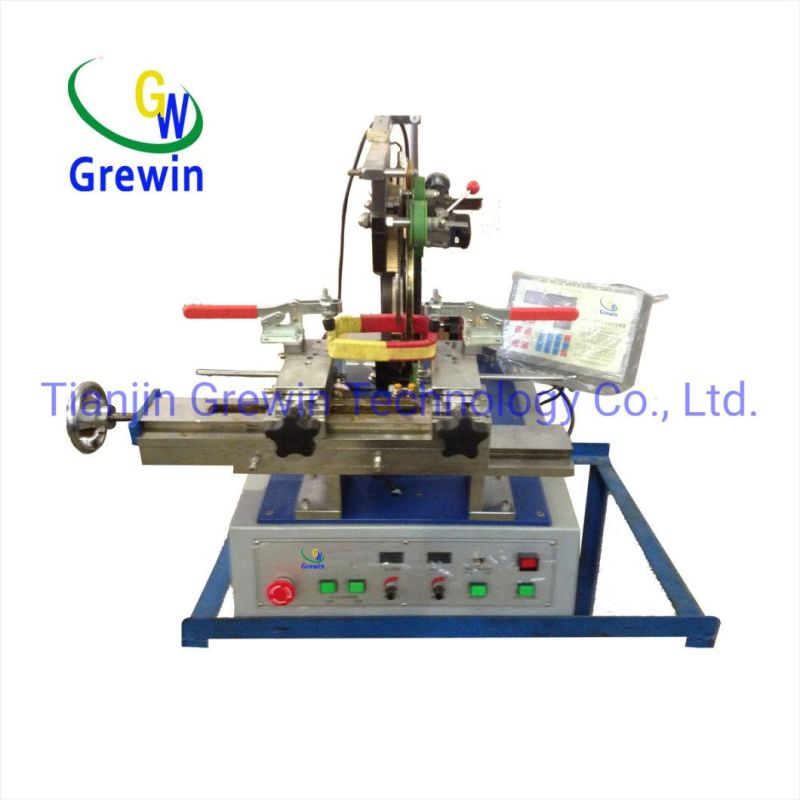

3.GW0950 Mobile rectangular coil winding machineElectric Toroid Transformer Coil Taping Winding MachineWire diameter0.70-2.00Max.winding speed200rpmMax.final coil.O.Dφ65-500,55Wire spacingProportional linkageMin.final coil.I.Dφ50-430,45Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions1000*950*780Controller storage
capacity Programs29 (set)Weight110kgGW0950(winding machine/Mag.OD.400)
(unit): mm
