• Model NO.：GWM-0319B
• Max.Taping Speed：150rpm
• Tape Spacing：Proportional Linkage
• Supply Voltage：AC 220V(50Hz)
• Mechanical Dimensions：550×500×750
• Weight：94kg
• Automatic：Automatic
• Certification：RoHS, CE, ISO
• Transport Package：Export Standard Carton with Strong Pallet
• Specification：VDE, CE
• Trademark：Grewin
• Origin：Tianjin
• HS Code：85045000
• Production Capacity：1000 ,Month

Basic Info.

Model NO. GWM-0319B Max.Taping Speed 150rpm Tape Spacing Proportional Linkage Supply Voltage AC 220V(50Hz) Mechanical Dimensions 550×500×750 Weight 94kg Automatic Automatic Certification RoHS, CE, ISO Transport Package Export Standard Carton with Strong Pallet Specification VDE, CE Trademark Grewin Origin Tianjin HS Code 85045000 Production Capacity 1000 /Month

Product Description

Product Description

SPECIFICATION:

Wire diameter	0.50-1.30	Max.winding speed	200rpm
Max.final coil.O.D	φ60-200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ25	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	80	Mechanical dimensions	550×500×750
Controller storage capacity Programs	29 set	Weight	94kg

FEATURES:

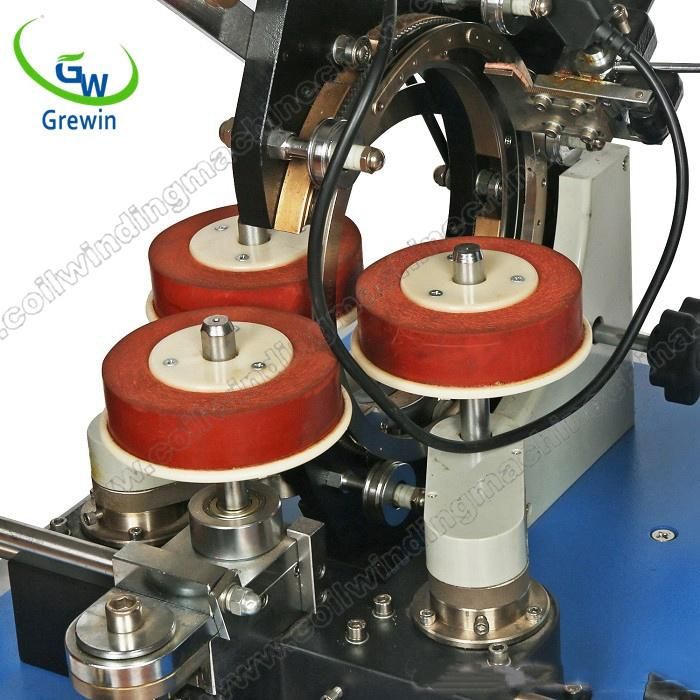

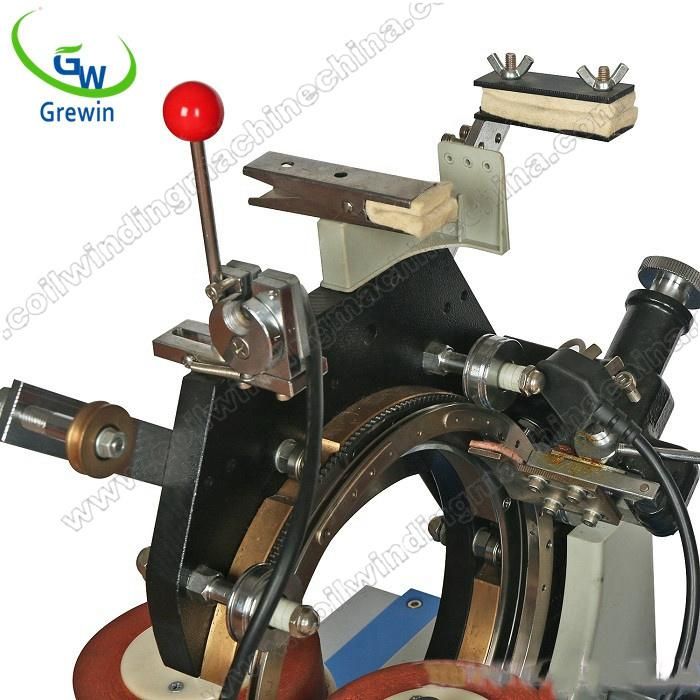

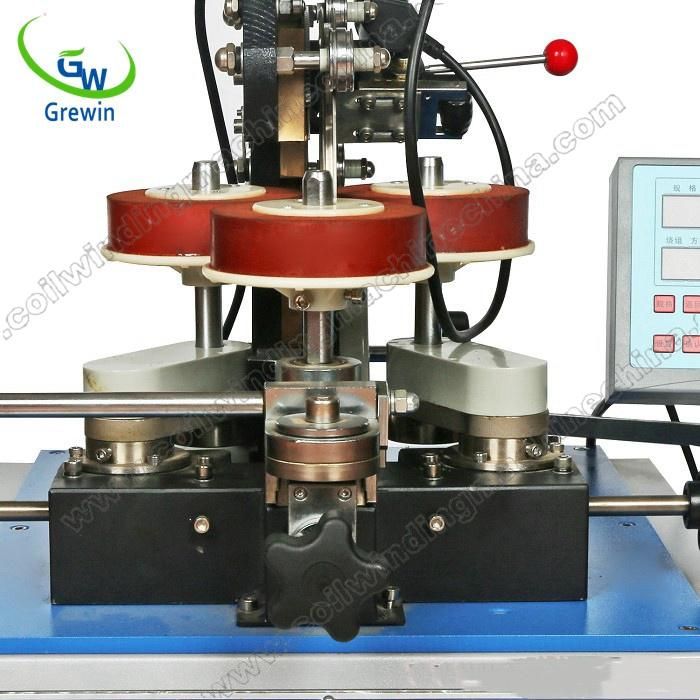

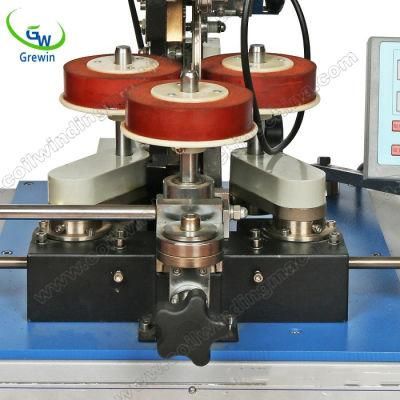

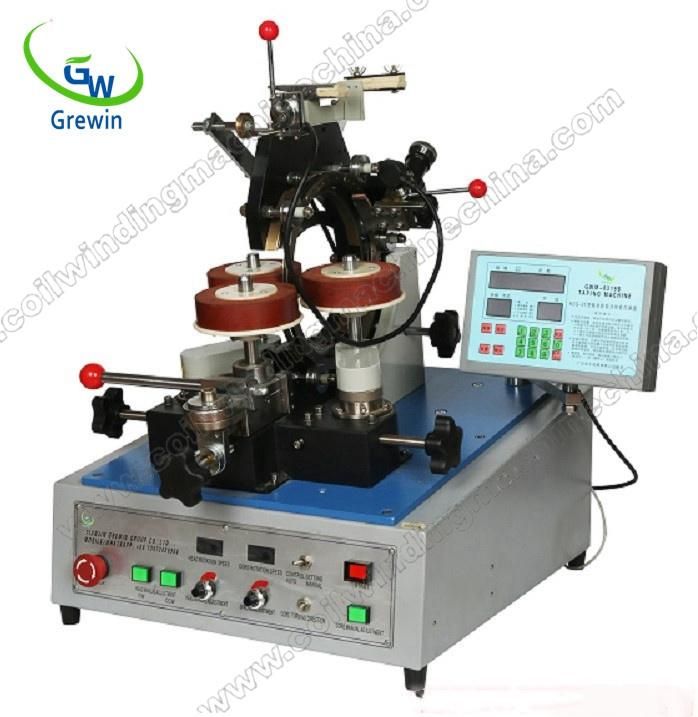

GWM-0319B Toroid Transformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.
The open gap gear rack and hinged gap magazine of Toroid Transformer Winding Machine facilitate core change ,maximzing output.
Easily exchangeable magazines secure maximum flexbility.
Extremely powerful,maintenance free AC motors for main drive and core rotation.
High technical winding shuttle for winding by highest efficiency.
Toroid Transformer Winding Machine can accurately count length of loading by limited-switch.
Toroid Transformer Winding Machine can accurately count turns of winding and taping by photo-electricity sensor.


ADVANTAGES:
Stable machine performance
Communicate parameters in a timely and thoughtful manner
Wide range of application, Large range of Speed adjustment, wide range of the wire diameter, Multi-style of core, Brake tension adjustable, Good settlement for large outer diameter, small inner diameter, heavy wire coils.
High production efficiency, increase winding efficiency by adjustment of suitable brake tension,
Each wiring part guarantee no wire damage.
Parts highly optimized and universal for general use, Easy maintenance
Complete specifications and data
Easy maintenance of equipment


APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.

 Why choose GREWIN INDUSTRIAL GROUP CO.,LTD:Following are our strong advantages:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Service tenet
Provide you the best service with "fast + satisfactory + safe".
Warranty period:
12 months long after the user received the product.
Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period. Product packing:Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.) Packaging: Packaging material: Carton/Wooden case with foam inside.  FAQ:1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea
