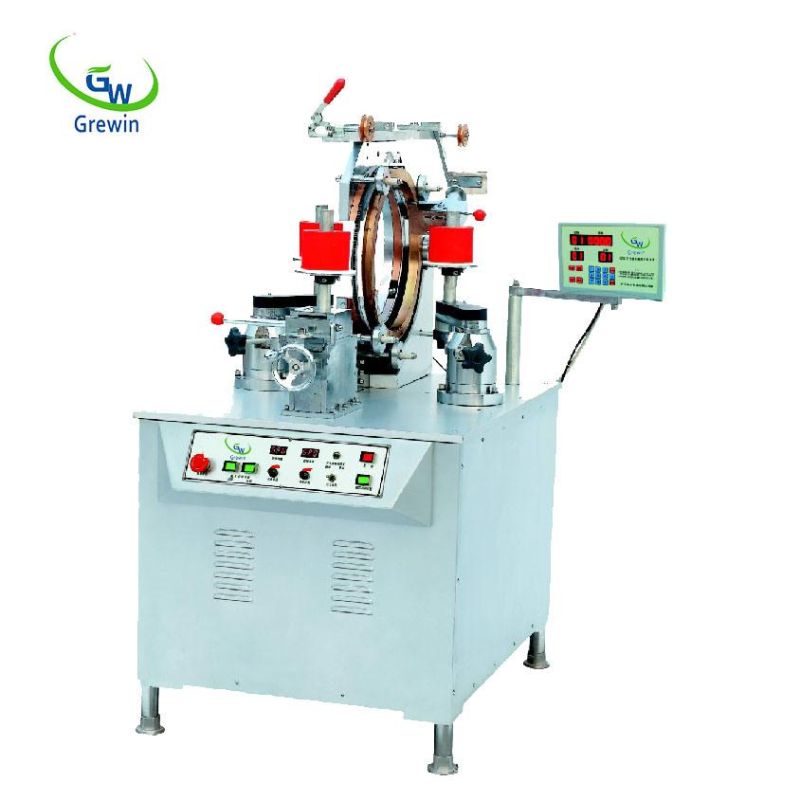

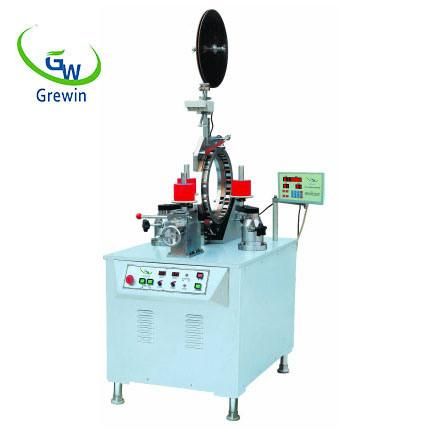

• Model NO.：GWM-0119
• Max.Winding Speed：200rpm
• Wire Spacing：Proportional Linkage
• Supply Voltage：AC 220V(50Hz)
• Mechanical Dimensions：550*500*780
• Weight：94kg
• Automatic：Automatic
• Certification：RoHS, CE, ISO
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：CE
• Trademark：Grewin
• Origin：China
• HS Code：85043190
• Production Capacity：100PCS

Wire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm




Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.



Related Products

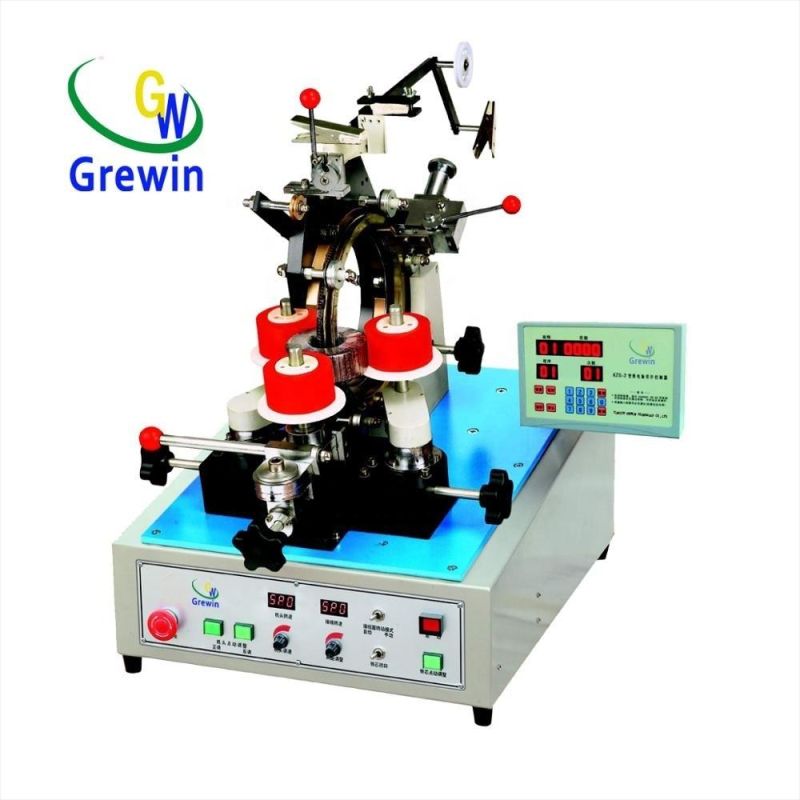

1.GWM-0319B Gear type toroidal coil winding machine


 Wire diameter0.50-1.30Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ25Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550*500*750Controller storage
capacity Programs29 (set)Weight94kgGWM-0319B (winding machine/Mag.OD.400)
(unit): mm


2.GWM-0719 Floor type toroidal coil winding machine


 Wire diameter1.0-4.50Max.winding speed150rpmMax.final coil.O.Dφ250-800Wire spacingProportional linkageMin.final coil.I.Dφ80Supply voltageAC 220V(50Hz)Max.finalcoil height250Mechanical  dimensions1050x900x1530mmController storage
capacity Programs29 (set)Weight383kgGWM-0719 (winding machine/Mag.OD.400)
(unit): mm

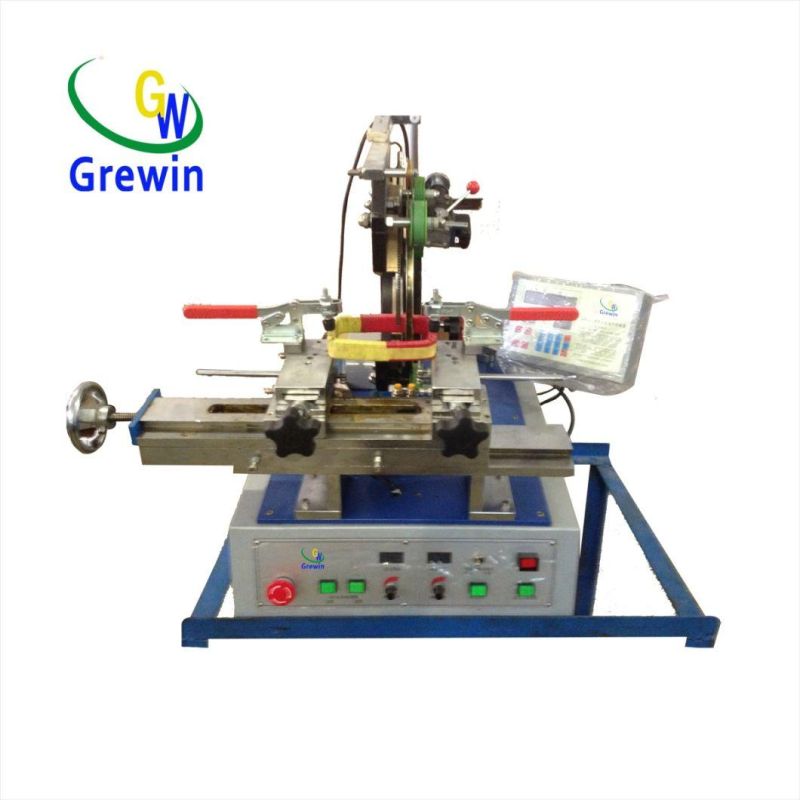

3.GW0950 Mobile rectangular coil winding machineWire diameter0.70-2.00Max.winding speed200rpmMax.final coil.O.Dφ65-500,55Wire spacingProportional linkageMin.final coil.I.Dφ50-430,45Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions1000*950*780Controller storage
capacity Programs29 (set)Weight110kgGW0950(winding machine/Mag.OD.400)
(unit): mm

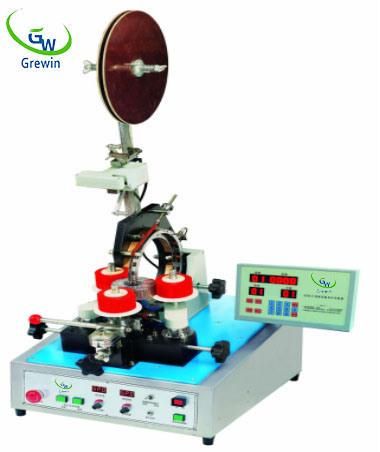

4.GWTM-0218  Gear type automatic wrapping insulating tape machine



 Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)
(unit): mm


5.GWTM-0418 Gear type automatic wrapping insulating tape machine



 Tape width15(20,25,30)Max.taping speed120rpmMax.final coil.O.Dφ130-650Tape spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensions9000×600×1800 Controller storage
capacity Programs29 (set)Weight240kgGWTM-0418 (taping machine/Mag.OD.400)
(unit): mm

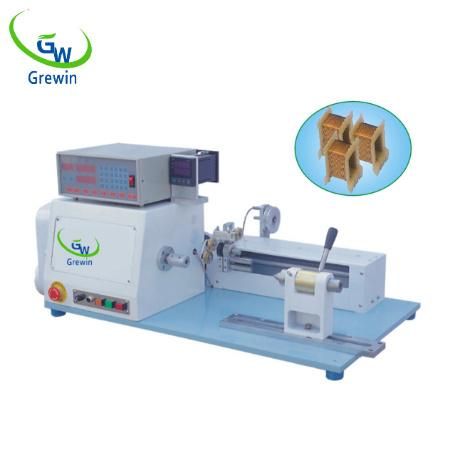

6.GW-9800 coil winding machine

 wire size0.08-1.0mmMax.winding speed3000rpmspread width200mmwinding motor1/8HP DC motorwinding width120mmSupply voltageAC 220V(50Hz)spread motor4-phase stepping motorMechanical  dimensions760×680×720 memory Programs999Weight37kgGW-9800 (winding machine/Mag.OD.400)
(unit): mm

7.GW-976 coil winding machine

 wire size0.02-0.8mmMax.winding speed6000rpmspread width100mmwinding motor1/2HP DC motorwinding width150mmSupply voltageAC 220V(50Hz)spread motor4-phase stepping motorMechanical  dimensions450×670×100 memory Programs999Weight45kgGW-976 (winding machine/Mag.OD.400)
(unit): mm

8.GW-9751 coil winding machine

 wire size0.5-1.6mmMax.winding speed3000rpmspread width200mmwinding motor1/2HP DC motorwinding width200mmSupply voltageAC 220V(50Hz)spread motor4-phase stepping motorMechanical  dimensions390×580×430 memory Programs999Weight32kgGW-9751 (winding machine/Mag.OD.400)
(unit): mm

Of course we have other models, please contact us if you need.

Contect us
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
