• Model NO.：WG-3001
• Power Consumption：Min.20W-Max.380W
• Stroke：30mm
• Working Pressure：3ton
• Crimp Width：0.1~4mm2
• Transport Package：Wooden Case
• Specification：530*400*830mm
• Trademark：Wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-3001 Power Consumption Min.20W-Max.380W Stroke 30mm Working Pressure 3ton Crimp Width 0.1~4mm2 Transport Package Wooden Case Specification 530*400*830mm Trademark Wingud Origin China Production Capacity 120/Month

Product Description

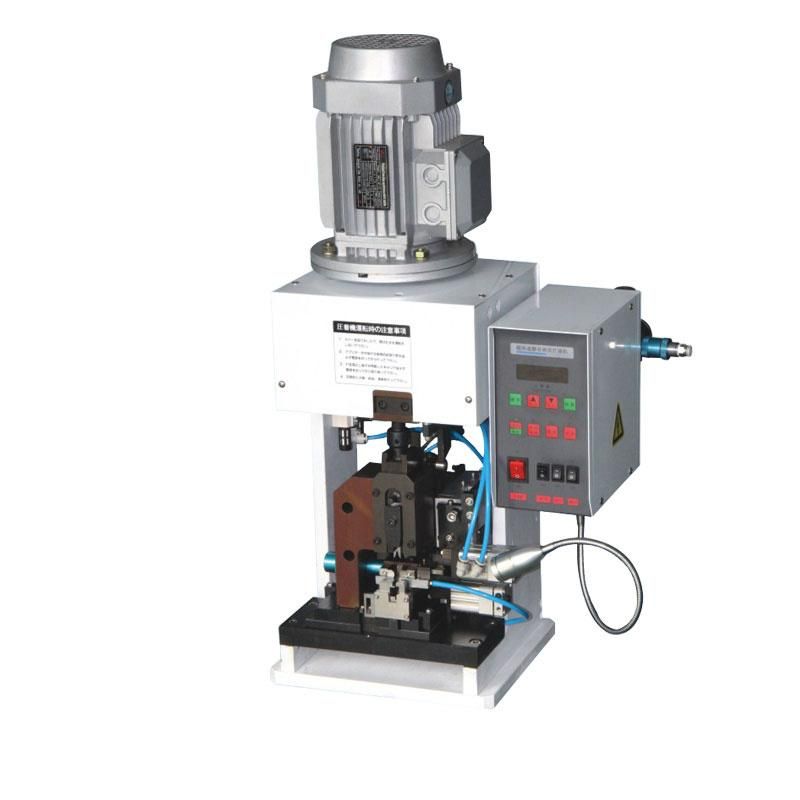

WG-3001 Automatic Stripping Crimping Machine for Multi-Cores Cable
Characteristics
This is a special all-in-one machine for automatic cutting, stripping, crimping for the multi-core wire, it can improve the processing efficiency, reduce labor, is convenient and fast.

Production range: (except the slant soft wire)           1. Stripping range: 2~4 cores   shortest stripping 35mm
                                      5~10 cores  shortest stripping 40mm         2. Crimping range: minimum core wire ¢0.8mm;   maximum core wire ¢4.0mm
                                       Maximum crimping with 12 cores in one time.
        3.Efficiency of operations: 5500PCS/h for 12 core wire

Machine configuration:
This product uses domestic Shenli closed loop motor, AirTAC pneumatic original air parts, Xinjie PLC touch screen, all the parts are through confidential processed.


Technical Parameter:

Model	WG-3001 Automatic Stripping Crimping Machine for Multi-Cores Cable
Dimensions	650mm*450mm*1350mm
Weight	90KG
Power supply	220V  50/60HZ
Power Consumption	50W
