• Model NO.：KTE-1000D

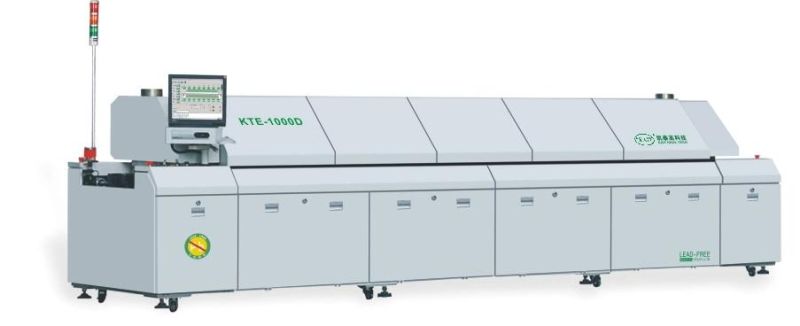

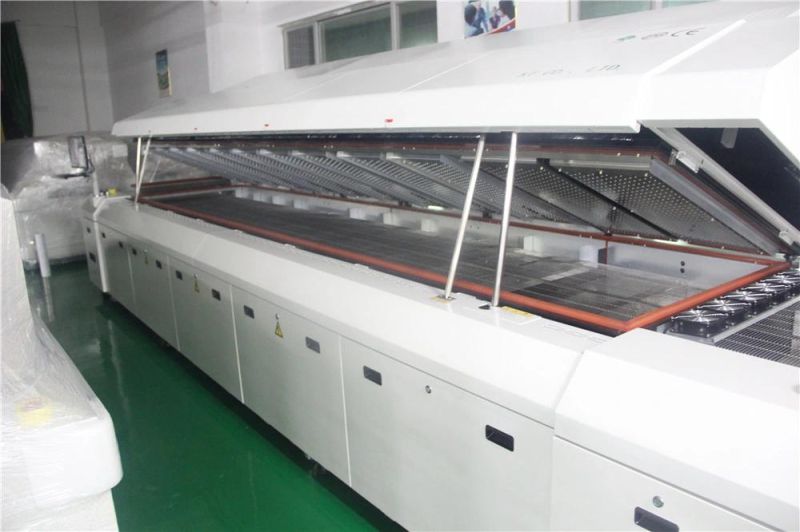

• Product Name：Dual Rails 10 Zones Reflow Oven Kte-1000d
• Lead Time：20-50days
• Usage：SMT Assembly Line
• Quality：100% Tested
• Weight：3050kg
• Transport Package：Vacuum Packing
• Specification：6135*1360*1490cm
• Trademark：KAIT
• Origin：China
• Production Capacity：50set,Month

Model

KTE-1000D

Machine parameter

Dimension(L × W × H)

6135*1610*1490

Color

Computer grey

Weight

Approx 3050kg

Number of heating zone

Top 10/Bottom 10

Length of heating zone

3892mm

Number of cooling zone

UP2 cooling air conversion

Rectifying plate structure

Galvanized sheet

Exhaust volume requiement

10m³/min*2(Exhausts)

Control system

Power supply requiement

3 phase ,380v 50/60HZ(Option:3 phase ,220v 50/60HZ

Total power

83KW

Startup power

38KW

Normal power consumption

12KW

Warming Time

Approx:35min

Temperature control range

Room Temperature -300ºC

Temperature control method

PID close loop control + SSR driving

Temperature control precision

±1ºC

Temperature deviation on PCB

±1.5ºC(by RM board test standard)

Data storage

Process data and status storage

Abnormal alarm

Abnormal temperature(extra-high/extra low temperature )

Color tower

Tower light(yellow-warning;green normal;red -Abnormal

Conveyor system

Max width of PCB

250X2(single lane 50-450mm)

Conveyor  direction

L→R(option:R→L)

Fixed rail side

Front and rear fixed,2 central rail adjustable

PCB transmisson agent

Chain+mesh

PCB Top height

Top 30mm/Bottom 25mm

Conveyor height

900±20mm

Conveyor speed

300-2000mm/min

Option

Dual-rail converyor

 Dual line with"D",rail 1.3 or 1.4 fixed ,Max PCB is 250*250mm
