• Model NO.：A5
• Origin：Shenzhen
• HS Code：851419
• Production Capacity：500 Set,Month

Basic Info.

Model NO. A5 Origin Shenzhen HS Code 851419 Production Capacity 500 Set/Month

Product Description

Introduction:
No.1 The unique advanced long life heating system

1. The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to accelerate the temperature ramp up speed , improving the thermal efficiency .And the special forced-air circulation structure make PCB and the component heated uniform and eliminate the "shadow effect" completely .

2. Special high temperature barrier structure (the United States CRS high density insulation rock wool) in heating preservation system and special iron in passage .it suit for lead-free soldering with the flux removal system to protect environment .

3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise or vibration and convenient for maintenance .

4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Machine hood can open completely, convenient for cleanup & maintenance.

No.2 Smooth and reliable transmission system

1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1200mm/min.

2. Independent roller structure and support and match with accompany stainless mesh belt to make the running smoothly and the speed precision is up to ±20 mm/min .

3. Special stainless steel mesh belt: durable and wear-resistant and long life time.

No.3 Stable and reliable electrical control system
 1. It adopts imported thermostat control which owns fuzzy logic and PID close loop control. It can fast response to temperature changes and ensure more temperature balanced by PID intelligent operation and automatic control heating .

2. Using Fanda thermocouple imported from Taiwan to each temperature zone ,it can fast and sensitive induct the changes in each temperature zone ,response and control timely ,compensate the temperature balance in each zone .
 3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively .Non-contact output and fuzzy control function by thermostat ,can monitoring the changes in the zone temperature, controlling the heating device by minimum pulse ,ensuring the high precision of the temperature control & the uniform temperature distribution. The length ,direction ,temperature distribution ,all of these meet IPC standards .
4.  Heat energy is abundant, heat up fast, it's only need 20 minutes from room temperature to set-point temperature.

5 .Failure diagnosis, visual & audio alarm.
 6. Delay shutdown protection function, uniform cooling after the shutdown: prevent hardware from thermal damage.
   Specifications:

Model	A5
Heating Zone	Top 5 / Bottom 5
Heating Passage	1800mm
Heating Style	Up Hot Air Bottom IR
Cooling Style	Force Cooling Air
Mesh Width	400mm
PCB Max Width	400mm
Conveyor Direction	Left-Right(R-L optional)
Conveyor Height	880±20mm
Conveyor Style	Mesh Belt
Conveyor Speed	0-1500mm/min
Power	5 Lines 3 Phase AC 380V 50/60Hz
Startup Consumption	12KW
Steady Consumption	5kw
Ramp Up Time	Aprrox 15mins
Temperature Set-point	Room Temperature to 300°C
Temperature Control	PID Temperature closed loop control
Deviation Temperature on PCB	±2°C
Abnormal Alarm	Equipped Temperature Abnormal Alarm Device
Dimensions	L2800*W800*1320mm
Net Weight	450kgs

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

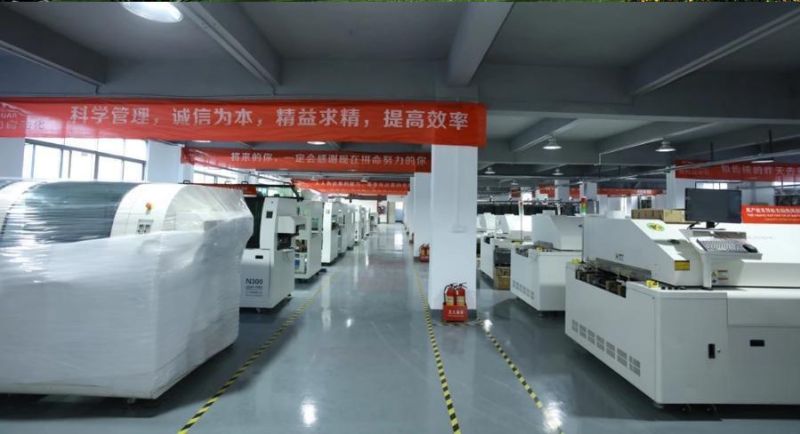

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

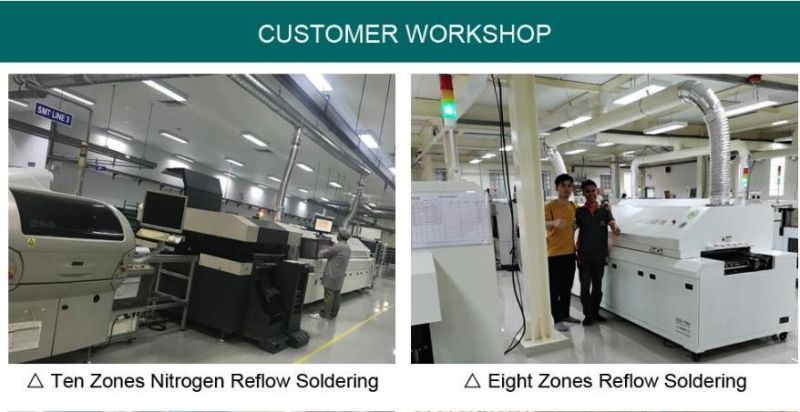

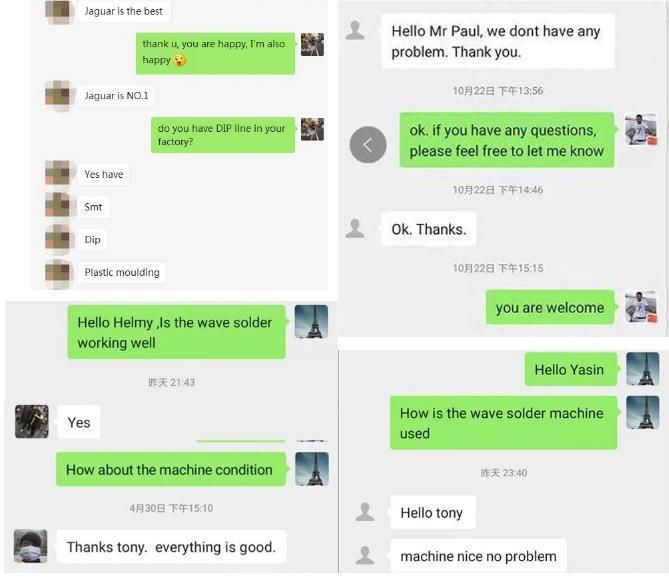

Customer and Feedback:
