Toroidal Transformer and Inductor Transformer Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Voltage：220V
  • Spread Motor：Stepping Motor
  • Controller Storage Capacity Programs：999 Sets
  • Winding Motor：1,2HP DC Motor
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：1000X830X1130

Base Info

  • Model NO.：ACGW22-60
  • Weight：80kg
  • Automatic：Automatic
  • Certification：RoHS, CE, ISO
  • Key Word：Transformer Coil Winding Machine
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS

Description

Wire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm
 Wire diameter0.70-2.00Max.winding speed200rpmMax.final coil.O.Dφ65-500,55Wire spacingProportional linkageMin.final coil.I.Dφ50-430,45Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions1000*950*780Controller storage
capacity Programs29 (set)Weight110kgGW0950(winding machine/Mag.OD.400)
(unit): mm4.GW-9761i Digital CNC Wire Coil Winding Machine
Toroidal Transformer and Inductor Transformer Winding Machine

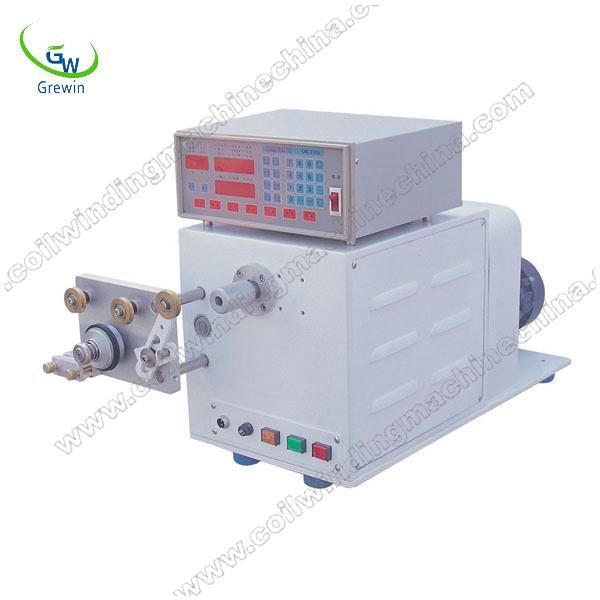

SPECIFICATION:
Spindles1Spread Motor4-Phase stepping Motor
Wire diameter0.02-0.8mmMax Speed6000rpm
Spread Pitch0-9.999mmMemory999 Sequences
Spread Width100mm(Max)Power SourceAC 220V/110V±10%,50/60MHZ
Winding Width150mm(Max)Weight45×67×100
Main Motor1/2HP DC MotorDimension45

FEATURES:
The ceramic rollers of Digital CNC Wire Coil Winding Machine prevent enamel from high temperature.
Digital CNC Wire Coil Winding Machine has multiple spindles synchronal winding for highest efficiency.
Digital CNC Wire Coil Winding Machine has more convenience by using foot-switch.
Nine winding parameters and 5 options can be independently assigned for each step.
Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

ADVANTAGES:
The position of the winding point can be inputted by teaching, and the current position of the spool can be displayed.
Adopt multi - wire rows, four different diameters can be installed at the same time.
It can be replaced to make double axis synchronous winding machine.
The winding point, width, line distance and speed can be set in sections to achieve the purpose of multi-section and multi-speed.
Single axis large torque Digital CNC Wire Coil Winding Machine is widely used in rectifier and other medium coils, solenoid valves, high-power transformers.
The program can be changed according to the need to achieve multi-function
Of course we have other models, please contact us if you need.

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
