• Model NO.：BXBW1-55-80G
• Air Pressure：0.4MPa
• Dimension：1850 X2100 X2000mm
• Wire Diameter Range：0.5-1.8mm
• Automatic：Automatic
• Certification：CE
• Transport Package：Ply-Wooden Case
• Specification：customized
• Trademark：NIDE
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Product name: Automatic vehicle calternator stator coil winding machineWire diameter: 0.5~1.8mmMax stack height: 55mmMax stator OD: 160mmMax stator ID: 80mmJump file number: 250RPMwinding stations: 2Air source: ≥0.4MPaPower supply: 380V 50/60HZ 4KWWeight: about 1200KGDimension:(L)1850*(W)2100*(H)2000mm

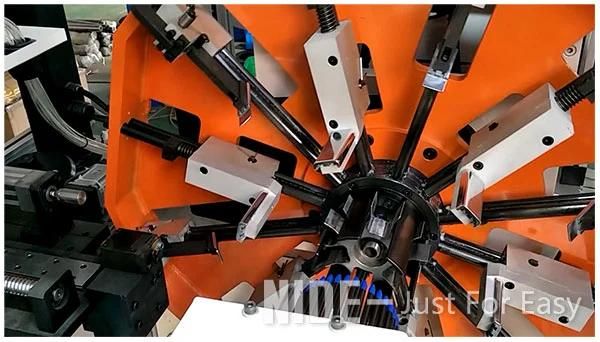

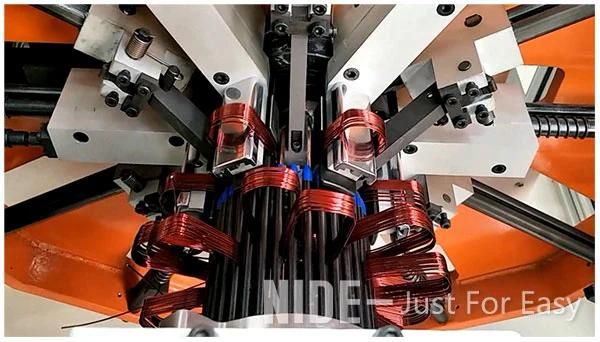

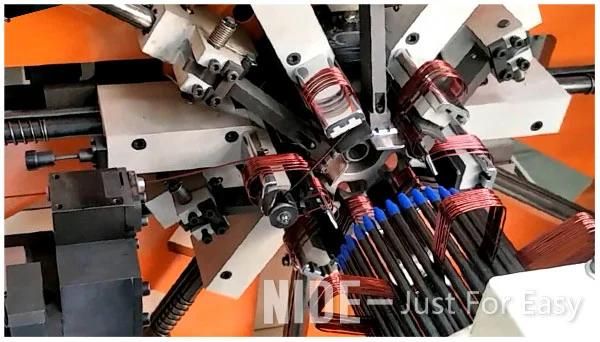

(4). The alternator stator wave winding machine picture show

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

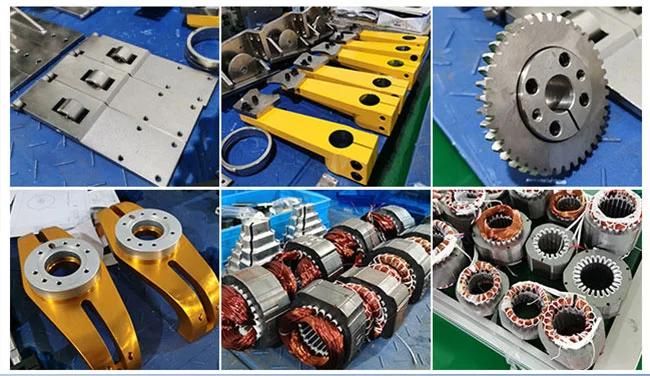

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
