• Model NO.：XJ--300
• Motor：Siemens
• Inverter：Japan-Yaskawa
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Guangdong, Cina
• HS Code：8479400000
• Production Capacity：100sets,Year

Basic Info.

Model NO. XJ--300 Motor Siemens Inverter Japan-Yaskawa Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Guangdong, Cina HS Code 8479400000 Production Capacity 100sets/Year

Product Description

Numerical Control Horizontal Double Layers Wrapping Machine

1). Purpose
Used for twisted wire and parallel wire single/double layers continuous centering tapping.

 2). Main specification
A. Max rotate speed: 2500RPM
B. Max wire speed: 35M/min
C. Input wire diameter: AWG32-AWG20
D. Tapping material: Aluminum foil tape,cotton paper tape,transparent tape,mica tape,teflon tape etc.
E. Machine color: As requested
F. Operation direction: Right hand or Left hand (As requested)

3). Main parts
(A) ø400-500mm four-heads dynamic pay-off
(B) ø350mm centering tapping device
(C) Electrical control cabinet(touch screen)
(D) Automatic heating machine
(E) ø500mm Axis row-type take up machine

4). Brand of main accessories
A. Motor: Siemens
B. Frequency converter: Yaskawa(Japan) or Schneider (France)
C. Bearing: NSK,KOYO (Japan)
D. Electrical component: Schneider(France) or SHIHLIN(Taiwan)
E. PLC controller: Siemens or FATEK(Taiwan)
F. Touch screen: Tontek (Taiwan) or Pro-face(international brand

5). Technical Parameters:

Model	XJ-500
Inlet wire specification	AWG32 - AWG20
Taping materical	aluminum foil tape, myra tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Rotate speed	Max. 2000rpm / Max. 20m/min
Main power	Adjust the speed by 1HP motor driver, taping drum linkage with capstan motor
Taping tension	Taping tension automatic calculation tracking and keep constant from start to end,  no need any artificial adjustment.
Melting oven	Automatic flexible melting oven, OMRON temperature control, temperature tolerance:±1°C
Take -up tension	Take-up tension keep constant from start to end, no need any artificial adjustment.
Traversing type	Axis-row type take-up, no damage during the traversing process, traversing pitch and width can be adjusted.
Machine dimension	4250mm × 1500mm × 1900mm

6). Company Information

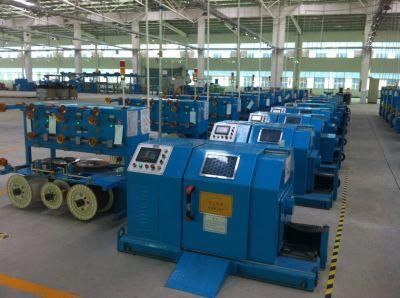

 Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipmentR&D, design and manufacture.With the continuous improvement of production technology level and Constantlyincreasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfectand excellent.
 Q&A
 Are you a manufacturer or trading company?
 We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 6000 spuare meters production workshop and office space.
How can we get to your factory to see the machines works?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China. Only 40 minutes by car from Shenzhen Baoan International airport to our factory; Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory; Only 17 minutes by high speed rail from Guangzhou south station to Humen.
