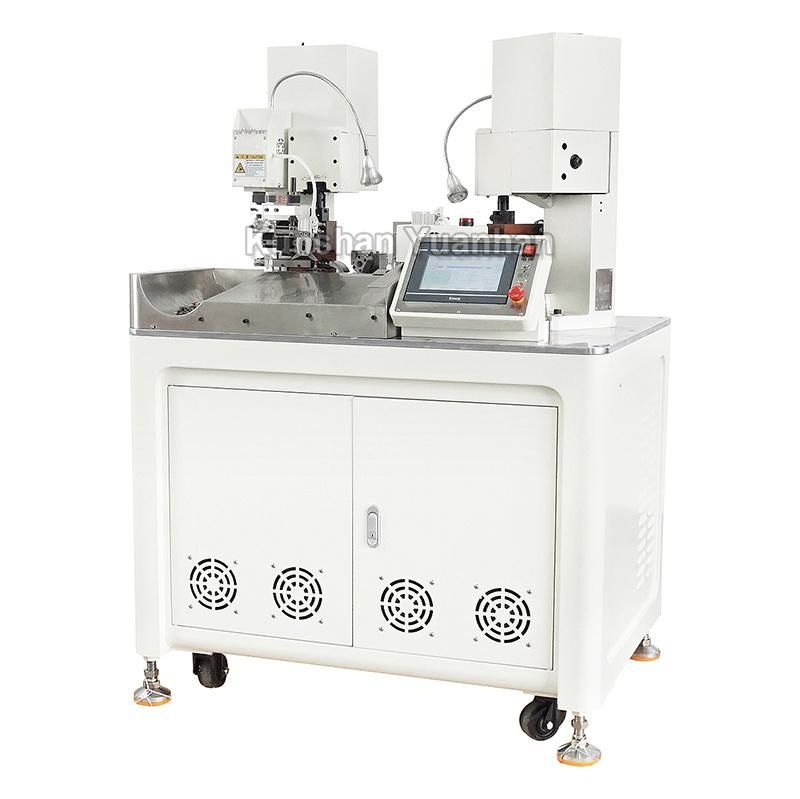

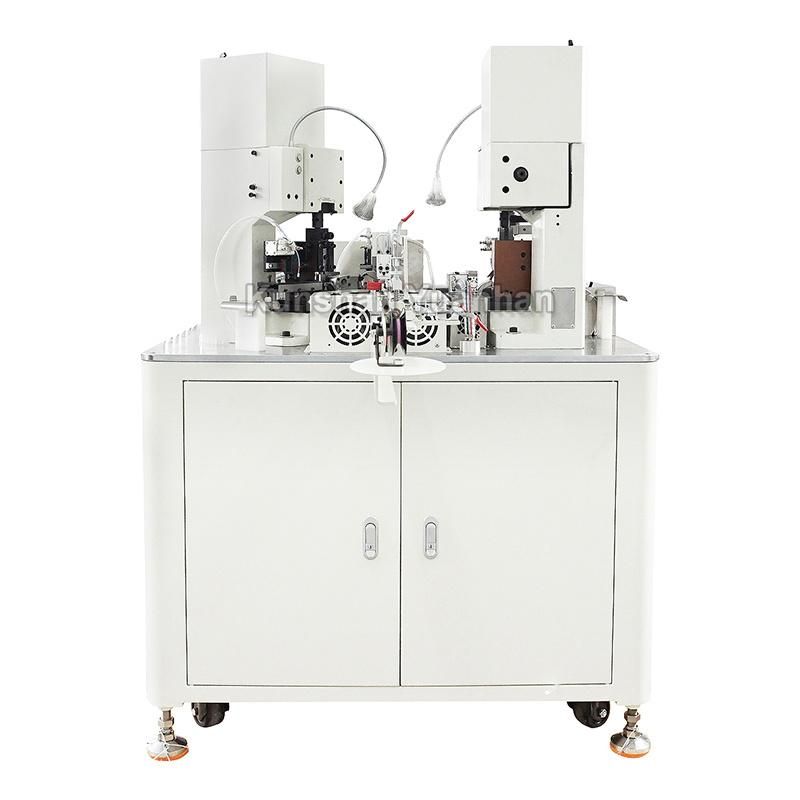

Crimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24h
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-ST02
  • Name：Yh-St02 Servo Terminal Crimping Machine
  • Power Supply：AC220V,50,60Hz Single Phase
  • Capacity：1400 Pieces,Hour
  • Wire Range：AWG14 - AWG28
  • Cutting Length：65mm - 9999mm (Special Length Can Be Customized)
  • Cutting Accuracy：1mm+Cutting Length*0.2% or Less
  • Stripping and Twisting Length：7mm - 12mm
  • Crimping Capacity：2.0 Tons (3.0t Optional)
  • Air Pressure：4 - 6kgf (Clean and Dry Air Is Required)
  • Detection Device：Optical Fiber Induction, Detection of Wire Presenc
  • Dimensions：700W X 800L X 1500h(mm)
  • Weight：About 358kg
  • Transport Package：Wooden Case
  • Specification：22*25*60cm
  • Trademark：YH
  • Origin：China
  • HS Code：8479819000

Description

ModelYH-ST02Power supplyAC220V/50/60HZ single phaseCapacity1400 pieces/hour (length<300mm)Wire rangeAWG14 - AWG28Cutting length65mm - 9999mm (special length can be customized)Cutting accuracy1mm+cutting length*0.2% or lessStripping and twisting length7mm - 12mmCrimping capacity2.0 tons (3.0T optional)Air pressure4 - 6kgf (clean and dry air is required)Detection deviceoptical fiber induction, detection of wire presence, detection of terminal crimping, blockage detection, low air pressure detectionDimensions700W x 800L x 1500H(mm)Weightabout 358kg

Specifications
Crimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp Machine
Crimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp MachineCrimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp MachineCrimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp MachineCrimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp MachineCrimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp MachineCrimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp MachineCrimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp Machine

Packaging DetailsExport standard package for  terminal crimping machineDelivery detailsWithin 3-5 working daysOur company

Crimping Machine Servo Motor Cable Double End Wire Cut Strip Terminal Crimp Machine

Yuanhan wire harness processing machines are widely used in automotive, home appliances, communications, rail transit, nuclear power, aerospace, charging piles, photovoltaic and new energy industries. With an annual output of more than 10,000 sets of wire harness processing equipment, we deliver efficient, high-quality services and fast solutions to many customers around the world.
