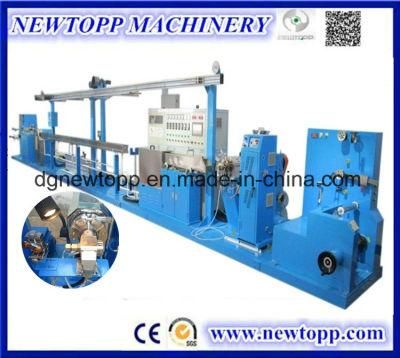

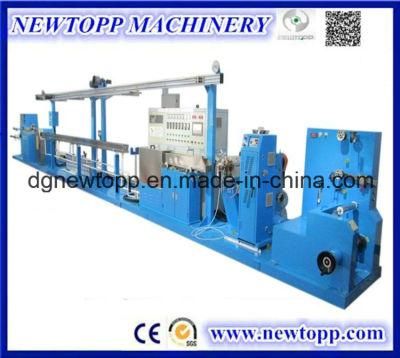

LDPE Chemical Foaming Cable Extrusion Production Line
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Precision：High Precision
Base Info
- Model NO.：XJ-50+35
- Heating System：Electric
- Function：High Temperature Resistance
- Mould Life：>1,000,000 Shots
- Automatic Grade：Automatic
- Customized：Customized
- Transport Package：PE Film + Wooden Box
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：Dongguan City, Guangdong Province, China
- HS Code：8479400000
- Production Capacity：10sets,Month
Description
Automatic shaftless active pay-offPay-off bobbin Φ200-300mm Φ200-300mm Φ300-400mm Φ300-500mm Screw L/D ratio 28:1 28:1 28:1 28:1 Extrusion output 20kg/h 35kg/h 40kg/h 50kg/h Main power 5HP 7. 5HP 10HP 15HP Extrusion OD Φ0.1-2.0mm Φ0.2-2.5mm Φ0.6-3.0mm Φ0.6-5.0mm Extrusion material PE / Foaming-PE / PP / Foaming-PP / HDPE / PU Accumulate len gth 200m 200m 200m 200 Capstan power 3HP 3HP 3HP 3HP Max speed 350m/min 400m/min 500m/min 500m/min Take-up type Double shaft Double shaft Double shaft Double shaft Take-up bobbin Φ400-630mm Φ400-630mm Φ400-630mm Φ400-630mm Size( mm) 20000*1500*2100 20000*1600*2100 20000*1700*2100 23000*1800*2103 Total Weight 8.0T 8.5T 9.0T 10.5T
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors
6. About us
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited , and we also have passed ISO9001:2008 since 2010.
7.FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 6000 spuare meters production workshop and office space.
2) How can we get to your factory to see the machines works?
Address: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to NEWTOPP factory;
Only 1.5 hours by car from Guangzhou Baiyun Airport to NEWTOPP factory;
Only 17 minutes by high speed rail from Guangzhou south station to Humen.
Sales Engineer: Mr. David
