• Model NO.：YH-203
• Model：Yh-203
• Cutting Length：1-8.5cm
• Cutting Width：220V
• Cutting Speed：200PCS,Min
• Power Supply：220V 1.5kw
• Net Weight：105kg
• Size：93L*65W*148h Cm
• Transport Package：Wooden Case
• Trademark：yuanhan
• Origin：China
• HS Code：8479819000
• Production Capacity：1000PC,Year

Basic Info.

Model NO. YH-203 Model Yh-203 Cutting Length 1-8.5cm Cutting Width 220V Cutting Speed 200PCS/Min Power Supply 220V 1.5kw Net Weight 105kg Size 93L*65W*148h Cm Transport Package Wooden Case Trademark yuanhan Origin China HS Code 8479819000 Production Capacity 1000PC/Year

Product Description

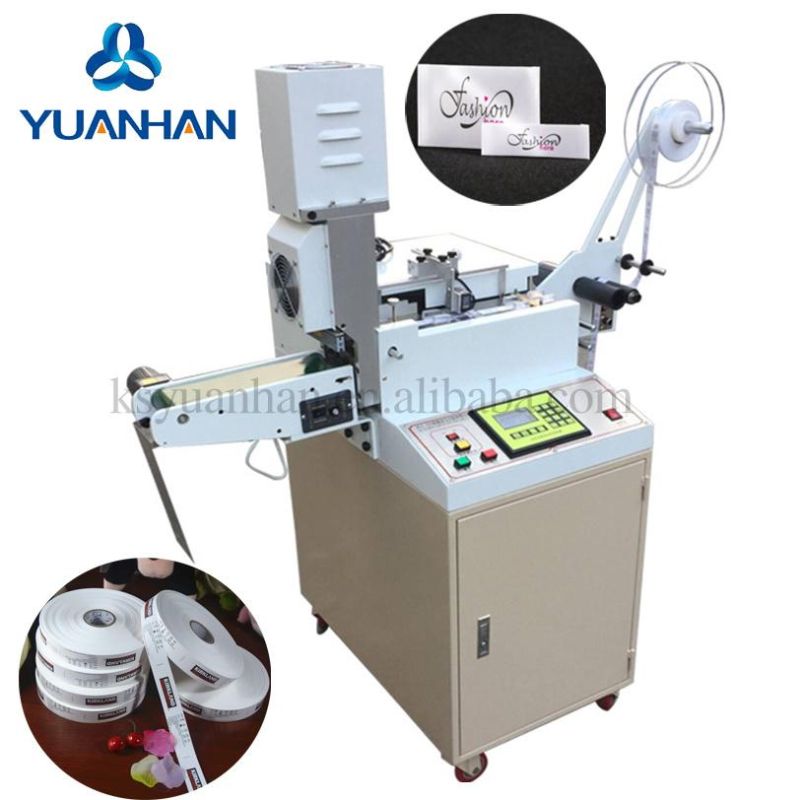

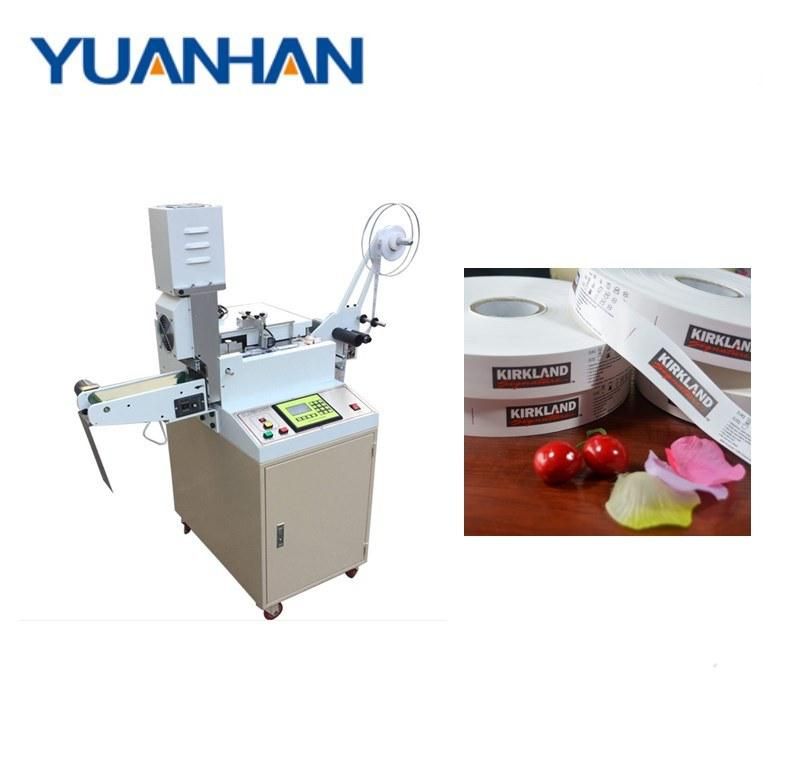

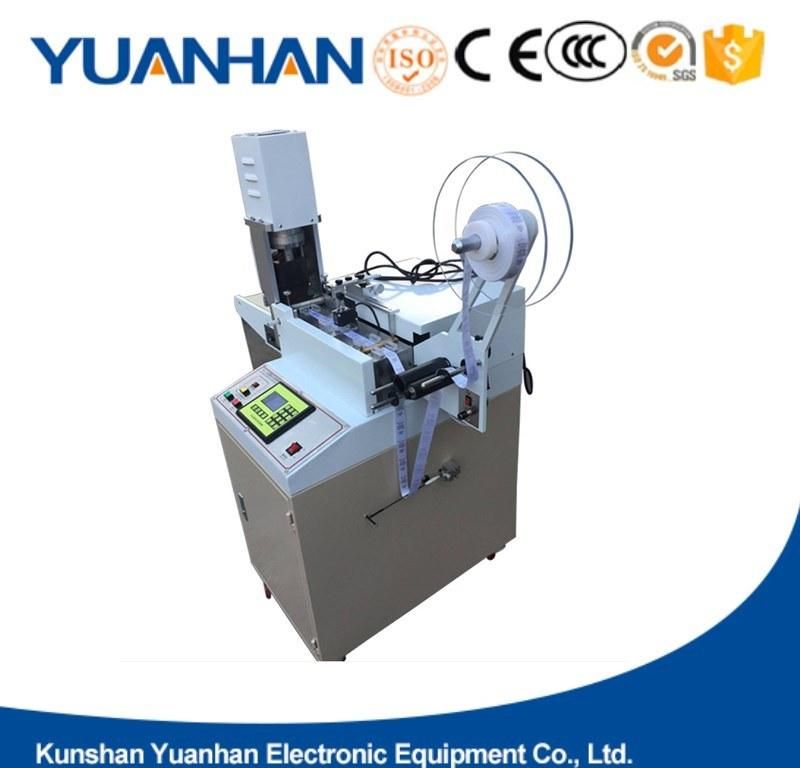

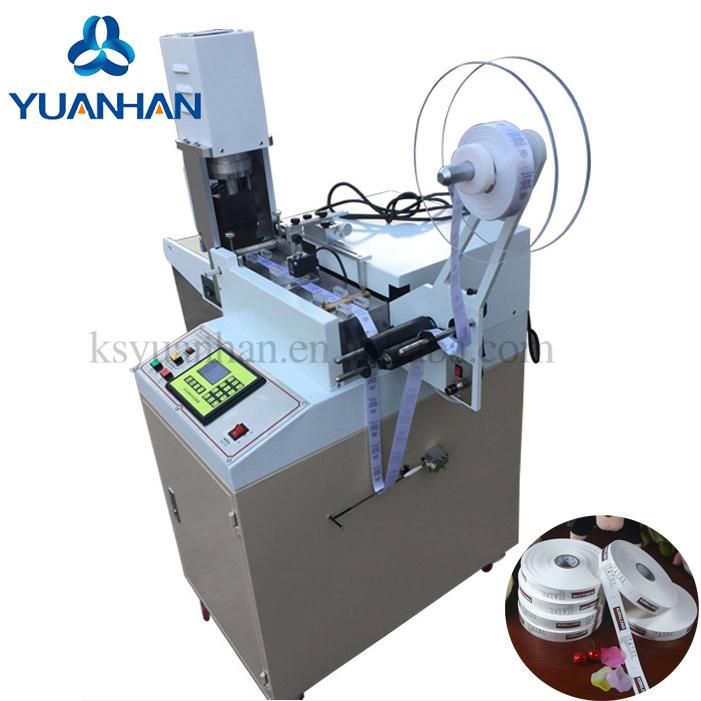

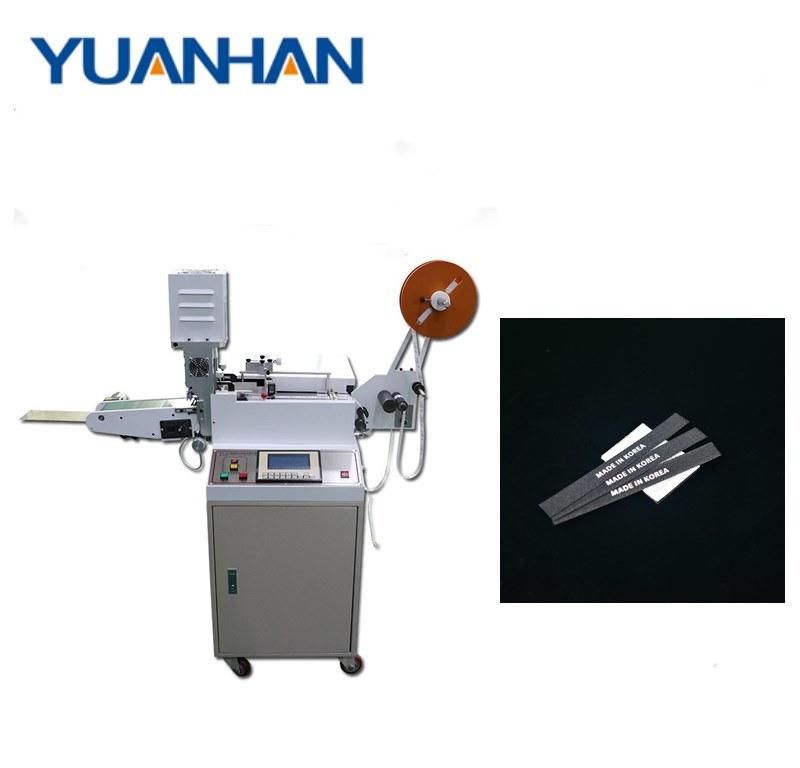

CNC Ultrasonic Label Cutting Machine

• This CNC ultrasonic label cutting machine combines traditional shearing with ultrasonic welding technology. When working with ultrasonic sounders, ultrasonic energy is transmitted to the welding head through the ultrasonic transducer and generates severe vibration and friction with the die, thereby achieving cutting purpose.


• Ultrasonic technology makes the cutting incision soft and flat, non-burning, non-scattering, suitable for a variety of materials;

• Imported photoelectric eye positioning is accurate and easy to operate;

• Stable and scientific control system and program, high quality motor, speed up to 200pcs/min, multi-use, greatly improve production efficiency;

• For different materials, various working modes can be switched at will: regular length cutting, precise positioning cutting, waste cutting and debugging cutting;

• Practical auxiliary functions: eliminating static electricity at the discharge port effectively prevents the secondary shearing and overlapping of the material due to electrostatic adsorption. The indentation function is equivalent to the effect of folding, and the back tray is equipped with an automatic discharge function;

• High quality and durable ultrasonic generator;

• Simple and easy to learn control system to reduce the cost of learning;

• Memory function: automatically store the parameters set before turning off the switch.

• Model	YH-203
  Cutting length	1-99cm
  Cutting width	1-8.5cm
  Cutting speed	200pcs/min
  Power supply	220v 1.5kw
  Net weight	105KG
  Size	93L*65W*148H cm
