Alternator Stator Coil Winding and Coil Inserting Machine
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- Dimension：1800mmx1900mmx2500mm
- After-Sales Service：Engineers Avaiable to Service Overseas
- Condition：New
- Customized Service：Provided
Base Info
- Model NO.：WIND-RQ
- Transport Package：Wooden Case
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-RQ Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Alternator Stator Coil Winding and Coil Inserting Machine
The machine can do automatically coil winding, coil inserting, wedge inserting by intergrating three machines into one machine. Winding and inserting process are all controlled by servo motor. Auto and jog mode are avaiable. (1)FeaturesTwo working stationsEasy loading and unloading
High automation and productivity
Fully programmable operation

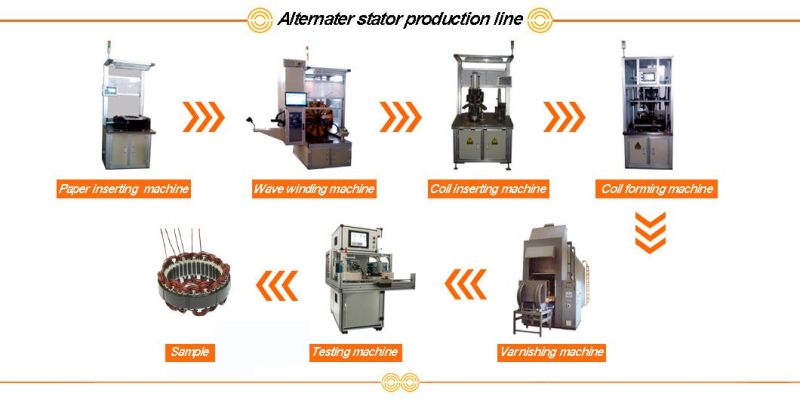

Parameter adjustable according to different statorsApplied as a stand-alone machine or integrated into a production line (2)Machine configuration
| Power supply | AC 380V 50HZ |
| Air pressure | 0.5~0.7 MPa |
| Total power | 8KW |
| Winding speed | 10~120r/min |
| Slots | 36/48 |
| Wire range | 0.15~1.6mm |
| Stack length | 20~130mm |
| Dimension | 1800mmx1900mmx2500mm |
