• Model NO.：JGH-508
• Type：High-speed Chip Mounter
• Stock：Yes
• Payment：100% Advance
• Transport Package：Wood Box
• Specification：JGH-508
• Trademark：JGH
• Origin：China
• HS Code：8208900000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. JGH-508 Type High-speed Chip Mounter Stock Yes Payment 100% Advance Transport Package Wood Box Specification JGH-508 Trademark JGH Origin China HS Code 8208900000 Production Capacity 1000PCS/Year

Product Description

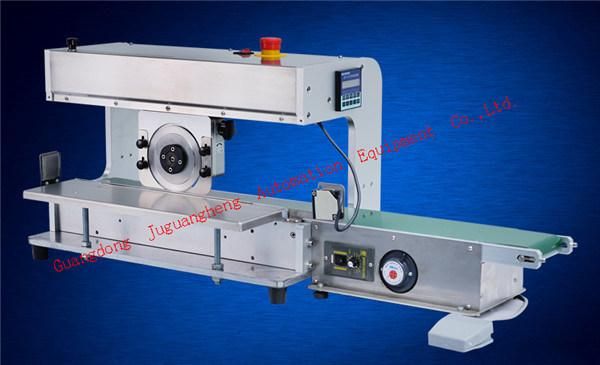

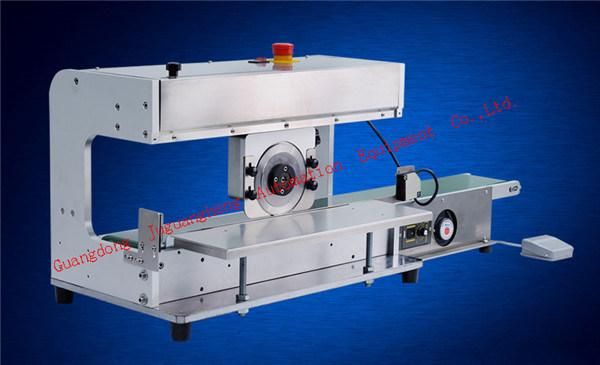

Hot Selling Jgh-208 PCB Separator In Stock


Maximum plate length of ASC-509: unlimited
Thickness of plate: 0.2-5.0mm
Plate feeding speed: 300-500mm/second
Blade material: SK61D high speed steel
Operating temperature: 10-35 ºC Storage temperature: -20-50 ºC
Power supply: 230V110V,50HZ/60HZ,40W
ASC-509 size: 1000*395*425mm
ASC-509 weight: 47KG




Notes:
* Before using the machine, please read this manual carefully, and it will help you operate it smoothly.
* Do not remove the guard around the blade under any circumstance, in order not to cause any danger
* The machine is only designed for circuit board with pre-scored V-cut, do not use in other purposes.
* When operating this machine, do not wear too loose clothes. Long hair should be tied up to prevent it from being entangled.

Preparation before installation and use of the machine
1. Check the objects in the packing box, including the following parts: host, manual, power wire, pedal switch and hexagonal wrench for tuning.
2. Remove the packing bag of the machine, place it onto the solid work bench, and wipe antirust grease on the blade.
3. The machine must be reliably earthed to prevent the damage by static electricity to the components on the circuit board. If the ground in the power socket is reliable and effective, the machine will be reliably earthed once it is powered.
4. Fix the outer tray (11) to the machine with two fixing screws, adjust the height of the components on the circuit board to adjust it to a suitable height, and manually lock the tray knob screw.
5. Plug the pedal switch into the corresponding socket at the back of the machine, to ensure the supply power is correct before powered.

Adjustment of machine:
1. Ensure the components on the circuit board will not collide with the body and blade. See Figure 1 for the dimensions of the machine. The height of the components on the circuit board will not exceed the scope. If the components on the circuit board touch the blade, contact us to pre-process the blade to avoid the cutting of components.
2. According to the thickness of the circuit board, adjust the height of the upper blade by adjusting the knob.

Various kinds of PCB Cutting Machine

JGH-201 PCB cutting machine

JGH-202 PCB V-cut machine

JGH-203 PCB Points machine

JGH-204 PCB Sub-board machine

JGH-205 PCB Separator

JGH-206 PCB cutting machine

JGH-207 PCB cutter

JGH-208 PCB cutting machine

JGH-210 PCB Points machine

JGH-211 PCB V-cut machine

JGH-212 PCB Depaneling machine

JGH-213 PCB Sub-board machine

JGH-214 PCB Depanelizer

JGH-215 PCB Separator

JGH-216 PCB cutting machine

JGH-217 PCB Separator

JGH-218 PCB cutting machine

JGH-508 PCB Separator

SMT Equipment from our Company:
Nozzle cleaning machine,
Nozzle checking machine,
SMD component counter,
Solder paste mixer,
Solder paste temperature back machine,
PCB Cutting machine,
Reflow checker



Our company information
Guangdong Juguangheng Automation Equipment Co., Ltd. Enjoys a high reputation among customers in the past years. Mainly engaged in various SMT equipments, SMT consumables, SMT lubricating oils and cleaners and recycling of second hand SMT. We have an 1200 square meters production workshop and able to do research, development and produce all kinds of SMT nozzles, accessories and mechanical Feeder, vibration Feeder, electric Feeder. We also accept production according to your requirements. Juguangheng has been able to product it's independent brand SMT equipment and automation equipment. The representative products are nozzle cleaning machine, hand-place desk, parallel transfer machine, SMD chip counter, solder paste mixer, feeder calibrator, etc.



We look forward to your advice and the chance to cooperate with you. We will keep all your care in mind. Whenever needed, please always remember the most loyal friend and sincere partner Guangdong Juguangheng Automation Equipment Co., Ltd. You just give us a call, and we will do the best.

Advantages of Our company:
A. 16 years experience, quality guarantee
B. Participate in NEPCON South China Since 2009
C. High quality, low cost
D. Large stock, fast shipping
E. various brands available
F. Customization is acceptable
