• Model NO.：XJ20,XJ,25,XJ30,XJ40
• Specification：XJ20,XJ,25,XJ30,XJ40
• Trademark：NEWTOPP
• Origin：China
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ20/XJ/25/XJ30/XJ40 Specification XJ20/XJ/25/XJ30/XJ40 Trademark NEWTOPP Origin China Production Capacity 200sets/Year

Product Description

Application field:

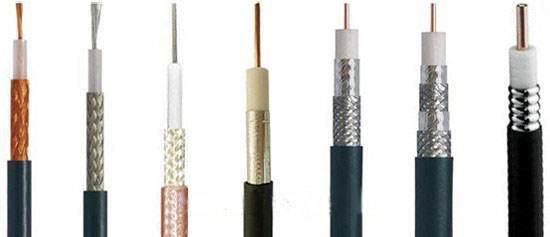

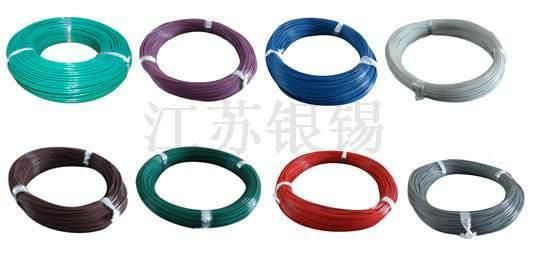

Adapt to the production of teflon (fluorine plastic) resistance to high temperature, wire, sleeve, all kinds of thin skin insulation.


Products feature:
1. Used widely:Suitable for FEP (polyfluorinated ethylene propylene, also known as F46), FPA and ETFE (also known as F40) etc. fluorine plastics production.
2. Screw cylinder: adopt the new no.3 steel GH113 (same as American GDA material ) which have corrosion resistance and high temperature resistance features
3. Machine head device: use the special free adjustable head or adjustable head made by the no.3 golden steel GH113 material.
4. Heating system: using high temperature resistant cast copper alloy heater.
5. Quality control: equipped with external diameter detection and feedback device to control the external diameter, concentricity and other technological parameters of the product.
6. Electric control: imported frequency converter +PLC touch screen control.

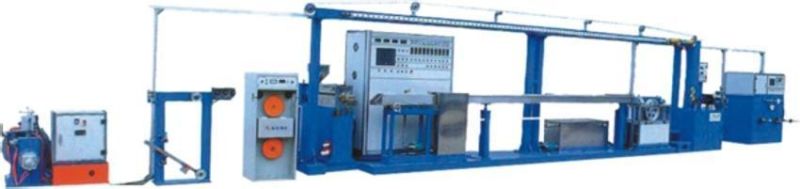

Machine parts:

Pay-offs rack stand:	tension passive pay-offs stand, gantry type active pay-offs stand or non-axial pay-offs stand
Straightening platform:	5 wheeled straightening platform (with box)
Extruder host:	choose the special screw for PVC or PE.
Suction material machine	automatic drying and suction material
Machine head device	adjustable head or non-adjustable head.
Control system cabinet	PLC control.
Mobile water tank	single layer mobile water tank or double layer water tank
Capstan type:	double-wheel capstan or caterpillar capstan
Tension storage wire rack	9 meters storage line or 12 meters storage line
Double shaft take-ups	can be added into the circle to make the pie plate
Spark tester	direct current, working frequency or high frequency can be selected
External diameter tester	select all famous brand calipers

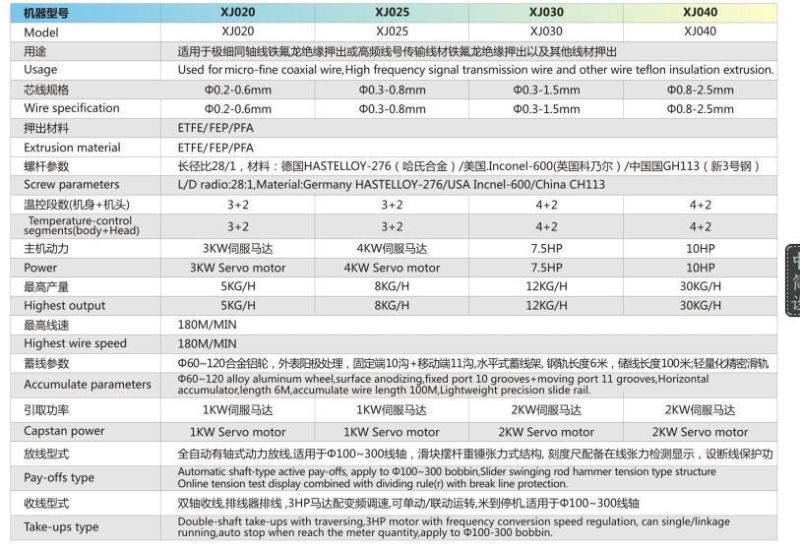

Technical parameters


Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us


Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
