• Model NO.：JG-4.0SF
• Transport Package：Carton,Wooden Case
• Specification：270*280*640mm
• Trademark：JG
• Origin：China
• HS Code：8479819000

Basic Info.

Model NO. JG-4.0SF Transport Package Carton/Wooden Case Specification 270*280*640mm Trademark JG Origin China HS Code 8479819000

Product Description

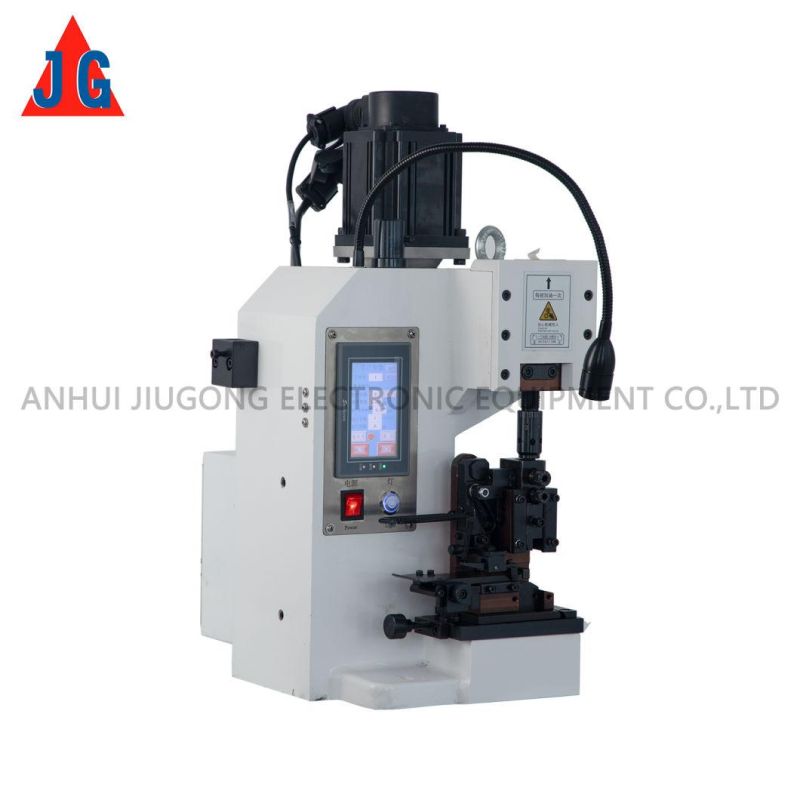

         Servo Terminal machine :a new generation servo motor drive control system,automatic detection and alarm system for crimping height ,stable precision and quality,touch screen input ,easy to set up.It is designed for special piercing terminals and new energy wiring harness ,and crimping teminals with high precision requierments.The most important is the crimp error alarm function,(when overlapped crimp terminal alarm (blade protection function),detect no peeling crimp alarm,cutt off core wire alarm,air crimp terminal or wire alarm).At present in (enameled wire puncture terminal )High requirements of terminal crimping equipment is the most ideal,and it is also the most cost-effective

   Features:
    Card mold  ,easy to change ,fast and time saving
    Stable voltage,fast speed,high accuracy .
    Crimping computer terminal,DC terminal ,AC terminal ,single grain terminal,and continuous terminal
    Lightweight structure ,easy to move the workplace ,low sound operation
    Suitable for OTP transverse mode ,OTP positive mode ,OTP reverse mode and 2000# 950# mold

    Function:

    Spindle drive is about 180 degrees (depending on terminal thickness)
    The height adjustment is fine-tuned by touch screen.
    Speed: press once to complete the speed of 1 second
     The accuracy is ±0.015mm
     The upper limit of terminal thickness detection is 0.03mm,and the lower limit is -0.03mm(main detection: whether there is terminal and overlapping pressure)
     Can set two speed crimp ,two speed crimp can be set
     The pressure holding time can be set at the lower point
      Automatic detection of the travel height of the upper tool to the lower tool,when overlapped crimping  terminal alarm(blade protection fuction)
      Multiple terminal height set 1 to 10 terminals for cyclic crimping
      Work order storage:(0-99)
  Specifications:



Pressing capacity: 4000KG
Wire diameter range: max pressing wire diameter 20 square
Power supply : 220V 50HZ
Pressure times:400spm
Closing height :max 200mm
Height regulator :10mm
Volume(length*width*height):270*280*640MM
Weight :78kg
