3q Sheath Wire Flat Cable Peeling Cutting and Twisting Machine Fully Automatic Computer Wire Stripping Machine (3Q-BXH6(1))
Wenzhou Sanqi Machinery Equipment Co., Ltd.Base Info
- Model NO.：3Q-BXH6(1)
- After-sales Service：Provide 24 Hours Service
- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：24 Months
- Automatic Grade：Automatic
- Usage：Stripping
- Application：Strip Wire Machine
- Type：Wire Cutting Stripping Machine
- Name：Automatic Wire Stripping Machine
- Wire Range：0-2.5mm
- Function：Wire Cut and Strip
- Cutting Tolerance：0.002*L mm
- Weight：30kg
- Stripping Length：200 mm for Head and 80 mm for Tail
- Production Efficiency：3000-5000 Pieces 1 Hour
- Cutting Wire Core：0.1-6mm²
- Intermediate Stripping：15 Segments
- Pulse Equivalent：No Error Within 5mm
- Cutting Length：1-99999mm
- Simultaneous Cutting：1 Wire(If 3 or 4 Wires Can Be Customized)
- Trademark：3Q
- Transport Package：Stand Export Wooden Carton

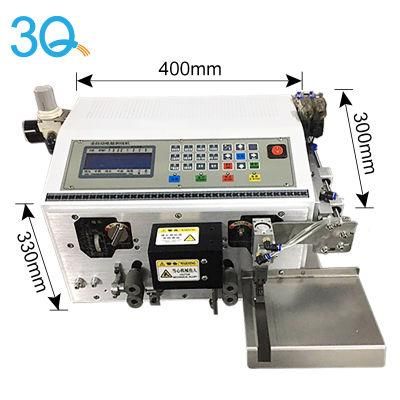

- Specification：42X40X29 cm
- Origin：China
- HS Code：8479811000
