Liquid Ab Part Glue Dispenser Epoxy Silicone Mixing Automatic Liquid Dispensing Machine
Guangzhou ZhengQi Technology Co., Ltd.- Precision：High Precision
- Condition：New
- Certification：CE
- Warranty：12 Months
- Automatic Grade：Semiautomatic
- Installation：Vertical
Base Info
- Driven Type：Electric
- Transport Package：Wooden Packing
- Trademark：D&H
- Origin：China
- HS Code：8424899990
- Production Capacity：50PCS Per Month
Description
Model No:
PJL-100
Mixing Ratio
100:100-10:100(1:1-1:10) Adjustable
Metering precision
±1%
Outflow speed
1g/sec-15g/sec
Mixing precision
±1%
Mixing mode
Dynamic mixing /Static mixing
Glue Viscosity
Lower than 20000 CPS(mPa·s)
Control mode
PLC + Touch Screen
Control system
Independent R&D
Measuring mode
Stepping motor/High-precision, wear-resistant,long-life Gear pump
Working voltage
AC 220V 50Hz/60Hz
Power requirement
3.55KW
Air pressure requirement
4.5-8KG
Machine Dimension
1500(L)*1200(W)*1500(H)mm
Weight
approx 260 KG
Work environment
Humidity: 20%~98%RH; Temperature: 0~+40°c
Suitable Material: For waterproof, adhesive, fixed two-component adhesive.
Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.

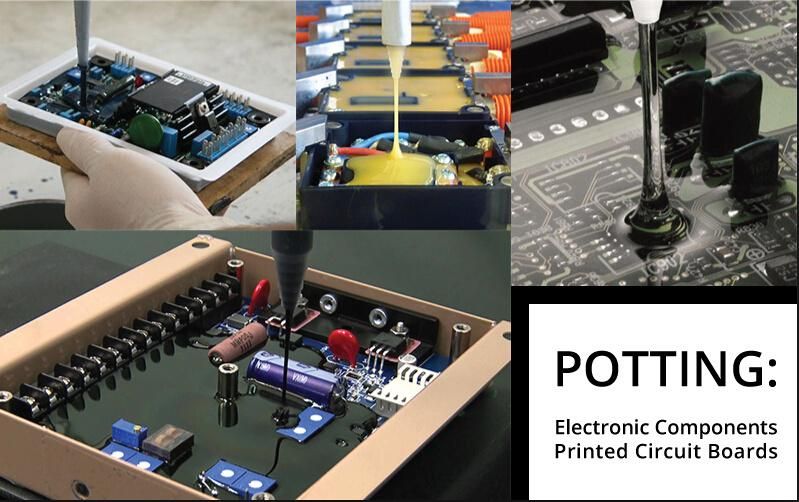

Applications:LED products ,Crafts,Electronic components
Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter .etc
IV:Application
| Model | PGB-700 | Voltage | 220V-380V |
| XYZ axis | 700*700*80(mm) | Application | led,electronic,filter |
| Glue support | Silicone, epoxy resin, urethane | Certification | CE, RoHS |
| Power | 3600w | Warranty | 1years |
| Item Name | mixing and dispensing | Function | DC 12V-14V |
| Ratio support | 1:1 to 10:1 | MOQ | 1 Piece |
| Gluing Speed | 5-66g/5s Adjustable | Price | depends your glue feature |
| Air Pressure: | 0.5-0.7Mpa | Port | Huangpu |
