All in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-400,01
  • Model：Yh-400,01
  • Cutting Accuracy：0.1mm
  • Cutting Length：0.1-99999.9.mm
  • Cutting Diameter：Max. 38mm (Diameter Greater Than 38mm Need to Be
  • Cutting Speed：60-210PCS,Min (Depending on Cutting Length)
  • Power：AC220V, 560W
  • Dimensions：650*480*420mm(L*W*H)
  • Net Weight：66kg

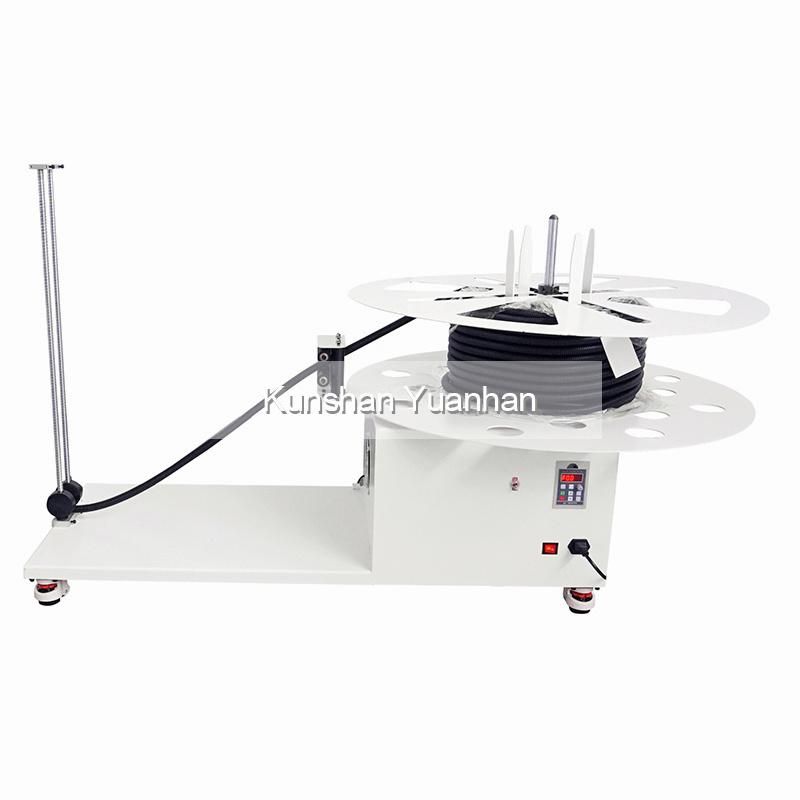

  • Feeding Model：Yh-Fgj01
  • Power Supply：220V 50Hz
  • Turntable Diameter：860mm
  • Load-Bearing：50kg
  • Max. Diameter：400mm
  • Spindle：20mm
  • Total Power：550W
  • Transport Package：Double-Layer Export Carton
  • Specification：390*350*255mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：500 Sets Per Month

Description

Dimensions650*480*420mm(L*W*H)Gross weight84kgNet weight66kgModelPower supply220V 50HZTurntable diameter860mmLoad-bearing50KGMax. diameter400mmSpindle20mmTotal power550WDimensionsLength 1200*Width 860*Height 850mmWeight90KG

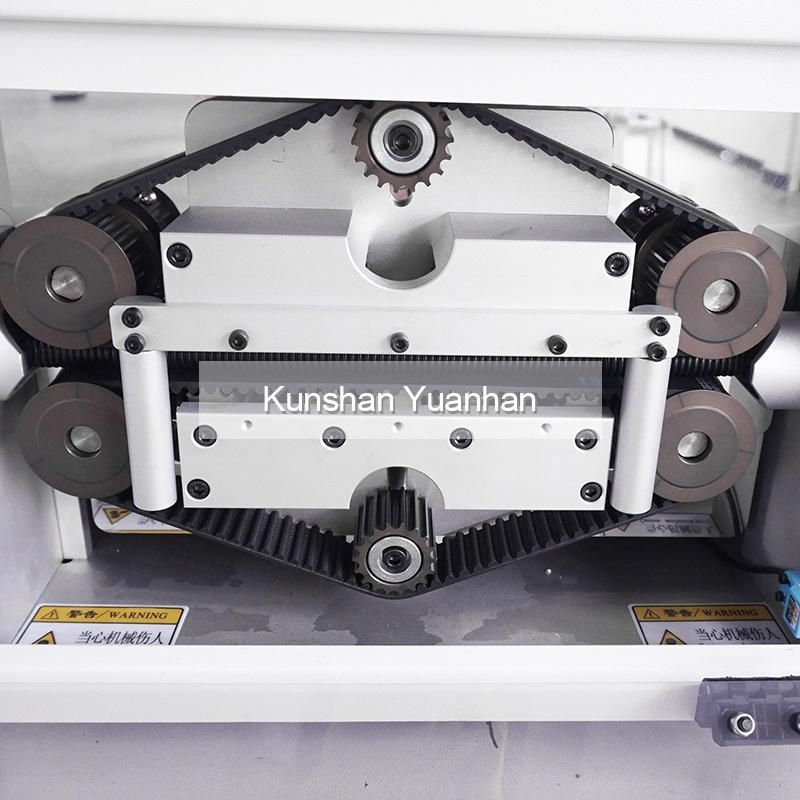

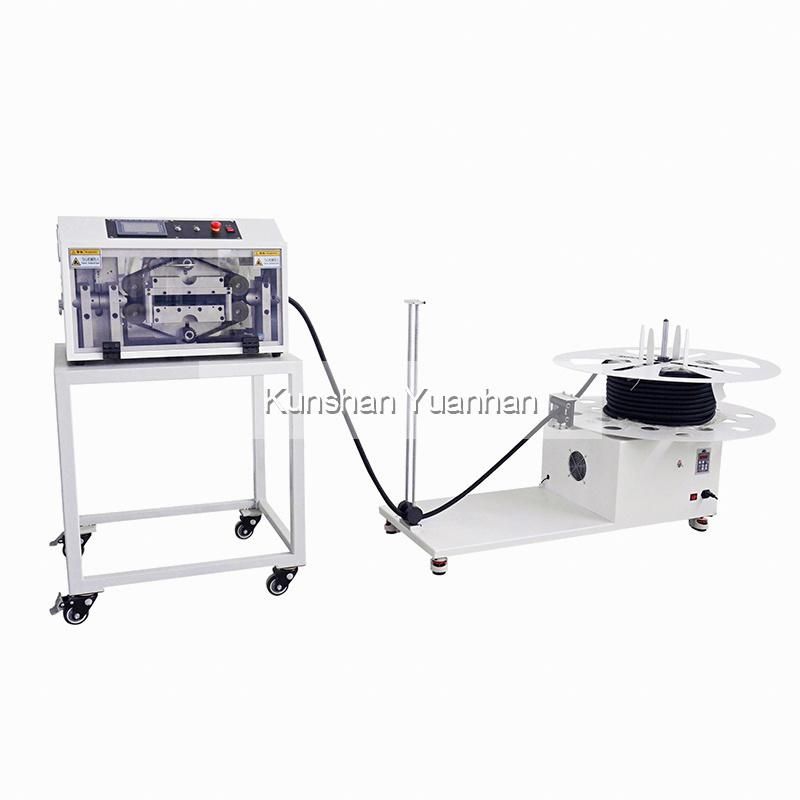

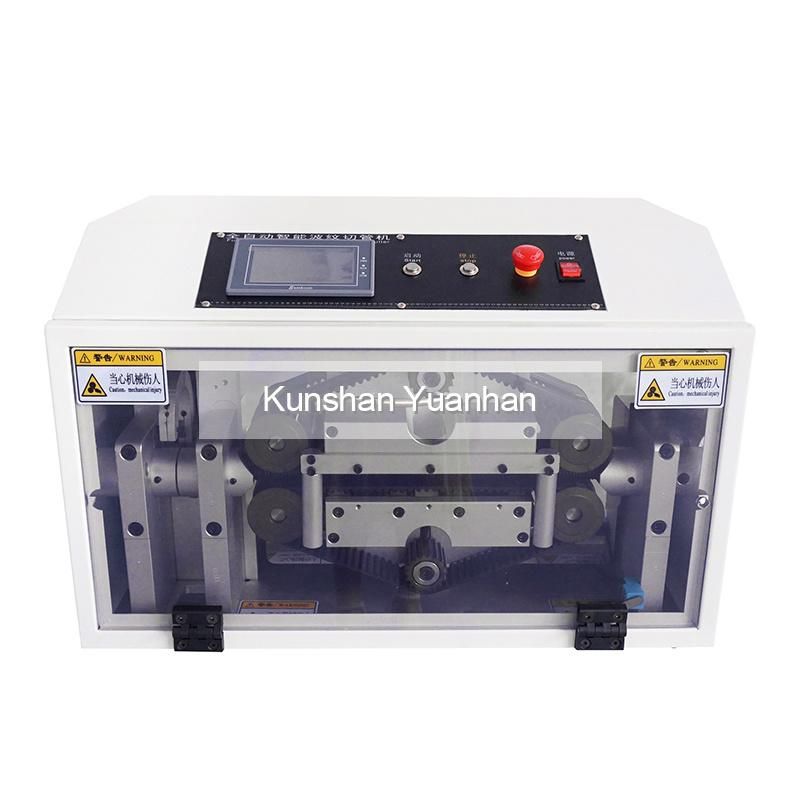

Machine Shows
All in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting MachineAll in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting Machine

All in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting MachineAll in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting MachineAll in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting MachineAll in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting MachineAll in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting MachineAll in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting MachineAll in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting MachineAll in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting Machine


Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
All in One Auto Long Tube Cutting Equipment Automatic Corrugated Pipe Bellows Cutting Machine


Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

for Sale Small Size Automatic Computer Electrical Electric Cable Stripper Machine Wire Cutting Stripping Machine



Any questions, please feel free to contact us! Thank you !
