• Model NO.：XJ-500MM
• HS Code：8479400000
• Production Capacity：500sets,Year

Basic Info.

Model NO. XJ-500MM HS Code 8479400000 Production Capacity 500sets/Year

Product Description

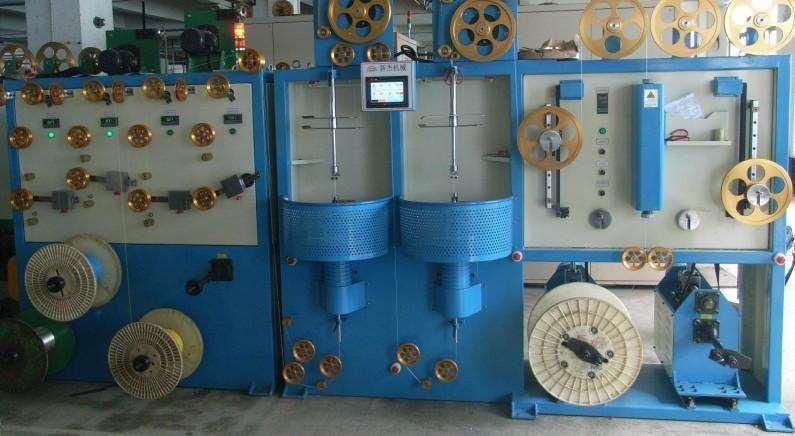

Four-layer Taping Machine for HDMI/DP

Application field:

Used for twisted wire and parallel wire double layers/single layer continuously centering wrapping.

Products feature:

Used widely:used for twisted wire and parallel wire double/single layer continuously centering wrapping.

High output:high rotate speed,work rate is 2.5 times than traditional type.

Tension is steady:Automatic tension trace instrument,taping tension keep constant from start to end.Needn't any artifical adjustment.

Wrapping distance accurate;Setting pitch on touch screen,controlled by PLC,wrapping point is steady while it's normal work or accelerate and decelerate.

Good traversing:Take-up traversing adopted axis-row type structure,spacing can be set arbitrary.

High quality:Used for making HDMI,DP,ATA,STAT and such high frequency wire,pass rate 100%.



Machine parts:

1.Active pay-off rack
2.Wrapping machine
3.Axis row type take-up
4.Capstan device
5.Heating oven control device
6.Electrical control cabinet

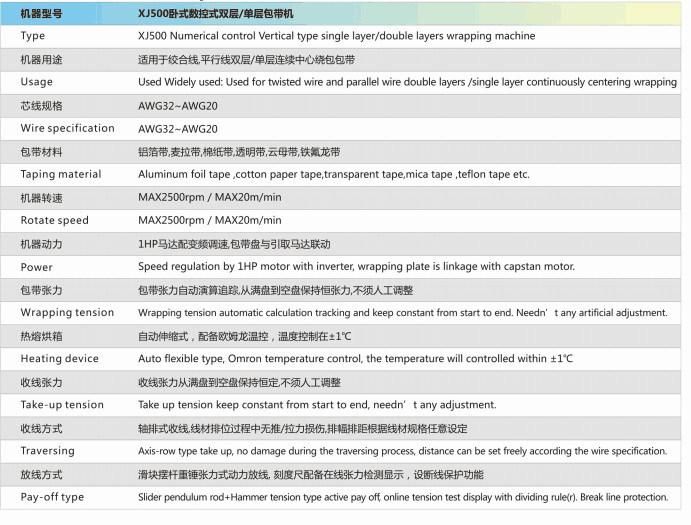

Technical parameters



Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.


About us



Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.

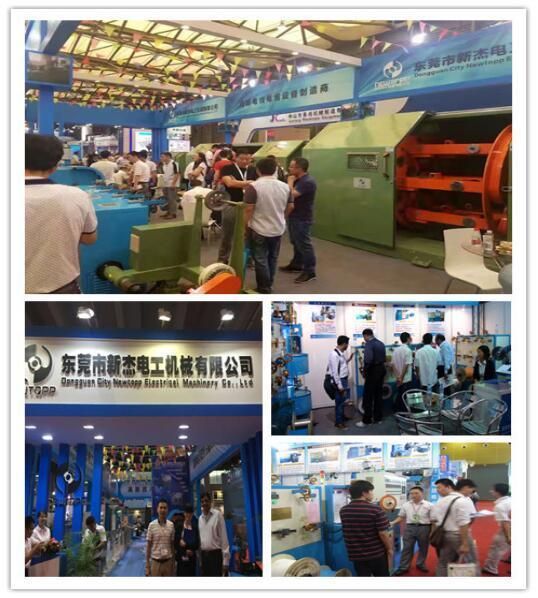

Trade exhibition
