0.2-0.7mm Wire Size Digital Coil Counting Automatic Toroid Coil Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Voltage：220V
  • Wire Diameter：0.15-0.50
  • Max.Final Coil.O.D：60-200
  • Min.Final Coil.I.D：20
  • Max.Finalcoil Height：80
  • Controller Storage Capacity Programs：29 Sets

Base Info

  • Model NO.：GWSM-H0819
  • Max.Winding Speed：700rpm
  • Wire Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：550*500*700
  • Weight：83kg
  • Automatic：Automatic
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS

Description

Basic Info.

Model NO. GWSM-H0819 Max.Winding Speed 700rpm Wire Spacing Proportional Linkage Supply Voltage AC 220V(50Hz) Mechanical Dimensions 550*500*700 Weight 83kg Automatic Automatic Certification RoHS, CE, ISO Transport Package Export Standard Carton or Customize Strong Pallet Specification CE Trademark Grewin Origin China HS Code 85043190 Production Capacity 100PCS

Product Description

Product Description:

Automatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for the insulation tape wrapping machine on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.

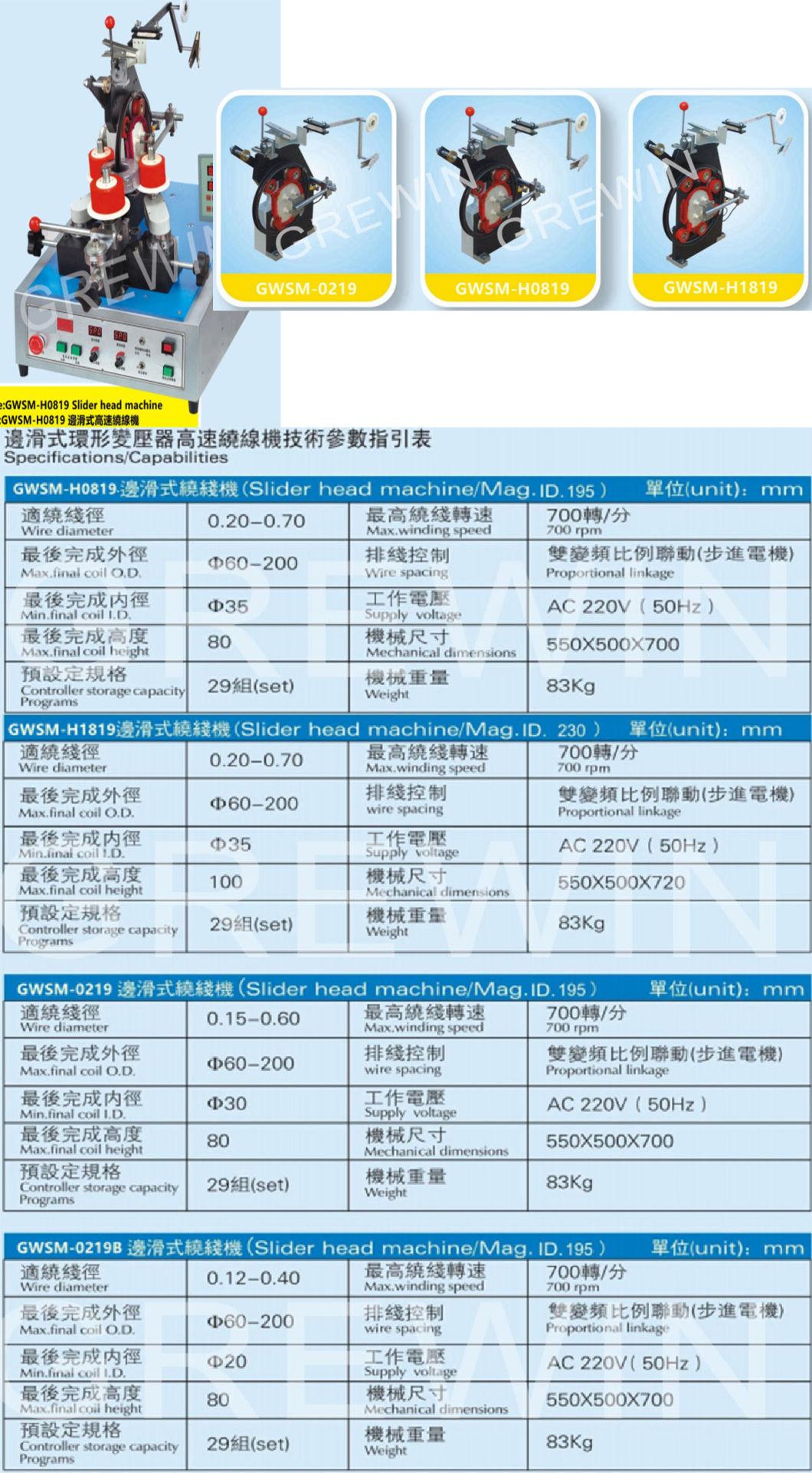

Specification
0.2-0.7mm Wire Size Digital Coil Counting Automatic Toroid Coil Winding Machine



Related Products

0.2-0.7mm Wire Size Digital Coil Counting Automatic Toroid Coil Winding Machine



How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.


Why Choose Us
1.operating videos
2.24 hours technical support
3.1 year free Warranty4.Free training.
5. OEM/ODM accept
Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
0.2-0.7mm Wire Size Digital Coil Counting Automatic Toroid Coil Winding Machine
