• Model NO.：XJ-400,500
• Certification：Ce, CCC
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Mould Life：>1, 000, 000 Shots
• Customized：Customized
• Warranty：12 Months
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-400/500 Certification Ce, CCC Demoulding Automatic Heating System Electric Function High Temperature Resistance Mould Life >1, 000, 000 Shots Customized Customized Warranty 12 Months Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

100% Back-twist Rate Three-core Twisting Machine  for Wire & Cable1.Application:
Used in USB3.0, HDMI, DP and so on special technology high-frequency wire back-twist ,twisting and taping.
2.Machine Features:
It's used in USB3.0, HDMI, DP and so on special technology high-frequency wire back-twist , twisting and taping. meanwhile, it can work as one machine compatible with twisting and nutwisting products, and can finish back-twist, twisting , double taping, hot melting by once time; The first domestic, the whole using SERVO motor control, electric pitch setting automatical, 100% back-twist, auto-adjustment tension; Compared with traditional type, easier operation, production efficiency improved much, reduce defective products and labor cost.3. Technical Parameters:

Model	XJ-500
Usage	Used in USB3.0, HDMI, DP and so on special technology high-frequency wire back-twist ,twisting and taping.
Core-wire spec.	AWG34 - AWG26
Back-twist rate	100%
Taping material	Aluminum foil tape, myra tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Twisted bow  rotating speed	Max.1200 rpm
Twisting  pitch	3.0 - 80 mm , electric pitch setting by touch screen
Main power	15 HP
Taping rotating speed	Max.2000 rpm
Taping tension	Taping tension keep constant from start to end, no need any manual adjustment.
Take-up tension	Take-up tension keep constant from start to end, no need any manual adjustment.
Pay-off  type	Active payoff,  tension autoadjustment, auto correct, and with wire break protection function.

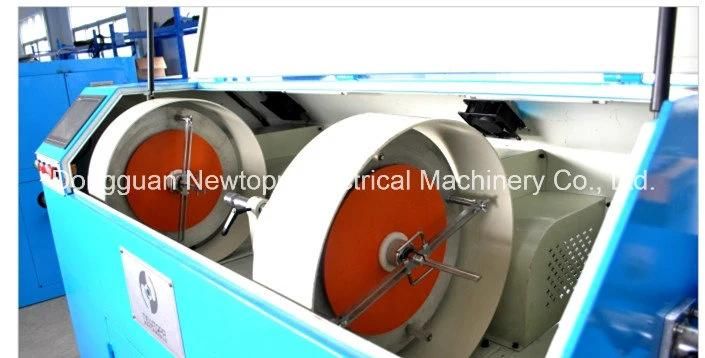

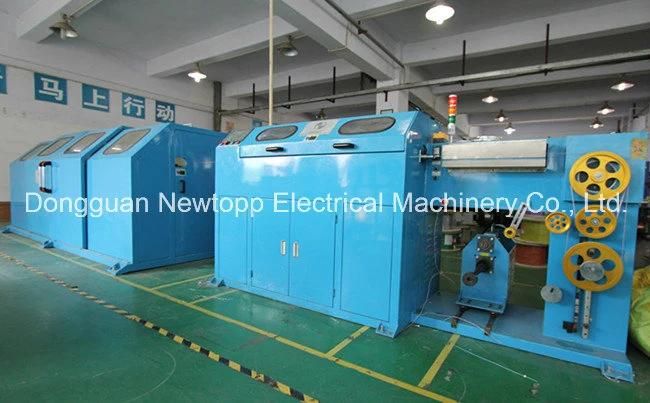

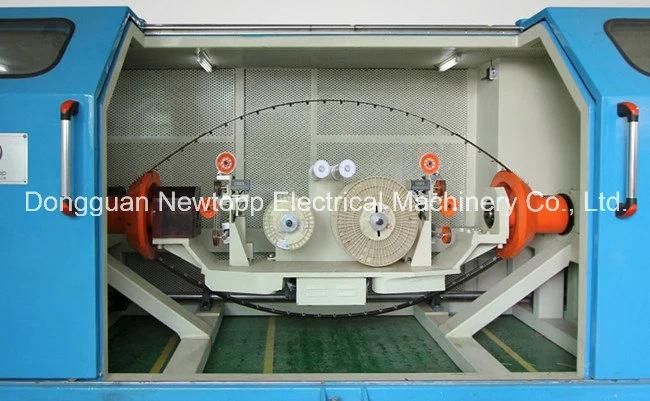

4. Machine Pictures:



5. Brand of main parts:1) Motor: Siemens2) Driver: Yaskawa or inovance3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Omron
6. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors
7.Packaging & Shipping
1) Transparent PE film + Wooden box
2) Cardboard wrapping corner to protection, wire rope in fixed to sea ship
3) 20 Feet container for complete production Line equipment

8.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
9. Company Informations:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipment R&D, design and manufacture.With the continuous improvement of production technology level and Constantly increasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfect and excellent.
10.FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 6000 spuare meters production workshop and office space.
2) How can we get to your factory to see the machines works?
Address: No286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China
We are near to Shenzhen Baoan International airport within 40 mins;
We are close to Guangzhou Baiyun Airport for 1.5-2 hours;
High speed rail from Guangzhou south station to Humen.
