• Model NO.：R1QL1-120,150
• Specification：2200× 1200× 2200mm
• Trademark：NIDE
• Origin：China
• Production Capacity：100 Sets,Year

Product name :automatic motor stator coil winding and inserting machineStator OD:≤φ150mmStator ID:40-110mmStack Height:30-120mmAppropriate Wire:φ0.2-φ1.2mmMotor Winding stations:1Stator Coil inserting stations:1Winding inserting mode:chained /same corePower supply:380V 50/60HzAir pressure:0.6-0.8 MPaWatt :5KwWeight :≈1800KgDimension:(L)2200×(W)1200×(H)2200mm



4.The picture display

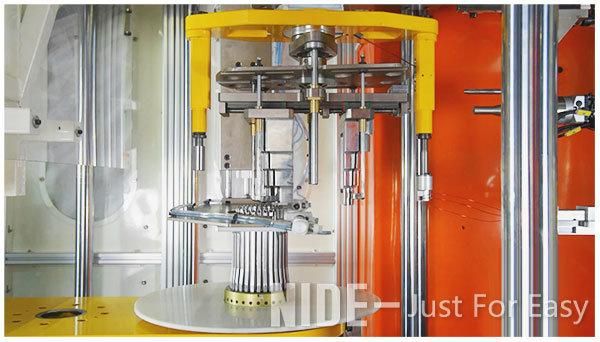

1. The automatic motor winding and inserting machine winding stations

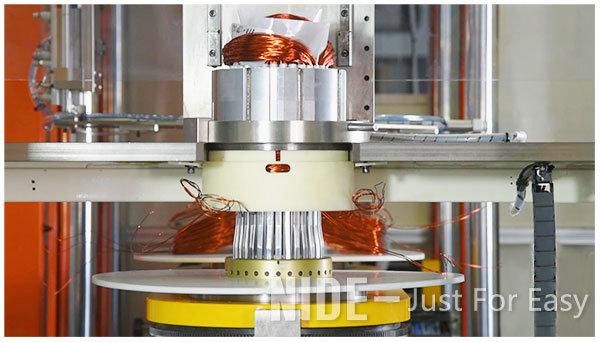

2. The automatic motor winding and inserting machine coil insertion stations

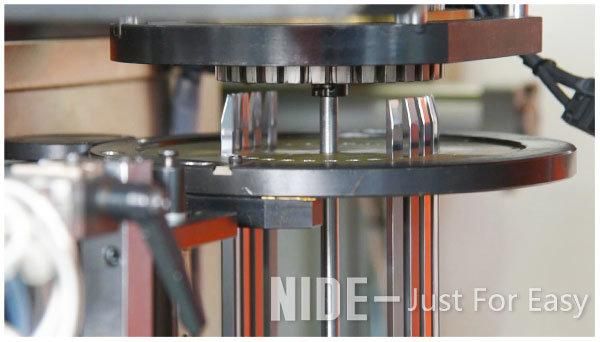

3. The coil winding and insertion machine coil Inserting abrasive display



Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
