• Model NO.：SUNY-TPJ40
• Type：High-speed Chip Mounter
• Feeder No.：46 (Front 20, Rear 26)
• Nozzle Buffering Range：5.0mm
• Power Supply：220V, 50Hz
• Compressed Air：0.5-06MPa
• Transport Package：Standard Export Package
• Trademark：SUNY
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SUNY-TPJ40 Type High-speed Chip Mounter Feeder No. 46 (Front 20, Rear 26) Nozzle Buffering Range 5.0mm Power Supply 220V, 50Hz Compressed Air 0.5-06MPa Transport Package Standard Export Package Trademark SUNY Origin Hunan China Production Capacity 500PCS/Month

Product Description

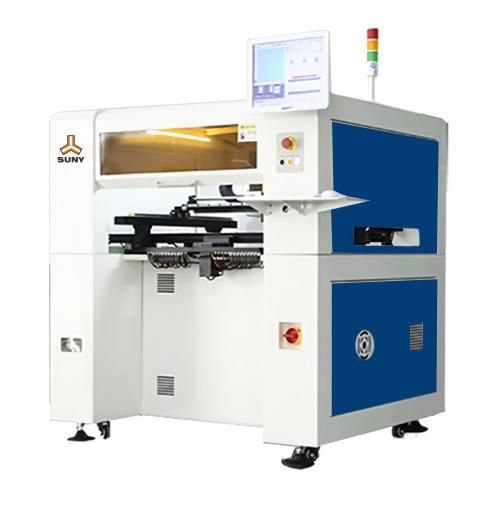

Item: The Electronic Pick and Place Machine SUNY-TPJ40 with YAMAHA Feeders and Electric Feeders
Model: SUNY-TPJ40

Product Advantages:

1. Optimized multi-functional conveyor (best positioning + no impact stopping), adopt a laser sensor rather than mechanical stopper to position. No rely on the PCB board size, shape, achieve the best positioning and no impact stop.

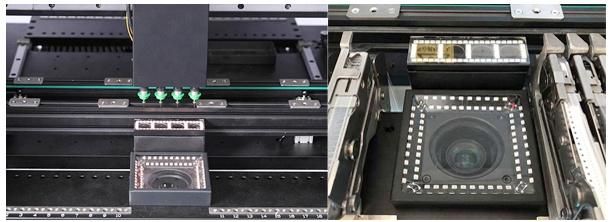

2. High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.

3. Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.

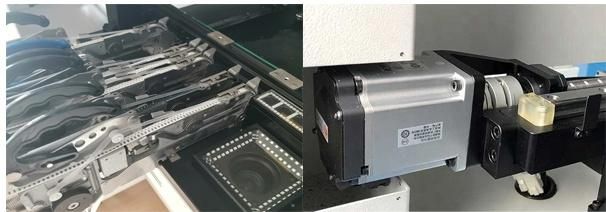

1.  Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide and ball screw, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

Application:

Application Area	Application Industry
Personal Entrepreneurship	Household Electrical Appliance Industry
Laboratory Proofing	Automotive Electronics
Mass Production	Power Drive
Processing of The third Party	LED Lighting
R&D Customization	Security Instruments and Meters
Scientific & Research	Intelligent Control
Efficient Teaching	Consumer Electronics
Military Industry	Logistics Network

Product Parameters:

1	Feeder No.	46 (Front 20, rear 26)
2	Nozzle Buffering Range	5.0mm
3	Power Supply	220V, 50Hz
4	Compressed Air	0.5-06Mpa
5	Max. Mounting Speed	8000CPH
6	Max. Circuit Board Area	480x300mm
7	Driving Motor	Panasonic servo motor
8	XYZ Drive Guide Rail	TBI High-precision heavy-duty straight-line guide rail
9	Recognition Method	4 heads recognize synchronously
10	Z Axis Max. Movement Range	20mm
11	Mounting Heads	4 (No need to change Nozzle)
12	Positioning Accuracy	0.01mm
13	Average Power	600W
14	Dimensions	1095x1165x1400mm
15	Average Mounting Speed	6000CPH (Visual)
16	XY Max. Movement Range	556x680mm
17	Motion Drive System	Panasonic High speed DPSdriver
18	X/Y Running Mode	Imported TBI high-precision ball screw + imported TBI heavy-duty linear guide
19	Placement Mode	Manual, semi-automatic, fully-automatic
20	Rail Guide Adjusting Method	Manual + Automatic
21	Belt Type Feeder	8/12/16/24/32mm feeders, stick feeder
22	Visual Display	15" industrial control display ratio 4:3, resolution 1024x768
23	Nozzle Vacuum Source	High-speed on-off vacuum generator with vacuum damage
24	Operating System	Support Windows XP, Win7 operating system
25	Alarm when open the cover	Reducing speed or out of service
26	Component Angle	0~360, synchronized rotation in motion
27	Board Input Method	Automatically connect loader and position PCB transmission
28	Programming Mode	Point-to-point programming, visual programming, PCB file coordinates inputting, etc.
29	Recognition Camera No.	1 Mark recognition camera, 4 high speed recognition camera, 1 high-precision recognition camera
30	Applicable Mounting Range:	Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 45mm*45mm range pin pitch ≥0.3mm QFP, BGA etc.
