• Model NO.：SUNY W3-F
• Type：High-speed Chip Mounter
• Quantity of Mounting Head：8
• Quantity of Cameras：Dual Flying Camera System
• Max. PCB Board Size：400*330mm
• Z Axis Max. Moving Range：12mm
• Power Supply：220V 50Hz
• Net Weight：About 1000kg
• Compressed Air Supply：0.5-0.6MPa
• Transport Package：Standard Export Package
• Trademark：SUNY
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SUNY W3-F Type High-speed Chip Mounter Quantity of Mounting Head 8 Quantity of Cameras Dual Flying Camera System Max. PCB Board Size 400*330mm Z Axis Max. Moving Range 12mm Power Supply 220V 50Hz Net Weight About 1000kg Compressed Air Supply 0.5-0.6MPa Transport Package Standard Export Package Trademark SUNY Origin Hunan China Production Capacity 500PCS/Month

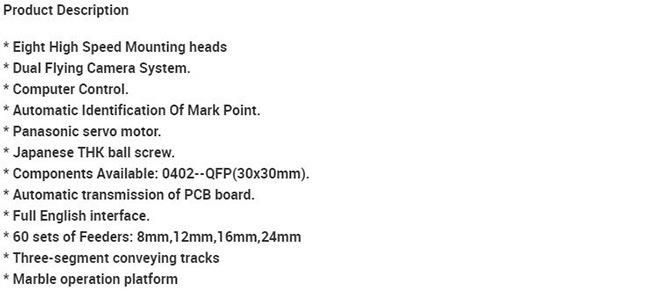

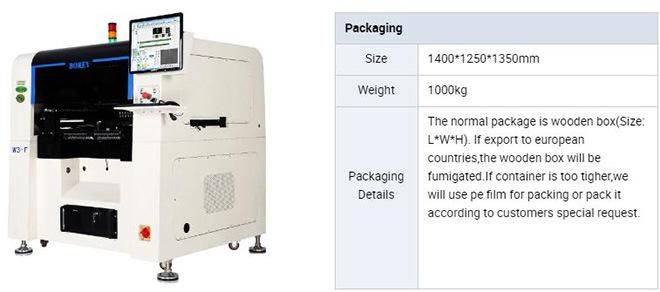

Product Description

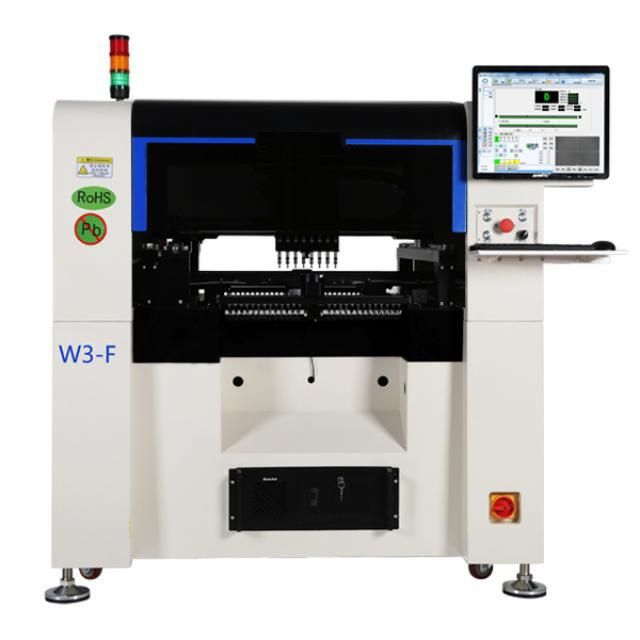

Item:8 Heads LED Chip Mounter Machine SMT Pick and Place Machine
Model: SUNY W3-F

Product Feature:
Y axis double-drive guider to improve the mounting accuracy.
X axis:using Aluminum magnesium alloy ruler for main body of X axis to prevent deformation,compare with standard aluminium, weight of new material only 35% of standard aluminium, and strength is three times as much as standard aluminium, it maximize the transmission performance of servo motor and ball screw.
Z axis: Eight heads increase the feeding and mounting speed by one-to-one independent head,production efficiency improve approximately 25%. Eight head one-time pick up technology can set up parameter independently according to height difference between components.
Using double-drive guider(return to zero) for transmission system, in accordance with project file to adjust width automatically, only need to enter the parameter of PCB boards, the conveying track will adjust width automatically.
Using marble operation platform to guarantee mechanical stability and prevent deformation.
Front and rear dual-LCD display is easy for operation

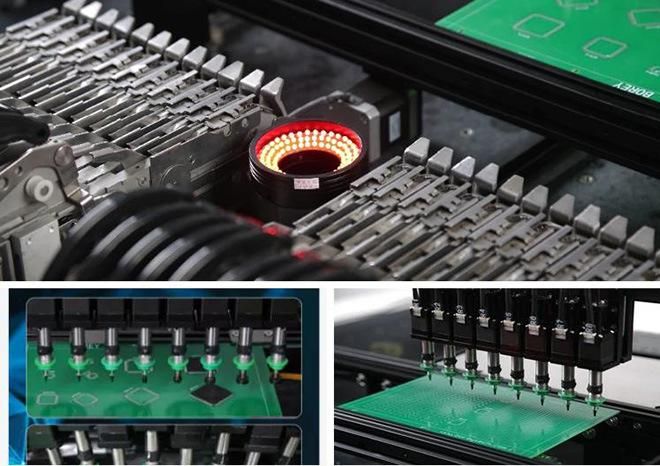

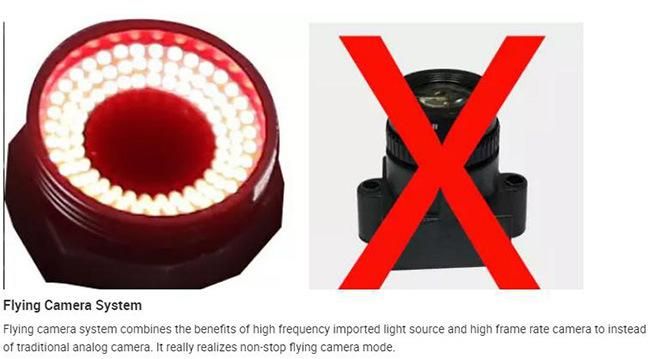

Flying camera system to realize non-stop identification.
72 feeders for dual flying camera system,76 feeders for front flying camera system.
3mm process side for board loader connection
Optimize 8 mounting heads and independent control in accordance with materials

Product Parameters:


Quantity of Mounting Head	8 (independent mounting head)
Quantity of Cameras	Flying Camera Identification System (pioneer in Chinese SMT industry)(Flying camera +MARK camera)
Max. PCB Board Size	480*330mm
Z Axis Max. Moving Range	12mm
Quantity of Feeders Available	76 sets of 8mm Tape Feeders (Front flying camera system) 72 set of 8mm Tape feeders( Dual flying camera system)
Max. Theoretical Mounting Speed	13000CHP
Average Theoretical Mounting Speed	10000CHP
Positioning Accuracy	0.01mm
Resetting Accuracy	±0.03mm
Buffering Range of Suction Nozzle	4mm

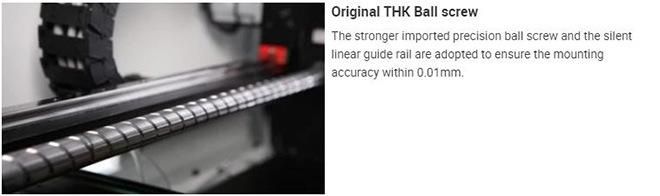

Motion Driving System	Servo Control System +THK Ball Screw

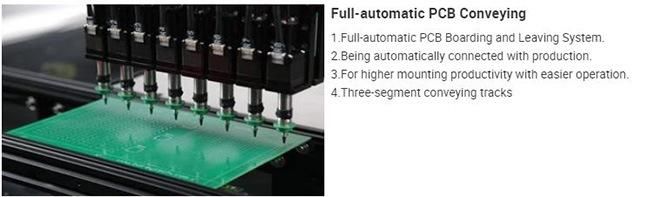

PCB Boarding Mode	on-line automatic boarding,automatically adjust width of conveying track  according to project file
Component Rotational Angle	0-360°, synchronous rotation
Operating System	Windows XP, Win7 operating system

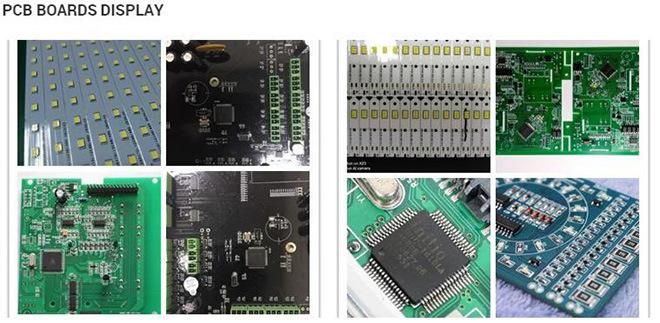

Components Available	0402, 0603, 0805 RC Components, Diode, Triode, SOT, TSOP, SOP and PLCC, CSP, QFP, BGA(35*35mm)with line spacing at 0.3mm, etc.

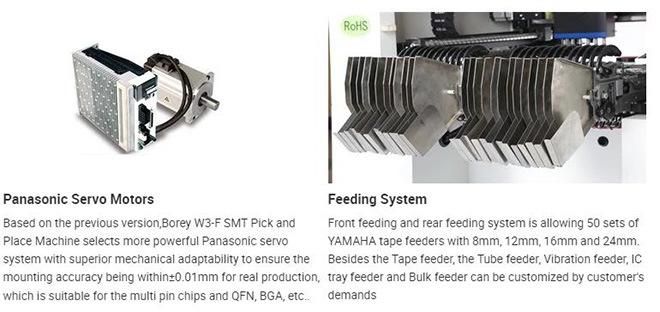

Motors	Panasonic Servo system
Visual Display	Industrial Control Display(Front and rear LCD display) (Proportion: 4:3; Resolution: 1280*1024)
X/Y Motion Mode	2 axes simultaneous motion
Average Power	1000W
Power Supply	220V 50HZ
Programming Mode	able to import file format, like: Pick place file, Protel file, and import coordinates point by point.
Net Weight	About 850KG
Compressed Air Supply	0.5-0.6Mpa
Overall Dimension	1630*1350*1450mm
