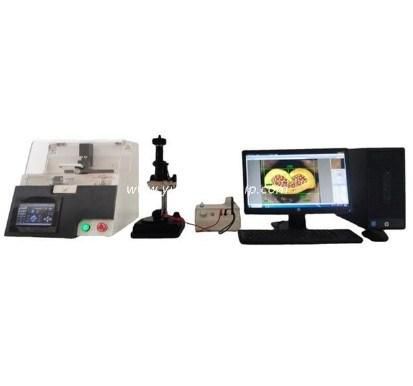

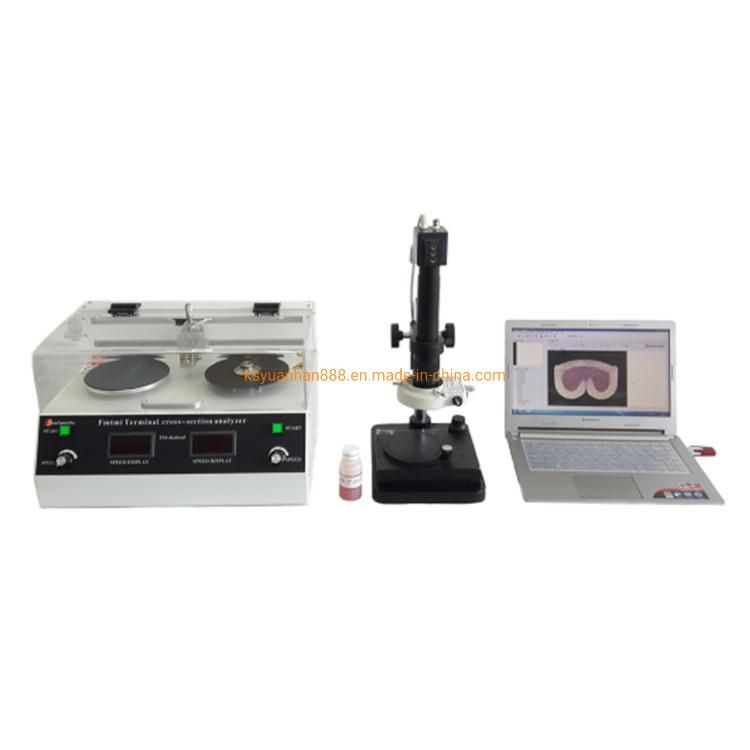

Terminal Crimping Cross Section Analysis

Kunshan Yuanhan Electronic Equipment Co., Ltd.

After-sales Service：All Life
Driven Type：Electric
Condition：New
Certification：RoHS, ISO, CE
Warranty：24 Months
Automatic Grade：Automatic

Base Info

Model NO.：YH-SE4
Model：Yh-Se3
Module Cut Range：30.13 ~6.00 mm2
Z-Axis Slightly Tuning Range：0.00~5.00 mm
Special Sandpaper Od：100 mm
Eclipse Partial Electrolysis：up to 6 mm2
Electrolysis Time：5~30 Sec
Observation Range：1.2~8.2 mm
Range：+,- 6 mm
Weight：30kg
Dimensions：49X 34 X 34 Cm
Transport Package：Double-Layer Export Carton
Specification：390*350*255mm
Trademark：yuanhan
Origin：China
HS Code：8479819000

Description

5~30 sec

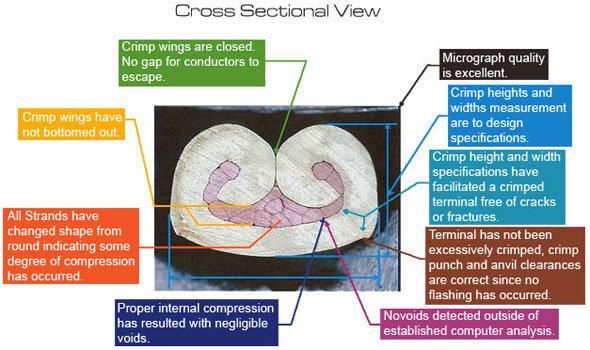

Terminal Crimping Cross Section Analysis

Terminal Crimping Cross Section Analysis
